ND46
Dynamic supercardioid instrument microphone
- Excellent isolation
With lively and balanced sound - Large-diaphragm dynamic capsule
Creates a rich and detailed frequency response - Easy mic placement with locking pivoting head
Achieve ideal mic placement in virtually any situation by pushing a button, pivoting the head into position and releasing the button to lock - Shock-mounted capsule minimizes handling noise
Low frequency bumps and thumps won’t get into the PA - Humbucking coil guards against line hum
Use with confidence near speaker cabinets and EMF-generating equipment racks - Memraflex grille resists denting
Durable tight-mesh grilles withstand extraordinarily rough treatment

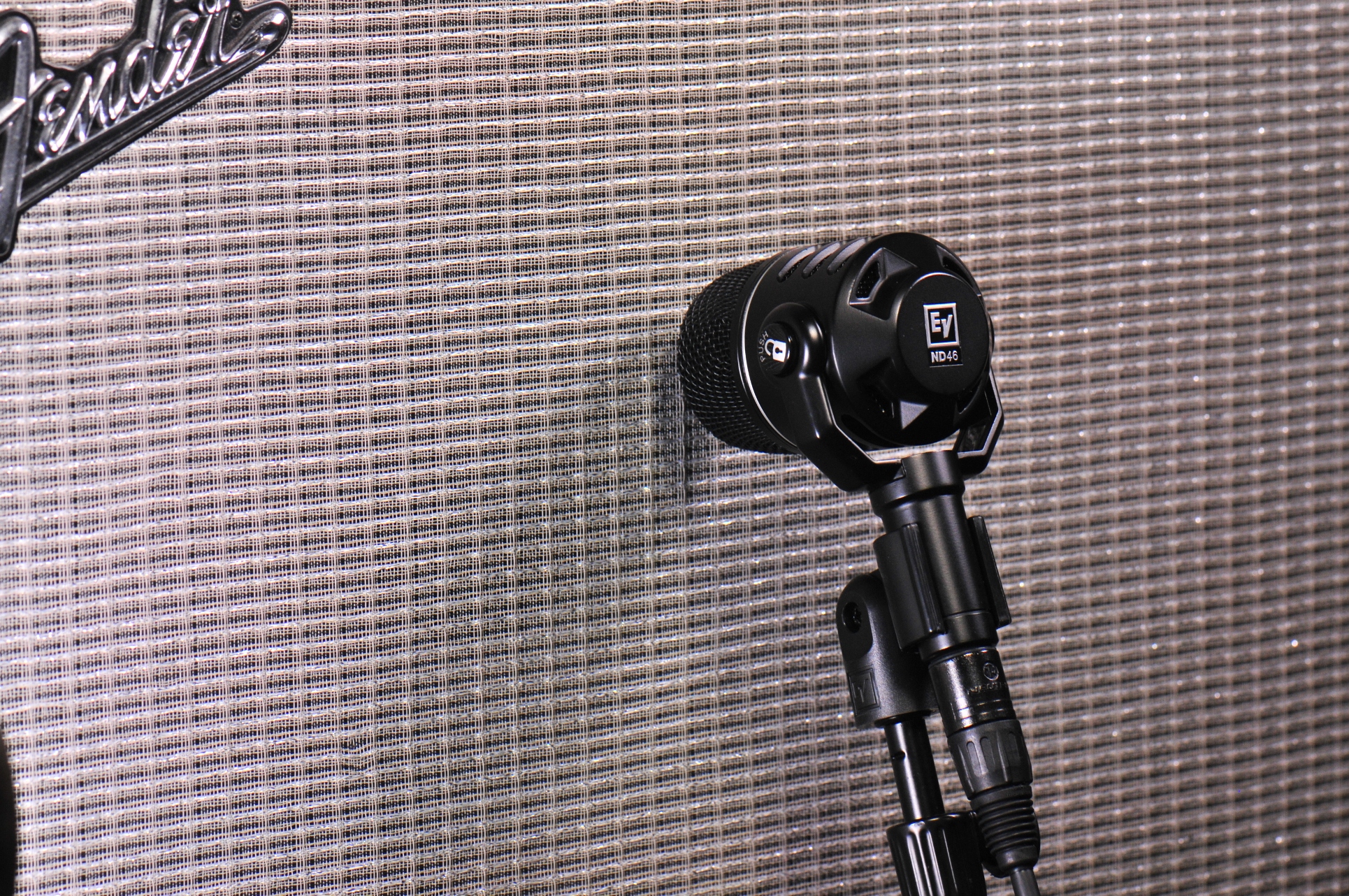

The ND46 is a robust, high-performance, large-diaphragm dynamic supercardioid instrument microphone. Designed for capturing a wide of variety instrument sounds, the ND46 capsule is precisely tuned to deliver a lively and balanced sound, as well as excellent isolation from the sound of other nearby instruments, and its unique locking pivoting head makes mic placement easy and precise.
Technische Daten
| Connector Type | 3-pin XLR |
| Height | 144.1mm (5.67") |
| Weight Net | 10.9oz (309g) |
Technische Daten |
|
| Shipping Weight | 20.6oz (584g) |
| Family | ND Series |
| Impedance, Low-Z balanced | 350Ω |
| Open Circuit Voltage | 2.4mV/Pascal |
| Case Material | Die cast zinc |
| Finish | Black polyurethane paint |
| Power Requirement | Passive |
| Audio Frequency Response | 70 – 18,000 |
| Maximum SPL | > 140dB |
| Polar Pattern | Supercardioid |
| Wired/Wireless | Wired |
| Mic Type | Instrument |
| Diameter (Max) | 56mm (2.2") |
| Element | Dynamic |
