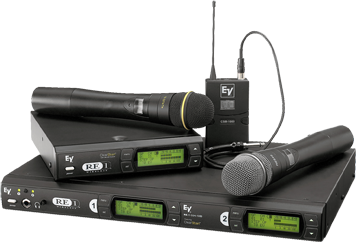

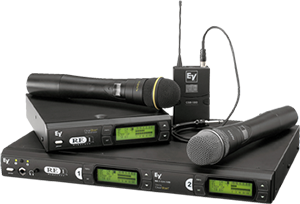

The CDR-1000 includes all the great features of the CSR-1000 single receiver, like Advanced ClearScan, but also some very unique exceptions. The CDR-1000 has antenna pass through connections that allow a user to connect three duals (six receivers) to two antennas. All that, and the cables are included with each unit. No extra distribution unit or parts required. The CDR-1000 also has an IEC Cord internal switching power supply.
Specifications
| Connector Type | ¼" unbalanced, 3-pin XLR, USB Type B |
| Height | 43.7 |
| Width | 406.4 |
| Depth | 305 |
| Case Material | Steel |
| Power Requirement | 90 - 260 VAC 50 - 60 Hz |
Specifications | |
| Controls | On/Off, Menu, Set, Up, Down, Audio Output, Mic/Line, Headset channel and volume |
| Antennas | External ½ wave detachable |
| Number of Channels | 950 possible (programmable in 25 kHz steps) per band |
| Diversity | DSP SecurePhase True Diversity |
| Squelch | Tone Code plus Amplitude |
| FCC Type Acceptance | Approved under Part 15 |
| Audio Frequency Response | 30 Hz - 15 kHz ±2 dB |
| Balanced Line Level Output (RMS Adjustable) | 10 - 100 |
| Antenna Output | TNC Left and Right |
| Powerered Antenna Inputs | 12 VDC Phantom |
| USB Monitoring & Contol | RE-OneLink Software |
| Displays | Group/Channel, Frequency, Label, Diversity, AF meter, RF Meter |
