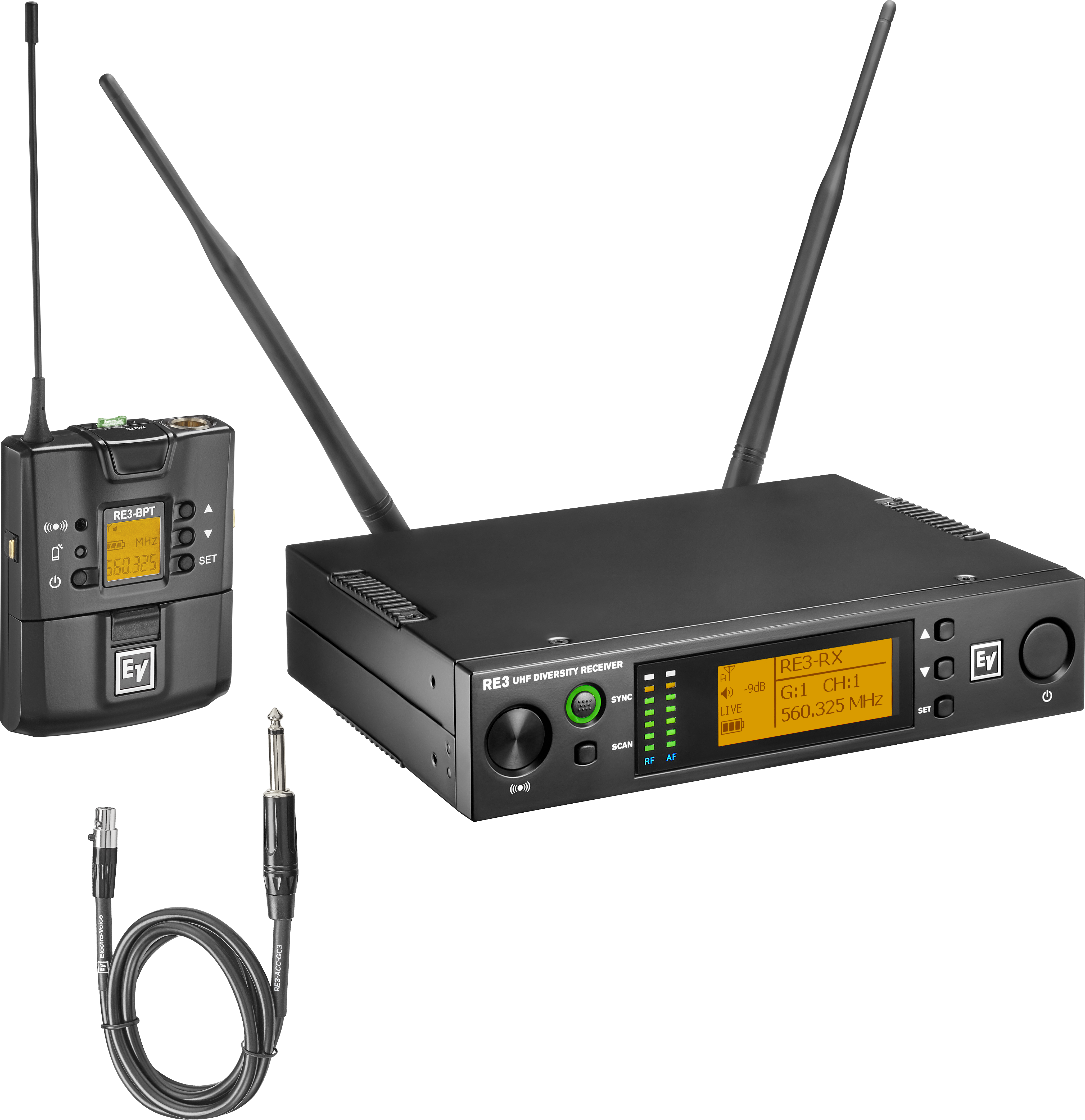

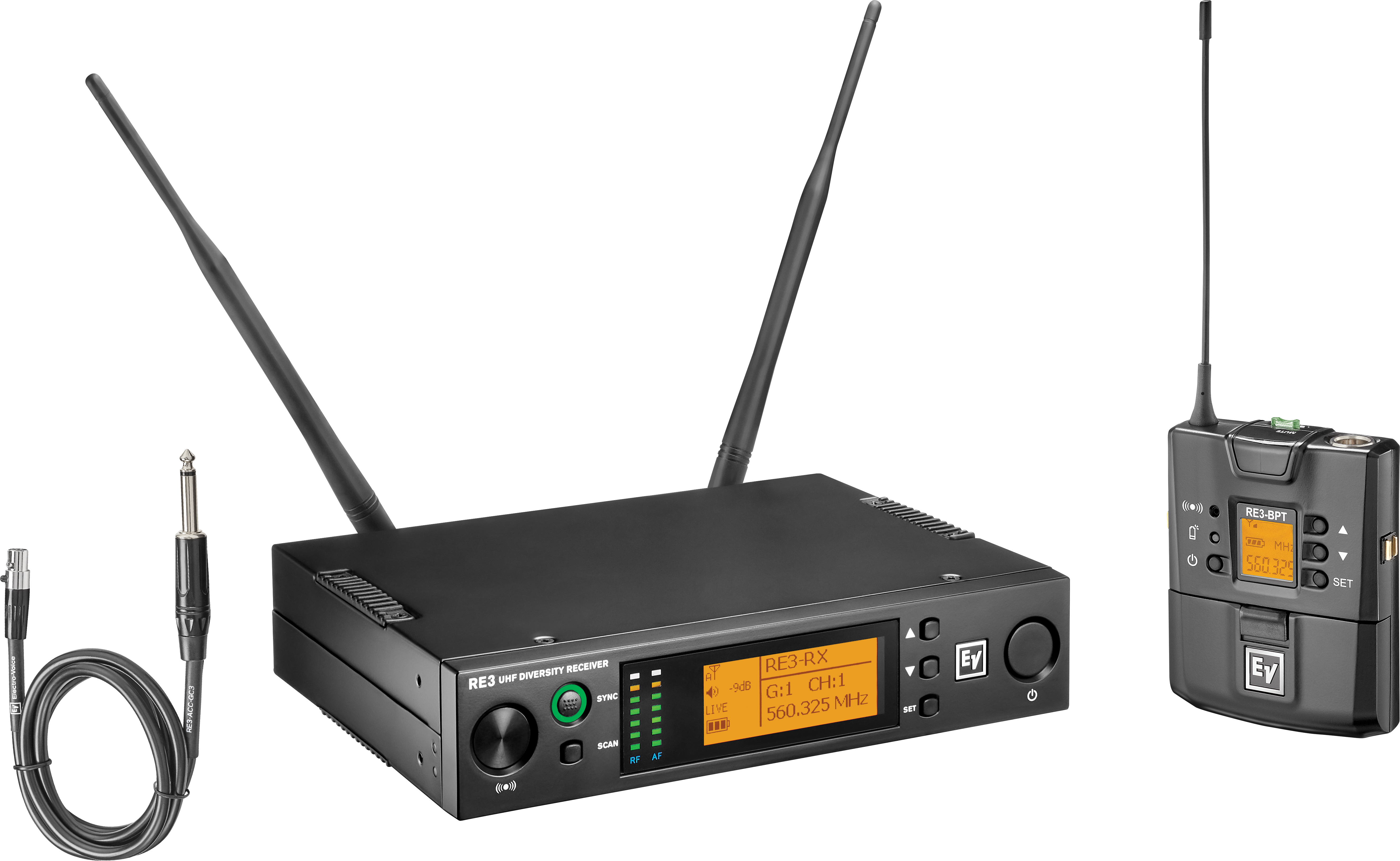

RE3-BPGC
UHF wireless set featuring the GC3 instrument cable
Bodypack UHF wireless set featuring the GC3 instrument cable for wireless music performance. The GC3 is a special purpose cable for connecting instruments or line level signal sources with ¼” output jacks to the RE3-BPT bodypack transmitter.
Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust bodypack transmitter and diversity receiver delivers rock-solid system performance.
Components of the set:
- Robust cable connects instrument to RE3-BPT
- Easy-to-grip ¼” plug
- 4-pin mini plug adapts to other EV bodypack transmitters
- Robust metal body
- Sync function for easy frequency setup
- Selectable low and high output power (band specific)
- Up to 36 MHz tuning bandwidth (band specific)
- Unique magnetic latch and lock for easy access to batteries
- Diversity reception minimizes dropouts
- Frequency scanning for selecting open frequencies
- Sync function links transmitter to receiver for easy setup
- Up to 36 MHz tuning bandwidth (band specific) for trouble-free operation
- Easy-to-read LCD display
Set contains:
- Two receiver antennas
- Universal power supply
- Two AA batteries
- Receiver rack mounting hardware
- Owner’s manual
- Documentation packet
- Declaration of conformity
| BAND DETAILS | |||||
| Band name | 5L | 5H | 6M | 8M | T |
| Bandwidth limits (MHz) | 488 – 524 | 560 – 596 | 653 – 663 | 823 – 832 863 – 865 | 803 - 806 |
| Tuning bandwidth | 36 MHz | 36 MHz | 10 MHz | 11 MHz | 3 MHz |
| Selectable frequencies | 1440 | 1440 | 400 | 440 | 120 |
| Transmit output power (mW) | 10 and 50 | 10 and 50 | 10 and 20 | 10 | 10 and 50 |
| Coverage | Global | Global | Global | Select Europe | Thailand only |
