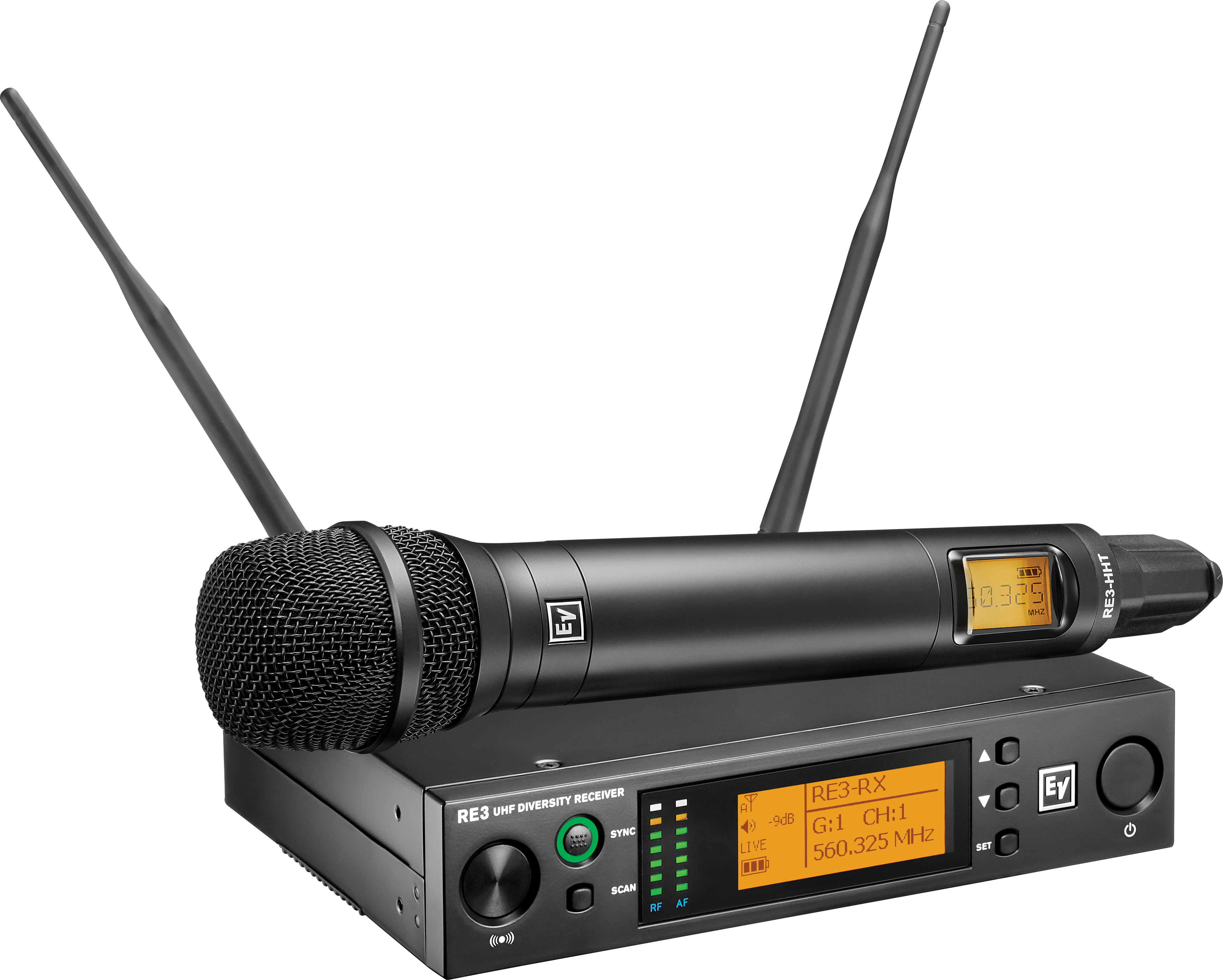

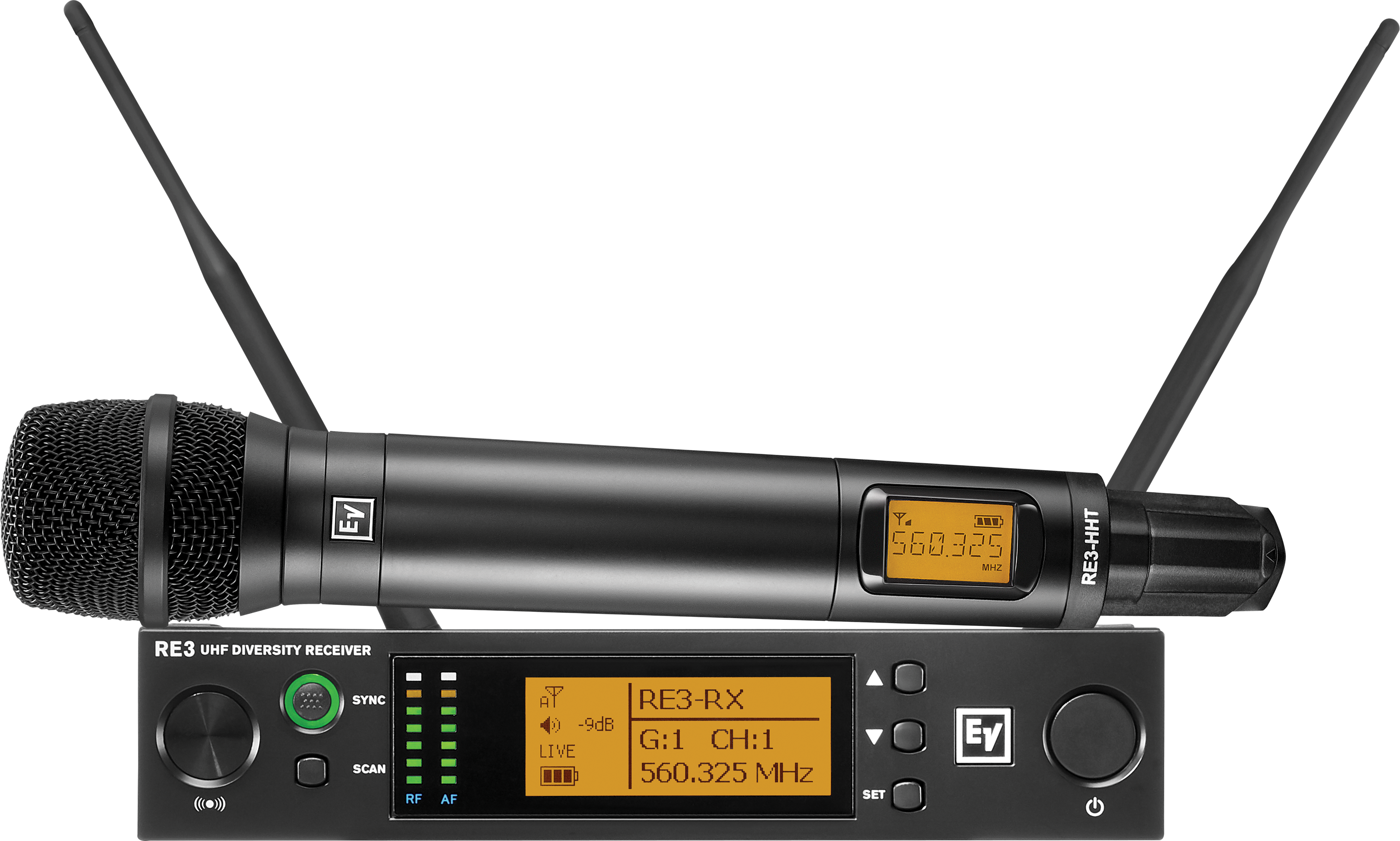

RE3-RE420
UHF wireless set featuring RE420 condenser cardioid microphone
Handheld UHF wireless set featuring RE420 condenser cardioid microphone head for vocal performance and presentations. The RE420’s sound is rich, detailed and full-bodied, with a warm and clear low-end, natural and open midrange, and a clear, crisp, and detailed high end.
Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust handheld transmitter and diversity receiver delivers rock-solid system performance.
Components of the set:
RE420-RC3 Wireless Head with RE420 Capsule
- Thread-on microphone head for Electro-Voice handheld transmitters (compatible with many other brand's handheld transmitters)
- Premium condenser element delivers a warm low-end, open mid-range, and clear high-end sonic signature
- Cardioid polar pattern provides excellent acoustic isolation with a comfortable working range
- Multi-stage pop filter minimizes breath blasts and plosives
- Selectable high-pass filter reduces undesirable low frequency content when engaged
- Learn more
- Robust metal body
- Sync function for easy frequency setup
- Selectable low and high output power (band specific)
- Up to 36 MHz tuning bandwidth (band specific)
- Common threaded coupling allows microphone head interchangeable
- Learn more
- Diversity reception minimizes dropouts
- Frequency scanning for selecting open frequencies
- Sync function links transmitter to receiver for easy setup
- Up to 36 MHz tuning bandwidth (band specific) for trouble-free operation
- Easy-to-read LCD display
- Learn more
Microphone stand adapter
Two receiver antennas
Universal power supply
Two AA batteries
Receiver rack mounting hardware
Owner’s manual
Documentation packet
Declaration of conformity
Two receiver antennas
Universal power supply
Two AA batteries
Receiver rack mounting hardware
Owner’s manual
Documentation packet
Declaration of conformity
| BAND DETAILS | |||||
| Band name | 5L | 5H | 6M | 8M | T |
| Bandwidth limits (MHz) | 488 – 524 | 560 – 596 | 653 – 663 | 823 – 832 863 – 865 | 803 - 806 |
| Tuning bandwidth | 36 MHz | 36 MHz | 10 MHz | 11 MHz | 3 MHz |
| Selectable frequencies | 1440 | 1440 | 400 | 440 | 120 |
| Transmit output power (mW) | 10 and 50 | 10 and 50 | 10 and 20 | 10 | 10 and 50 |
| Coverage | Global | Global | Global | Select Europe | Thailand only |
