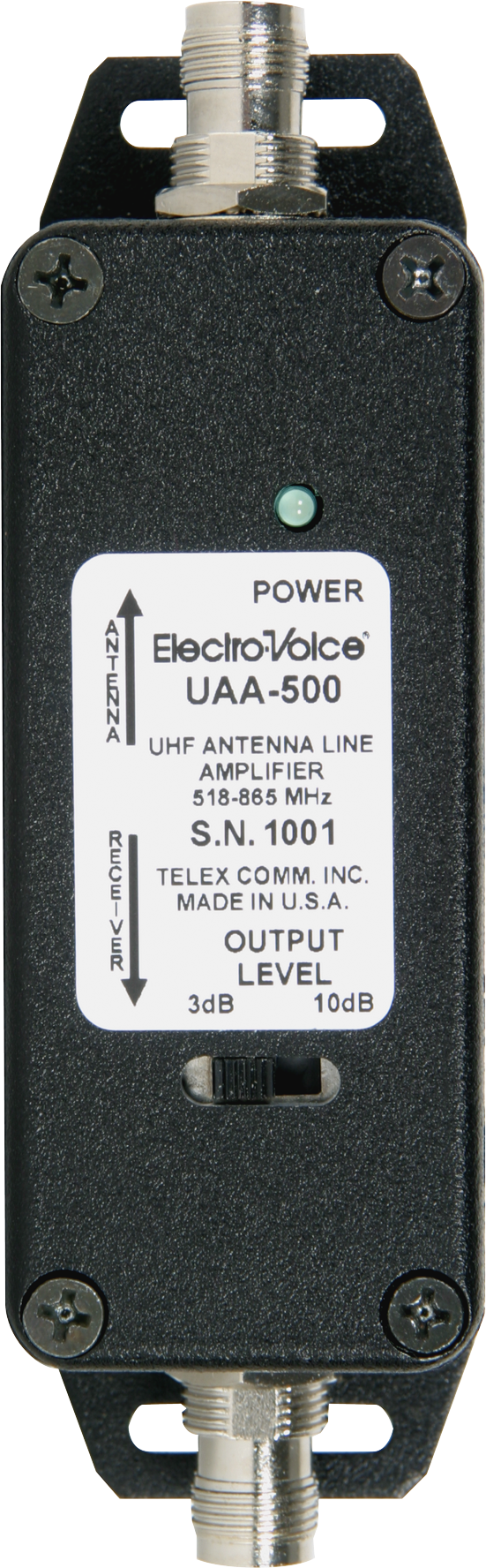

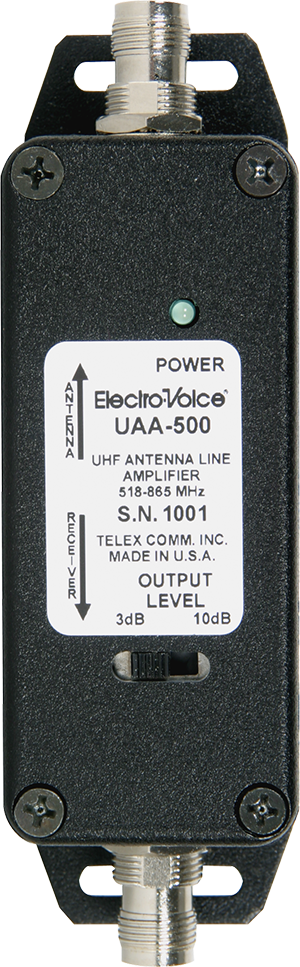

UAA-500
Antenna signal amplifier
- 3 or 10dB selectable gain
- Green LED to indicate power
- Requires phantom power from APD4+ or REV receiver
- Wideband 500 – 900 MHz operating range
- Cast aluminum case with mounting tabs
The UAA-500 is a broadband UHF amplifier with selectable 3dB and 10dB amplification settings. Antenna signal amplifiers are used to make up for losses in the cable run, they do not extend the operating range of the wireless microphone.
Specifications
| Connector Type | TNC Female |
| Height | 119mm (4.69") |
| Width | 38mm (1.5") |
Specifications |
|
| Depth | 32mm (1.26") |
| Case Material | Cast Aluminum |
| RF Frequency Range | 500-900MHz |
| Operating Voltage | 12VDC |
| Operating Current | 65mA typical |
| RF Signal Gain | 3 or 10dB |
| Third Order Intermod | 30dBm |
