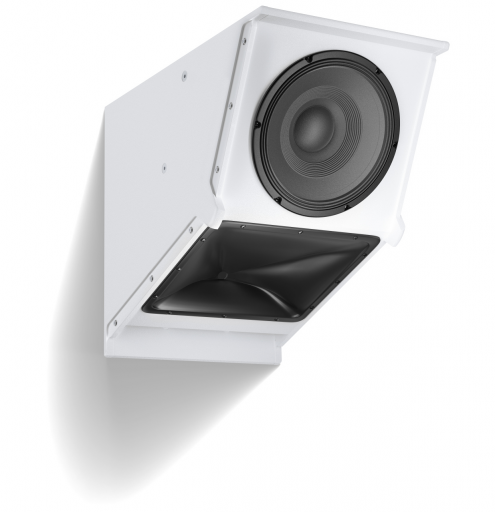

EVC-1122-VI
12インチのスピーカー、バリエーション豊かな室内
- 非対称ホーン付き12インチ2ウェイラウドスピーカーは、定義された矩形領域を均一にカバーします 定格電力：300 W連続、（1200 Wピーク） オプションの高品質トランスおよび特許取得済み自...
Electro-VoiceのEVCスピーカーは、幅広い帯域幅、垂直および水平の指向性制御、および高効率がコンパクトでコスト効率の高いパッケージで必要とされる幅広いアプリケーションで使用できる...
Specifications
| Max Calculated SPL | 126dB |
| Frequency Range (-10 dB) | 50Hz-25kHz |
| Suspension | eight M10 Suspension Points, optional U Bracket or pan/tilt wall mount |
Specifications |
|
| Minimum Impedance | 7Ω |
| Frequency Response (-3 dB)¹ | 70Hz-20kHz |
| Weight Net | 21.8kg (48.06 lbs) |
| Shipping Weight | 24.4kg (53.79 lbs) |
| Axial Sensitivity (SPL, 1 W @ 1 m) | 95dB |
| Power Handling (Continuous / Peak) | 300/600/1200 W |
| LF Transducer | EVS-12M |
| HF Transducer | DH-3 |
| Connectors | Dual four-pin 10 AWG (6 mm) Phoenix/Euro Block screw-terminals |
| Enclosure | 15mm weather-resistant plywood with EV Coat |
| Color | Black or white |
| Grille | 18 GA cold-rolled steel with rotatable logo (18 GA stainless steel with hydrophobic cloth on PI models) |
| Dimensions (H x W x D) | 528 x 411 x 648mm |
| Passive crossover frequency | 1.6kHz |
| Rec. high-pass frequency, 4th Order | 45 Hz for 8Ω (50 Hz with TK-150 transformer) |
| Environmental Specs | IEC 60529, IP44 (IP55 for PI versions) |
| Nominal Impedance | 8Ω |
