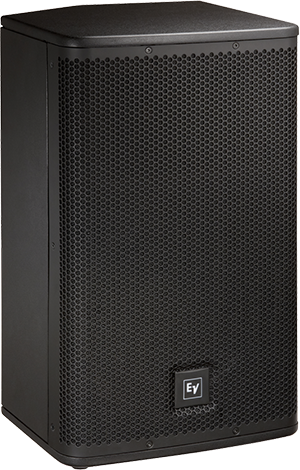

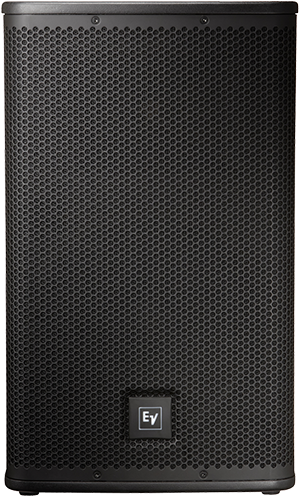

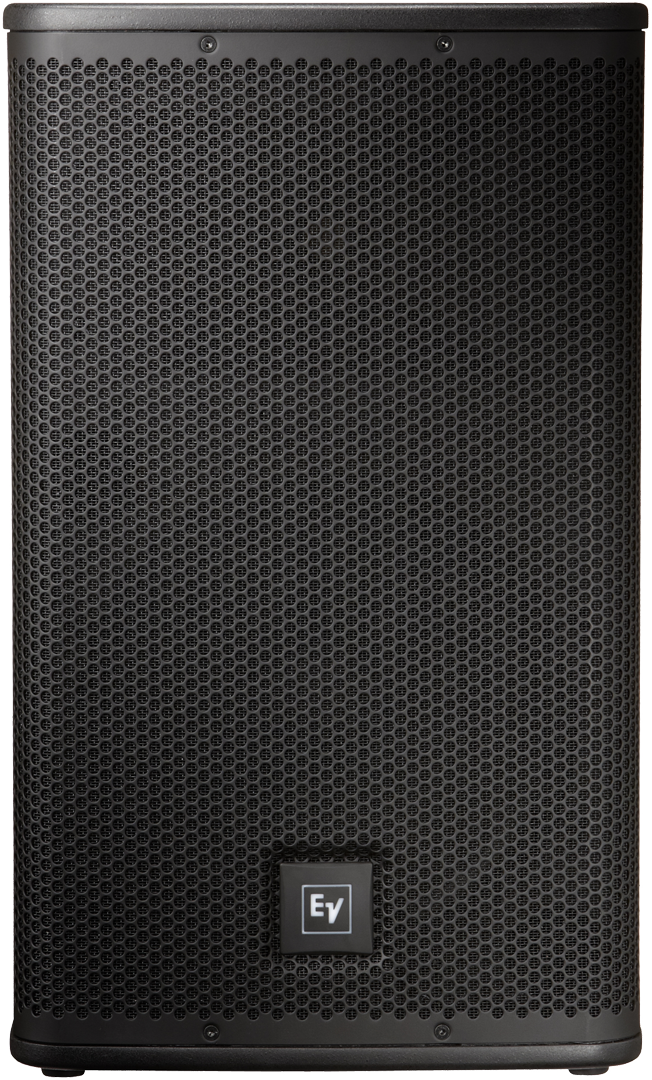

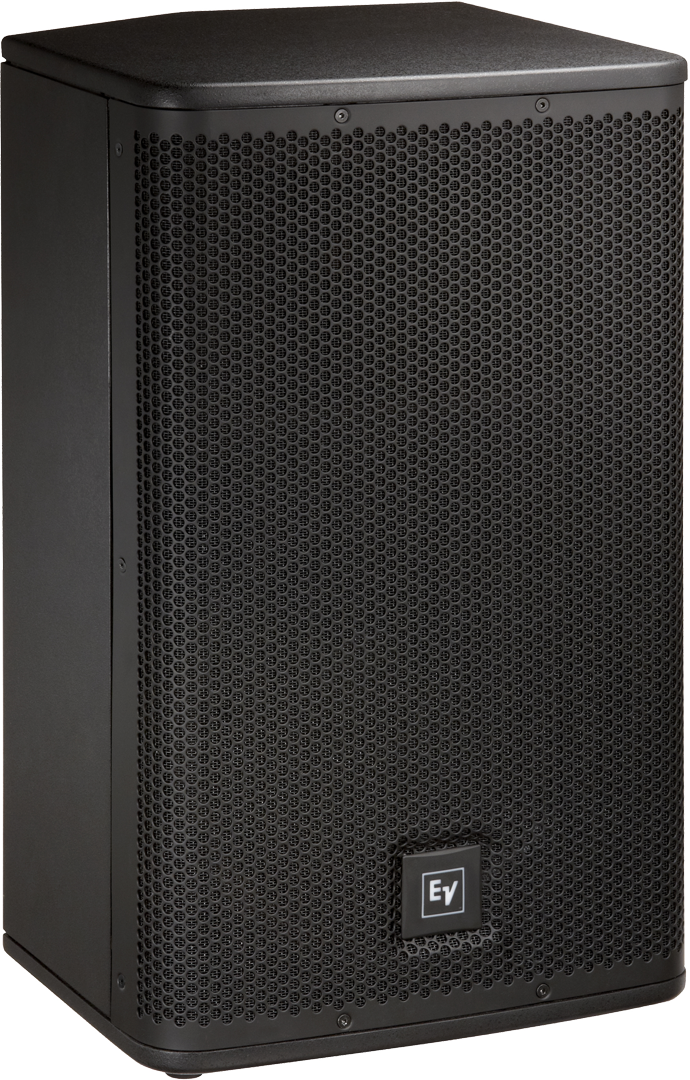

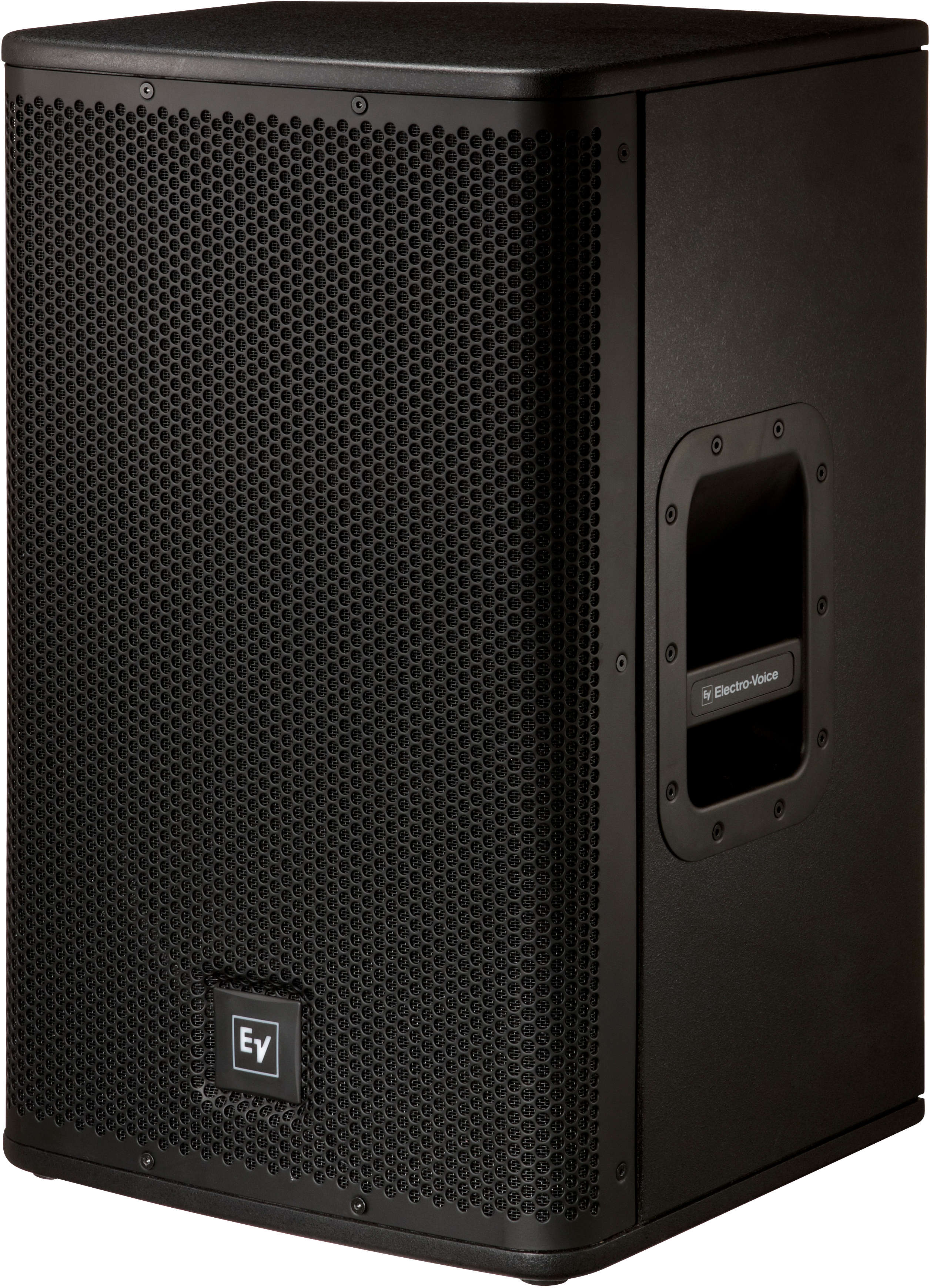

ELX112
Altifalante passivo bidireccional de 12 polegadas

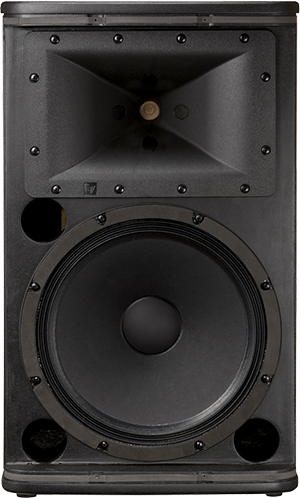

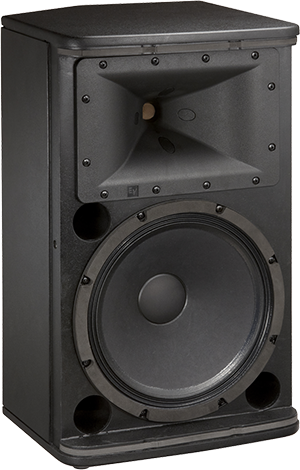

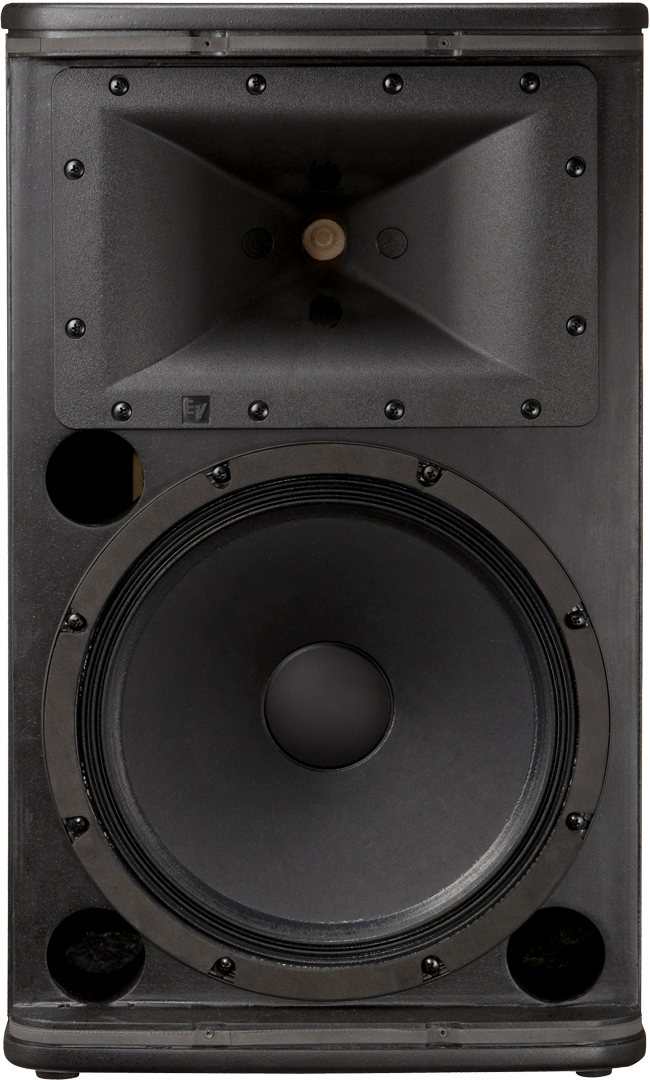

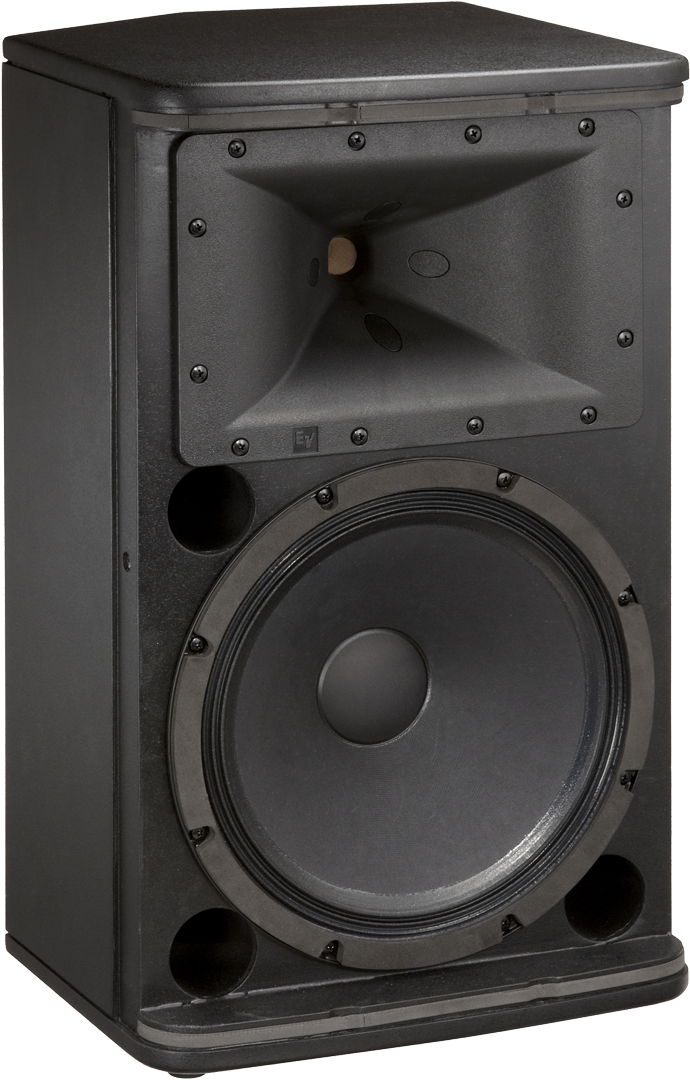

- Woofer de 12 polegadas e altifalante de compressão de alta frequência em titânio de 1,5 polegadas Gama de frequências 55 Hz – 20 kHz Sensibilidade SPL 94 dB; SPL máx. 132 dBProcessamento de potência contínuo de 250 W e pico de 1000 WCaixa de madeira robusta — montagem em poste ou empilhada com subwoofers Live X

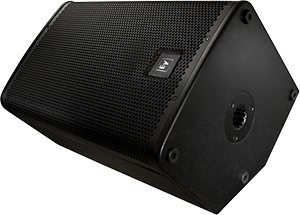

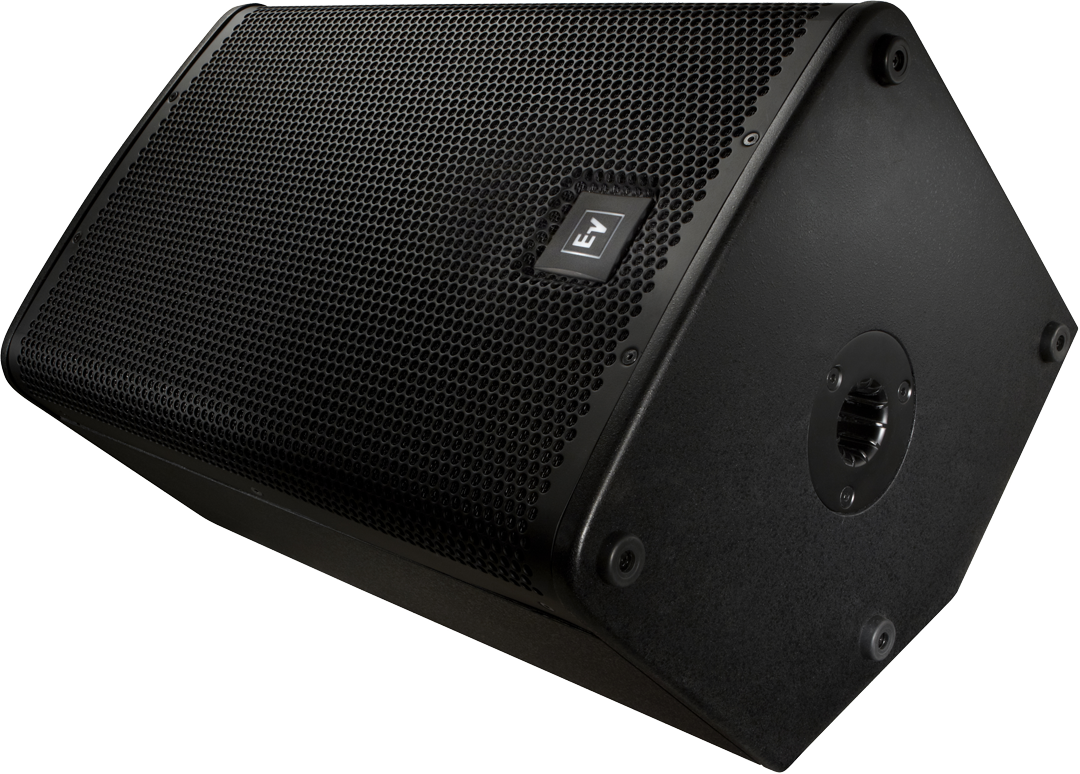

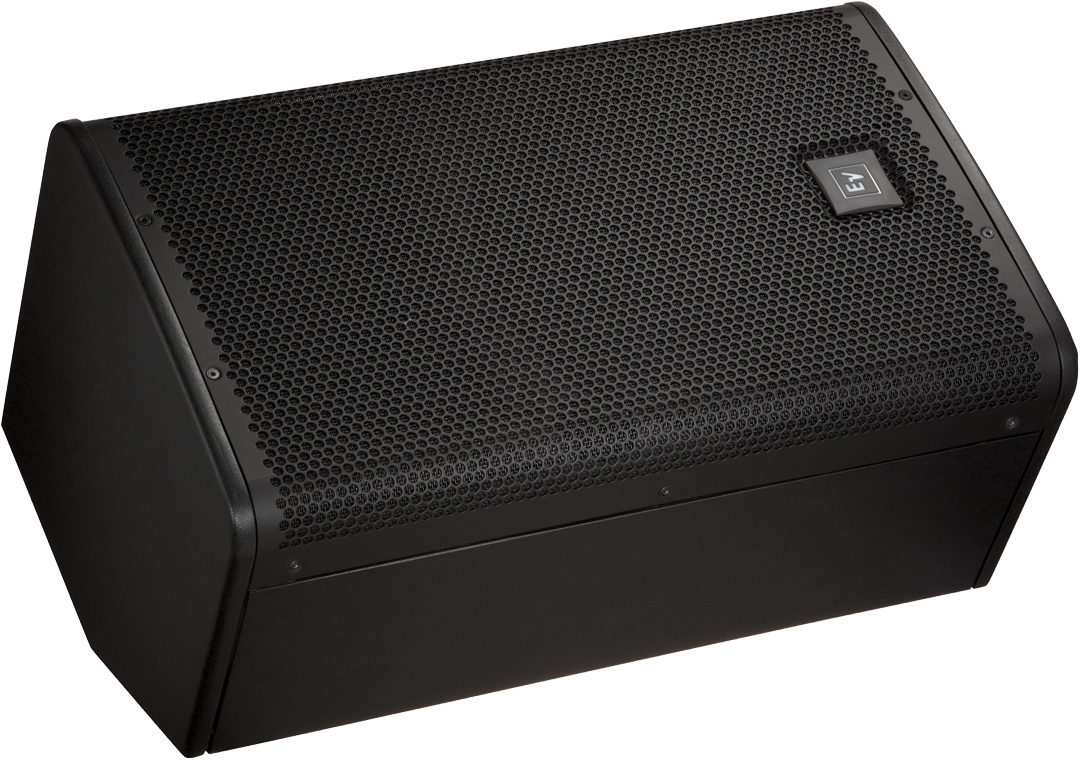

O altifalante versátil ELX112 é uma escolha compacta e potente com uma verdadeira presença de palco, para aplicações de reforço de som e de monitorização de palco.
Specifications
| Frequency Range (-10 dB) | 55 - 20000kHz |
| Minimum Impedance | 7.0Ω |
| Nominal Impedance (Passive) | 8Ω |
Specifications |
|
| HF Transducer | DH-1K, 39mm (1.5") Titanium Diaphragm Compression Driver |
| Speaker Type | Full-Range, two-way, wedges |
| Woofer Size | 12inch |
| Powered or Passive | Passive |
| Frequency Response (-3 dB)¹ | 82 - 18000Hz |
| Max. SPL/1m (calc)² | 132dB (Half Space) |
| Coverage (Nominal -6 dB) H | 90° |
| Coverage (Nominal -6 dB) V | 50° |
| LF Transducer | (1) EVS-12K, 305mm (12") Woofer |
| System Power Handling (Continuous/Program/Peak) | 250//1000Watts |
| Crossover Frequency | 21000Hz |

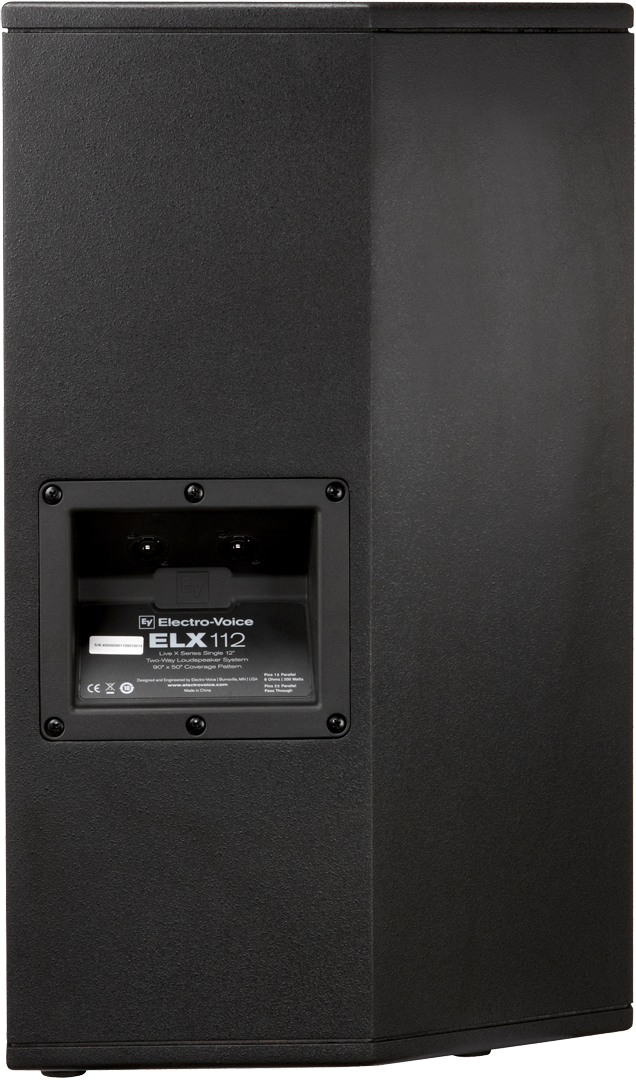

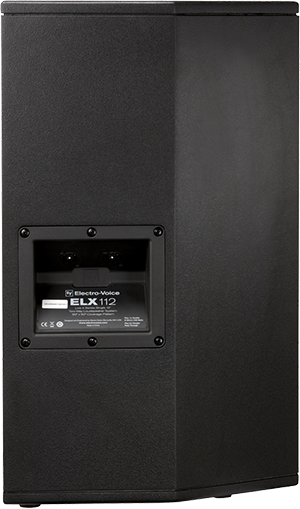

| Connector Type | Parallel Neutrik® NL4 |
| Enclosure Material | 9-ply plywood |
| Grille | 18GA Steel with Black Powdercoat |
| Available Color | Black |
| Height | 607mm (23.9") |
| Width | 362mm (14.25") |
| Recommended High-Pass Frequency | 45Hz |
| Depth | 340mm (13.39") |
| Internal Crossover | Yes |
| Weight Net | 16kg (35.27 lbs) |
| Family | ELX |
| Case Material | 9-ply, 15mm Plywood, Internally Braced, with Textured Paint |
| Axial Sensitivity (SPL, 1 W @ 1 m) | 94dB |
Videos
ELX Loudspeaker Overview
Electro-Voice at NAMM 2012
Live X Loudspeakers
In Search of Excellent Audio & Video
Recommended Amplifiersffs
For optimal sound system performance, Electro-Voice recommends the following amplifiers for ELX112.
Dynacord C‑SeriesLearn More |
Dynacord L‑SeriesLearn More |
|
|---|---|---|
| Two-Channel | ✔ | ✔ |
| Multi-Channel | ||
| DSP | ✔ | ✔ |
| Direct Drive | ✔ | ✔ |
| OMNEO (Dante, OCA) | ||
| Installation | ✔ | |
| Live Sound | ✔ |
