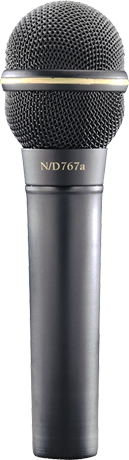

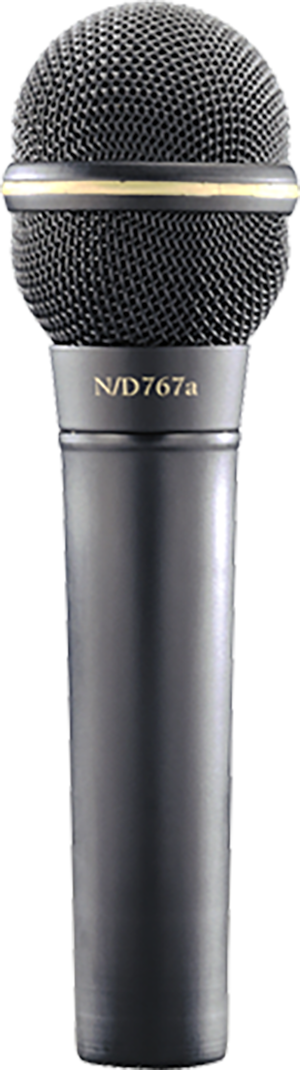

N/D767a
Premium dynamic vocal microphone
- Top-class vocal microphone
- Multi-stage shock mount
- Dynamic, high-sensitivity neodymium element
- Tight-mesh Memraflex grille
- Condenser-like performance
- VOB technology
- Supercardioid polar pattern
The N/D767a is the singer and engineer’s first choice for outstanding vocal clarity in live performance. With low handling noise, VOB technology, and excellent clarity through all frequencies, the N/D767a is the top-choice dynamic mic in its class.
Specifications
| Connector Type | 3-pin XLR |
| Height | 181mm (7.13") |
| Weight Net | 9.17oz (260g) |
Specifications |
|
| Open Circuit Voltage | 3.1mV/Pascal |
| Case Material | Metal |
| Finish | Non-reflecting Black |
| Power Requirement | Passive |
| Audio Frequency Response | 35 - 22,000 Hz |
| Polar Pattern | Supercardioid |
| Wired/Wireless | Wired |
| Mic Type | Handheld |
| Diameter (Max) | 52mm (2.05") |
| Element | Dynamic |
| Impedance, Low-Z balanced | 300Ω |
Downloads
Technical Documentations
Engineering Data Sheet
| Name | Language & Download |
|---|---|
| N/D767a Engineering Data Sheet | EN |
Manual
| Name | Language & Download |
|---|---|
| N/D767a User Manual | EN |
Service Policies
| Name | Language & Download |
|---|---|
| Service Policies for Asia/Pacific Rim | EN |
White Paper
| Name | Language & Download |
|---|---|
| Audio 101 - Basic Audio Terminology | EN |
| Audio 101 - Loudspeaker Basics | EN |
| Audio 101 - Microphone Basics | EN |
| Microphone Facts- The New Model 666R Joins the 666 Family | EN |
| PA Bible 03: Microphone Types | EN |
| PA Bible 08: Microphone Techniques | EN |
| PA Bible 15: Barrier Miking | EN |
| The EV PA Bible | EN |
| The PA Bible Chapter Zero | EN |
