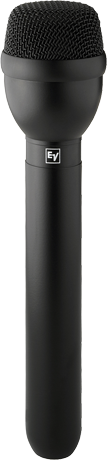

The RE50B is the industry standard for handheld interview mics in broadcast television production. Used on interviews with everyone from the President of the United States to the family next door, the RE50B is heard and seen in the reporting of news correspondents around the globe.
Specifications
Connector Type | 3-pin XLR |
Height | 197 |
Frequency Response (-3 dB) | 80 - 13,000 Hz |
Weight Net | 0.269 |
Family | RE Series Broadcast |
Polar Pattern | Omni |
Specifications |
Mic Type | Handheld |
Diameter (Max) | 49 |
Element | Dynamic |
Impedance, Low-Z balanced | 150 |
Open Circuit Voltage | 1.6 |
Case Material | Aluminum |
Finish | Semi-Gloss Camera Black |
Power Requirement | Passive |
Speech |
