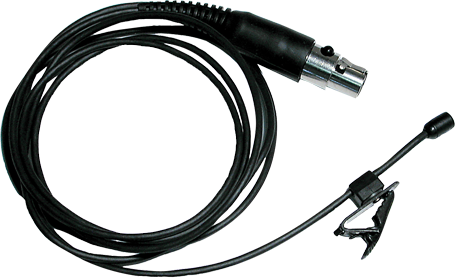

RE90Tx

Omni‑directional lavalier microphone

  • Ultra-miniature lavalier (Diameter 0.2”)
  • Back-electret condenser element
  • Omnidirectional polar pattern
  • Integrated 6-foot (180cm) cable
  • TA4F connector is compatible  with all EV bodypack transmitters
  • Use with TXA for wired XLR applications

The RE90Tx is a lightweight high-performance omni-directional lavalier microphone. Terminated with a TA4F connector for any EV wireless system, the RE90Tx is perfect for broadcast, house of worship, and business applications.

Specifications

Connector TypeTA4F
Maximum SPL (1% THD)130
Height8.3
Weight Net33.5
Mic TypeLavalier
Diameter (Max)5
ElementBack Electret Condenser
Open Circuit Voltage12.6
Audio Frequency Response50 - 18,000 Hz
Speech
Polar PatternOmni
Wired/WirelessWireless
