Specifications
Freq. Response¹ (-3 dB) | 65 Hz - 20 kHz |
Freq. Range¹ (-10 dB) | 45 Hz - 20 kHz |
Rec. Hipass Frequency | 45 Hz |
Specifications |
Axial Sensitivity | 100 dB (1W/1m) |
Max. Calculated SPL | 133 dB |
Horizontal Coverage | 90° |
Vertical Coverage | 50° |
Power Handling | 500W Continuous, 2000W Peak |

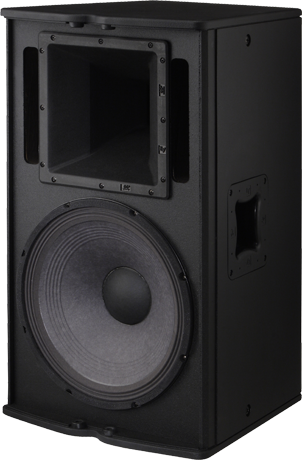

LF Transducer | SMX2151, 15 in (381mm) Driver |
HF Transducer | DH3, 1.25 in (32mm) Diaphragm Compression Driver |
Crossover Frequency | 1750 Hz |
Nominal Impedance | 8 Ohms |
Minimum Impedance | 6.2 Ohms |
Connectors | (2) Neutrik Speakon NL4's |
Enclosure Material | Plywood and MDF with EVCoatTM |

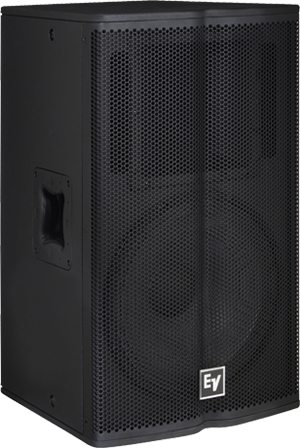

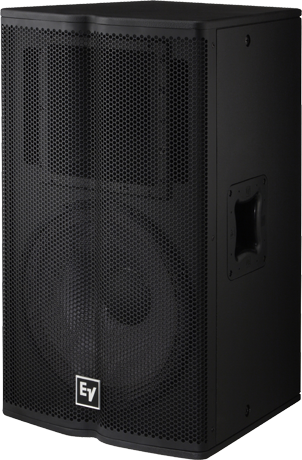

Grille | 16 GA Steel, Black Powdercoat, with Rotatable Logo |
Dimensions (H x W x D) | 18.7" x 17.3" x 25.8" (475mm x 439mm x 655mm) |
Net Weight | 51.9 lbs (23.5 kg) |
Shipping Weight | 59.4 lbs (27.0 kg) |
