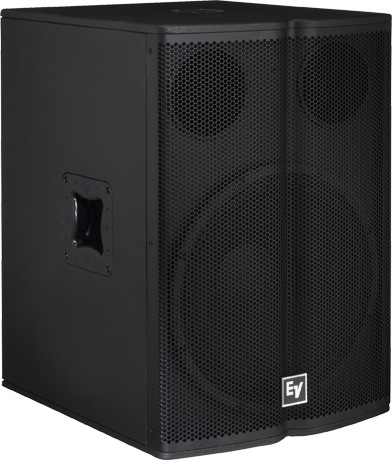

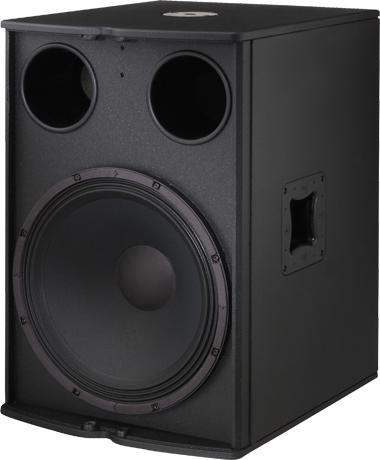

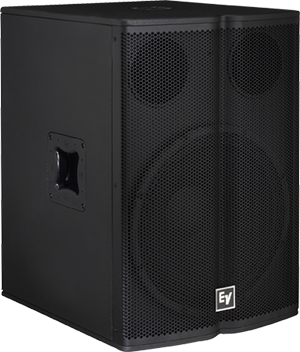

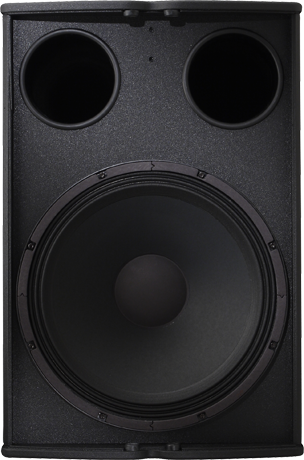

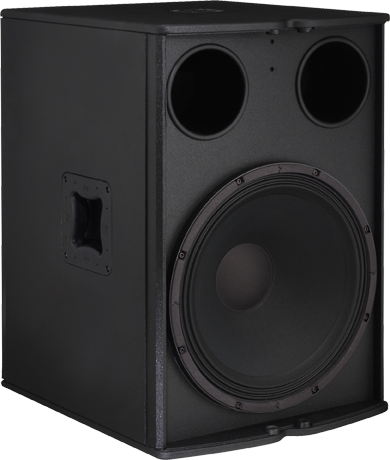

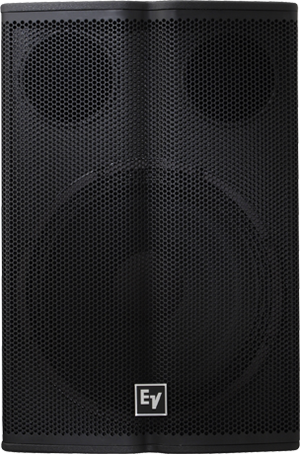

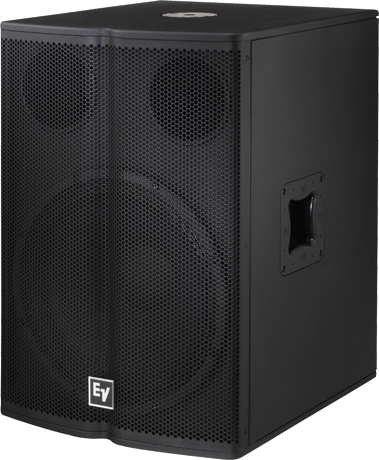

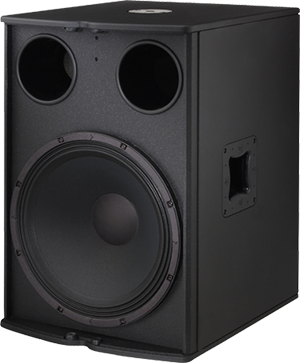

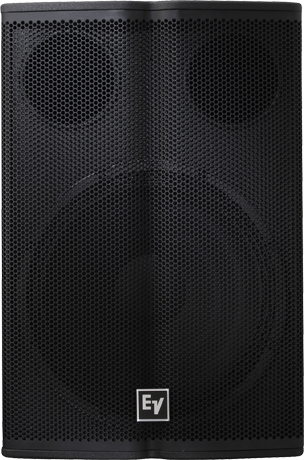

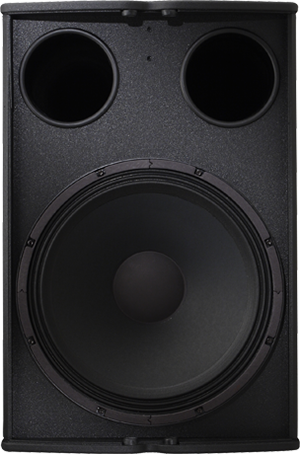

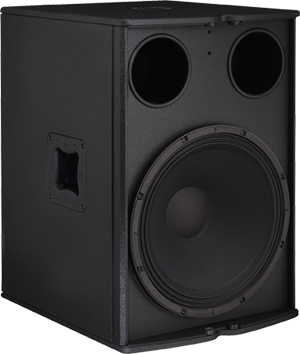

TX1181
18" passive subwoofer
- High-power LF supplement to TX1122 and TX1152
- High-excursion EVS-18S woofer
- 6 dB/octave low-pass filter for parallel connection without added amp
- 100 dB sensitivity, 132 dB max SPL
- Power handling: 500 W continuous, 2000 W peak
- Top-side socket for speaker pole
- Braced plywood/MDF enclosure
- Black EVCoat finish
Specifications
| Frequency Range (-10 dB) | 45 - 700kHz |
| Flying | No |
| Minimum Impedance | 7.5Ω |
Specifications |
|
| Nominal Impedance (Passive) | 8Ω |
| Speaker Type | Subwoofer |
| Woofer Size | 18inch |
| Powered or Passive | Passive |
| Frequency Response (-3 dB)¹ | 50 - 160Hz |
| Max. SPL/1m (calc)² | 132dB |
| LF Transducer | 18-inch EVS18S |
| Power Rating | 2000W |
| System Power Handling (Continuous/Program/Peak) | 500//2000Watts |
| Enclosure Material | Plywood and MDF with EVCOAT |
| Sensitivity 1 W/1 m | 100dB |
| Available Color | Black |
| Height | 769mm (30.28") |
| Width | 508mm (20") |
| Recommended High-Pass Frequency | 30Hz |
| Internal Crossover | Low-pass filter |
| Depth | 591mm (23.27") |
| Weight Net | 33.8kg (74.52 lbs) |
| Family | Tour X |
| Input Connections | Parallel Neutrik® NL4 |
Videos
Testing the Tour-X
MBLV 2010 - Talking EV with Chris Hintz
MBLV 2010 - DJ Kool stops by the EV Booth
Tour X at NAMM 2009
Recommended Amplifiersffs
For optimal sound system performance, Electro-Voice recommends the following amplifiers for TX1181.
Dynacord C‑SeriesLearn More |
Dynacord L‑SeriesLearn More |
|
|---|---|---|
| Two-Channel | ✔ | ✔ |
| Multi-Channel | ||
| DSP | ✔ | ✔ |
| Direct Drive | ✔ | ✔ |
| OMNEO (Dante, OCA) | ||
| Installation | ✔ | |
| Live Sound | ✔ |
