EVID-S5.2X
5” 面装定压扬声器（ip65）
- 精心设计以抵抗最恶劣的气候条件（IP65）；
- 远投5.25" (133 毫米)的低音扬声器内置于UL 94-5VB防火等级的ABS塑料箱体中，将低频性能拓展至55Hz；
- 90W室的功率处理可提供108dB的最大SPL（峰值114dB）；
- 带8Ω直通的60W变压器

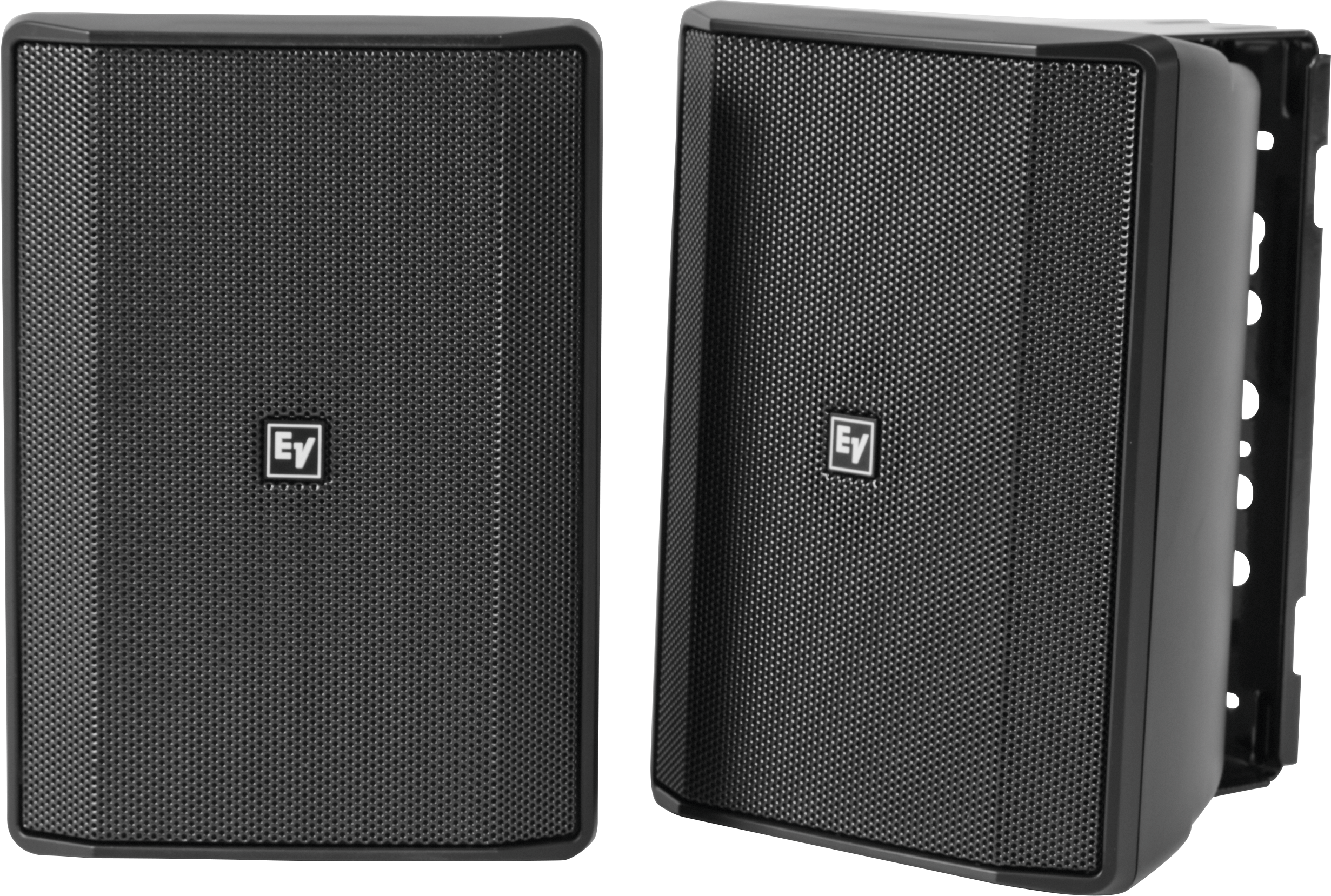

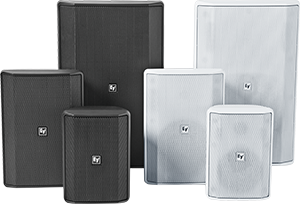

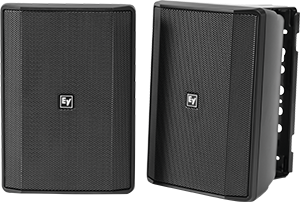

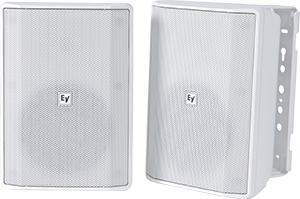

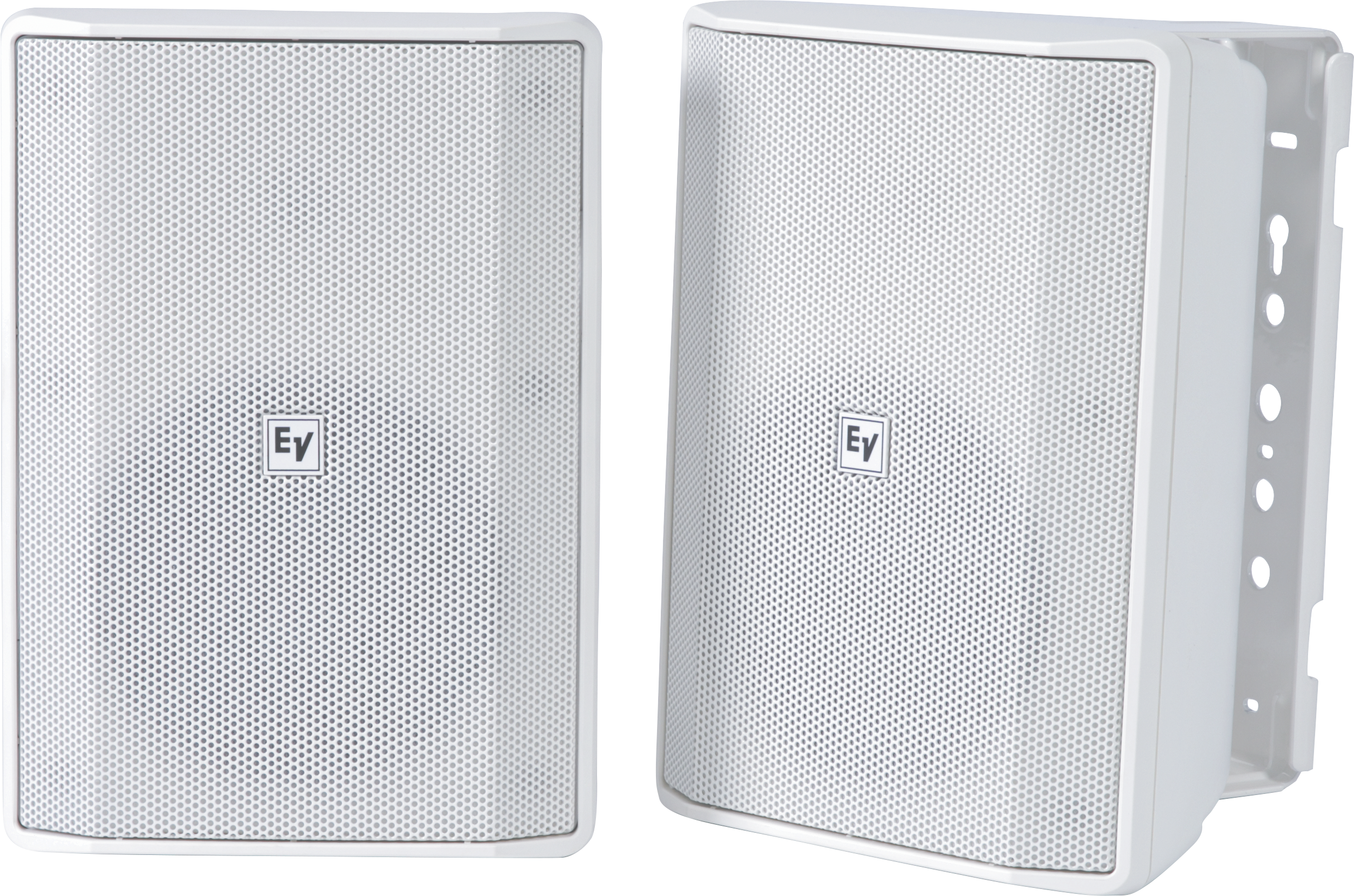

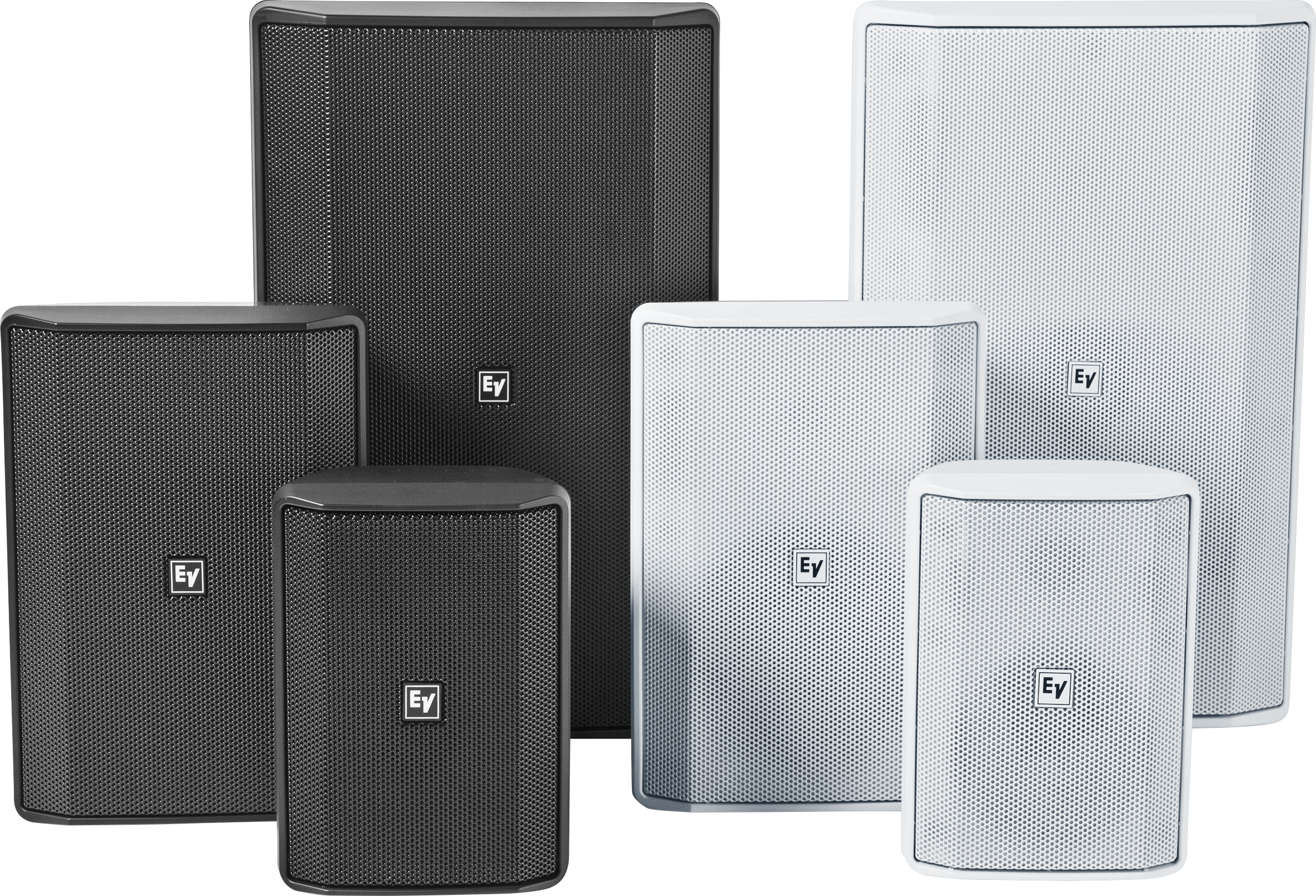

Electro-Voice的EVID-S5.2X是一款高性能的两分频5.25" (133 mm) 全频墙面安装扬声器，具有宽阔且一致的覆盖，性能出色。专为背景/前景音乐、传呼及扩声应用设计，是餐馆、酒吧、露台、零售环境、健身俱乐部、酒店、主题公园、休闲场地等室内外场所的理想之选。EVID-S5.2X安装极为简便，防风雨性强，外观时尚精致，安装选项也很灵活，是各种表面安装应用的完美解决方案。EVID-S5.2X经过精心设计，可抵御室外的极恶劣气候，同时不损耗其室内应用性能。该全频扬声器的防风雨等级通过IP65认证，此外其箱体和面网也具有出色的抗日晒、盐分、水分性能以及防氯性。EVID-S5.2X包含一个多功能的U型支架，支架设计可适用于多种安装应用。U型支架可旋转80度。EVID-S5.2X使用60W变压器，可选功率7.5W (限70V线路)、15W、30W或60W（70V或100V线路）或低阻抗线路的8Ω旁路。可通过扬声器背面输入面板上的便捷开关选择线路。EVID系列墙面安装扬声器种类多样，可作为一个完整的系统在多种不同的墙面安装结构中运作，同时也可与EVID系列的其他天花板和墙面嵌装扬声器组合使用。
Specifications
| Frequency Range (-10 dB) | 55 Hz – 20 k |
| Weatherized | Yes |
| Minimum Impedance | 6 |
产品规格 |
|
| HF Transducer | 0.75 inch (20 mm) |
| Frequency Response (-3 dB)¹ | 90 Hz – 20 |
| Max. SPL/1m (calc)² | 108 |
| Coverage (Nominal -6 dB) H | 90 |
| Coverage (Nominal -6 dB) V | 90 |
| LF Transducer | 5.25 inch (122 mm) |
| Connector Type | Removable locking 4-pin connector (Euroblock) – (2) for connection to additional speakers in a distributed line. Max. wire size 12AWG (2.5 mm) |

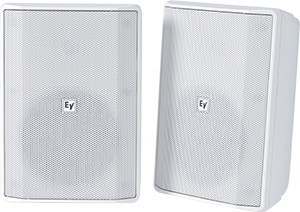

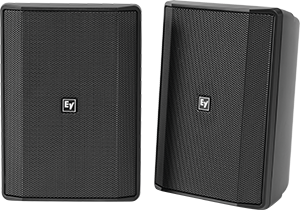

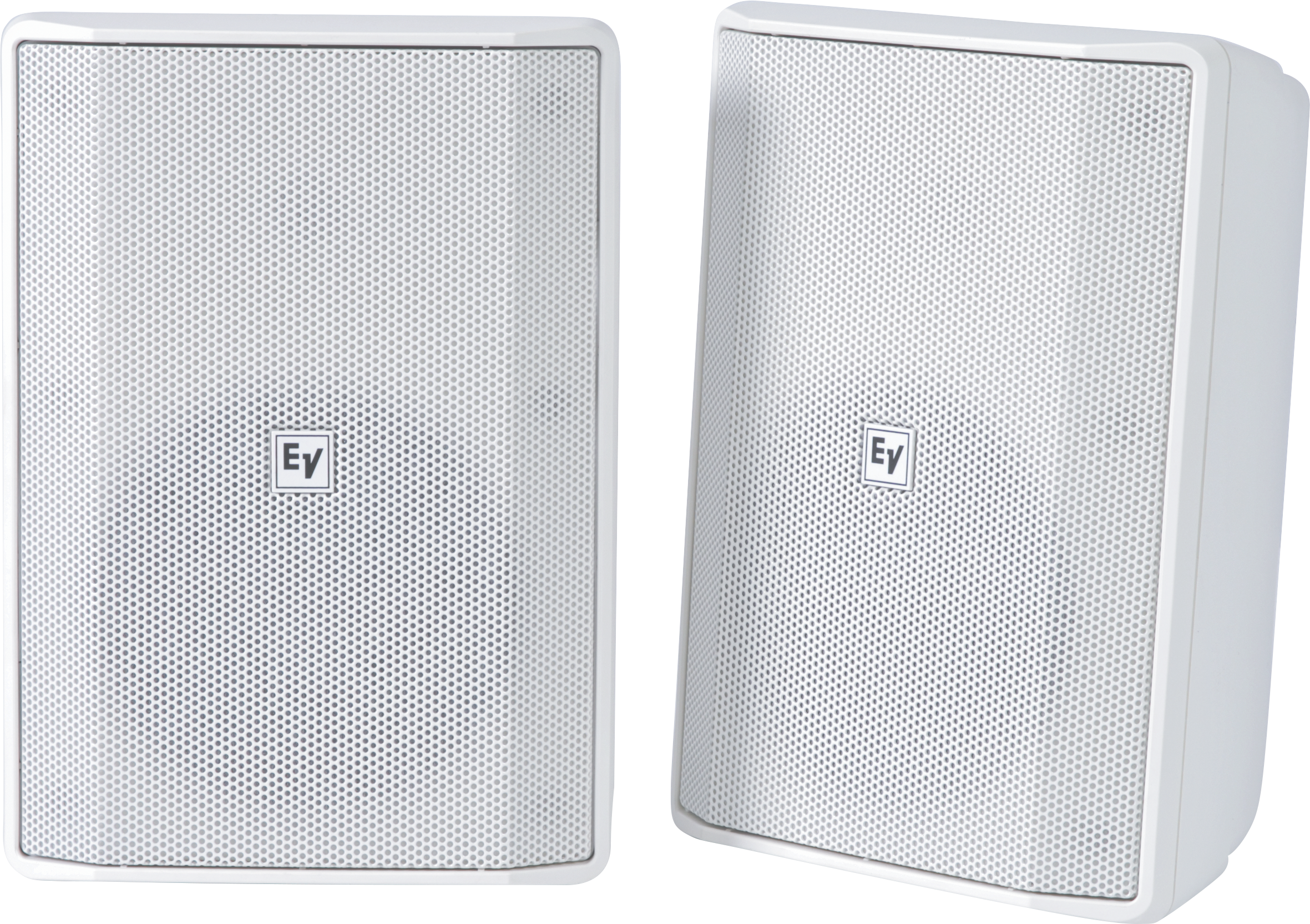

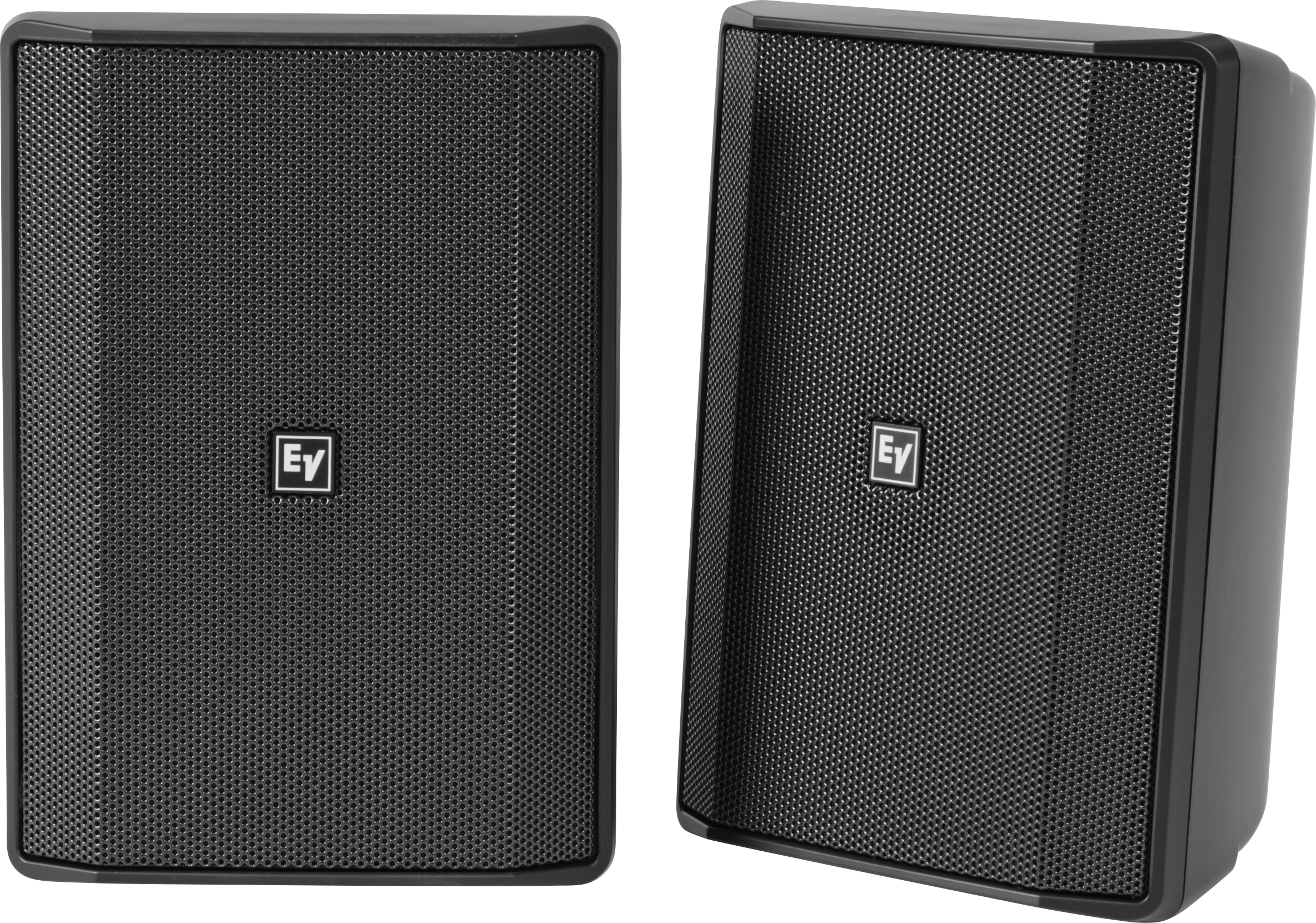

| Available Color | 黑色白色 |
| Sensitivity 1 W/1 m | 90 |
| Height | 255 |
| Recommended High-Pass Frequency | 60 |
| Width | 180 |
| Depth | 148 |
| Weight Net | 3.2 |
| Shipping Weight | 9.5 |
| Transformer | 70V/100V (60W) |
| Environmental Specs | IP-65 (per IEC-60529) |
| Nominal Impedance | 8 |
