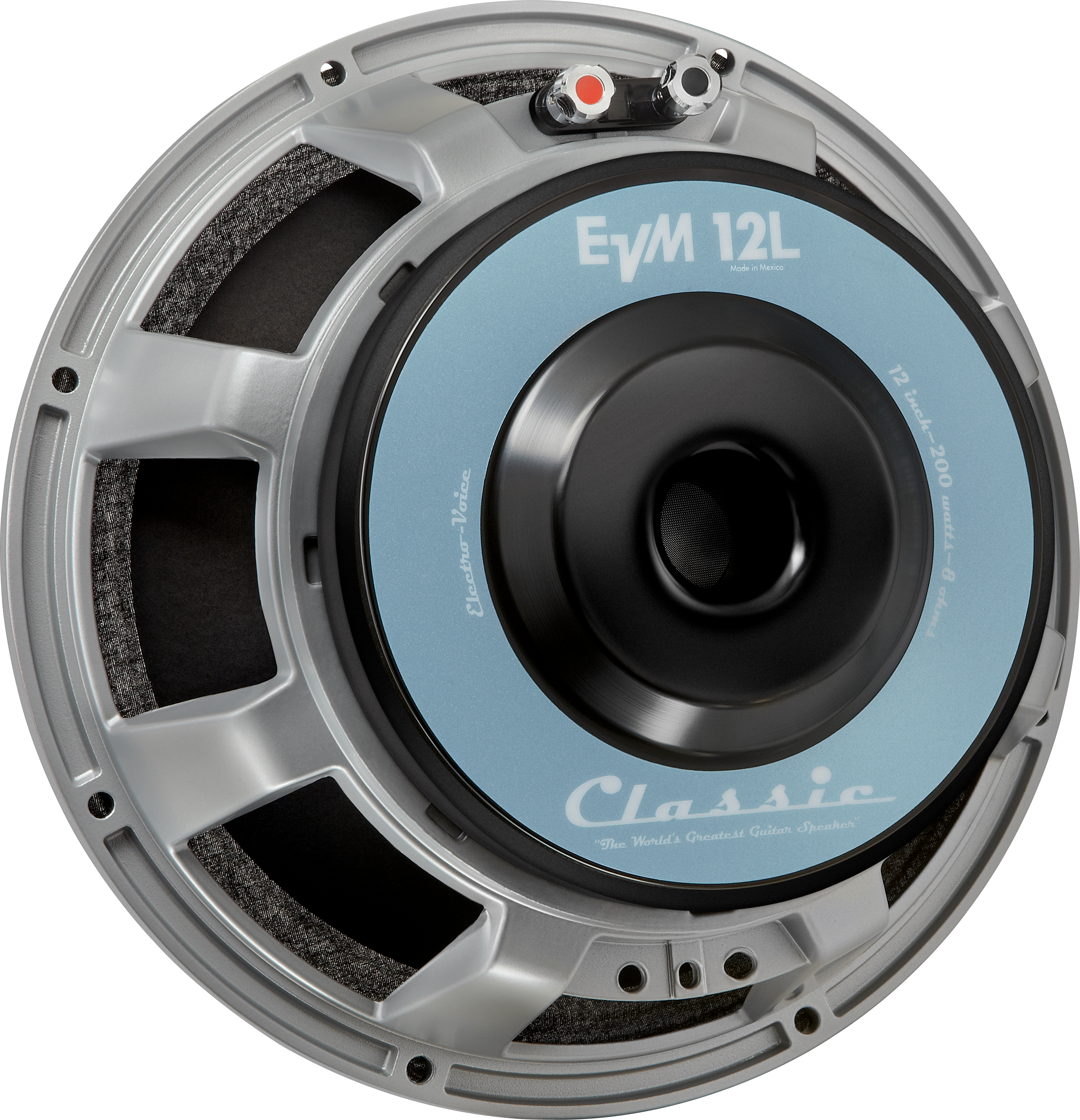

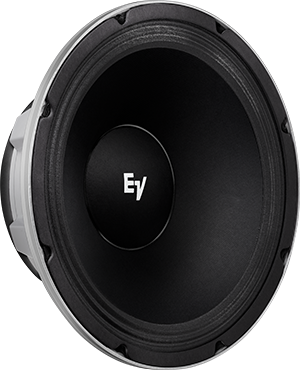

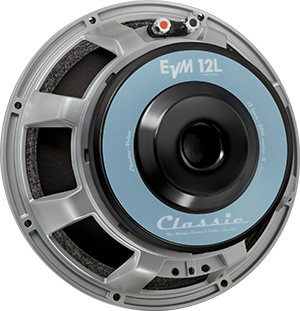

EVM12L Classic

经典款evm12l吉它扬声器

Summary & Images Specs Where to buy Downloads & Support

EVM12L Classic的音质刻意模仿经典的EVM12L扬声器，能带来几乎所有类型吉它演奏者喜爱的音调。

Specifications

Frequency Range (-10 dB) 80 – 5000
Weatherized No
Max. SPL/1m (calc)² 100

System Power Handling (Continuous/Program/Peak) 200
Power Rating 200
Available Color Unfinished
Sensitivity 1 W/1 m 100
Depth 133.4
Weight Net 8.6
Cone Diameter 305
Coil Diameter 63.5
Efficiency 5.9
Frame front diameter 309.6
Magnet diameter 190.5
Mounting bolt circle diameter 293.7
Baffle cutout diameter 281
Impedance 8
