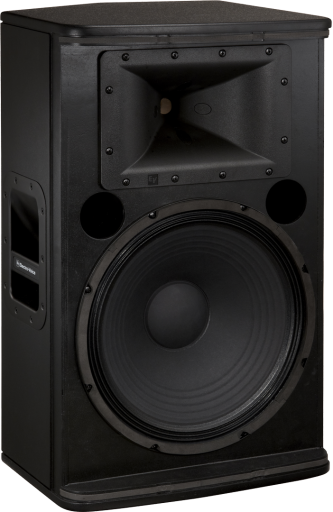

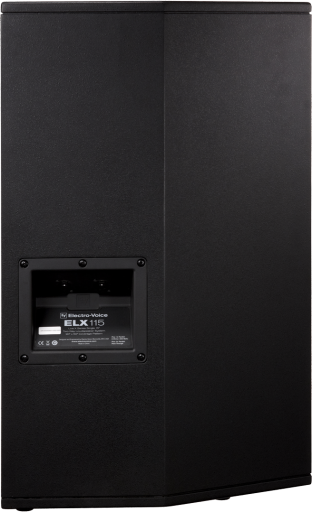

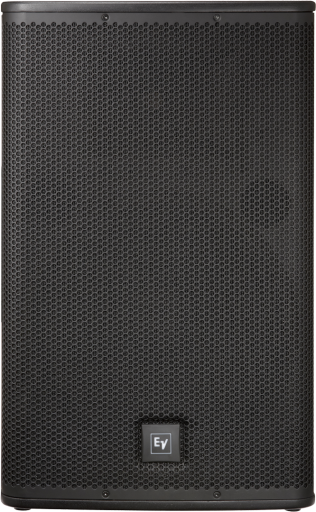

ELX115
15” zwei‑weg passiver lautsprecher
- 15” Tieftöner und 1.5” Hochtontreiber mit TitanmembranFrequenzgang 50-Hz – 20-kHz 95-dB SPL Kennschalldruck; 134-dB max SPL400-Watt Dauer- und 1600-Watt Spitzenbelastbarkeit Robustes Holzgehäuse — für Hochständer oder gestackte Anwendungen
Als kraftvolle Steigerung der ELX112, mit einem 15” Tieftöner liefert die ELX115 einen erweiterten Tieftonbereich und eine ausgewogene Wiedergabe in größeren Räumen.
Technische Daten
| Frequency Range (-10 dB) | 50 - 20000kHz |
| Minimum Impedance | 7.4Ω |
| Nominal Impedance (Passive) | 8Ω |
Technische Daten |
|
| HF Transducer | DH-1K, 39mm (1.5") Titanium Diaphragm Compression Driver |
| Speaker Type | Full-Range, mid-high, two-way |
| Woofer Size | 15inch |
| Powered or Passive | Passive |
| Frequency Response (-3 dB)¹ | 75 - 18000Hz |
| Max. SPL/1m (calc)² | 134dB (Half Space) |
| Coverage (Nominal -6 dB) H | 90° |
| Coverage (Nominal -6 dB) V | 50° |
| LF Transducer | (1) EVS-15K, 381mm (15") Woofer |
| System Power Handling (Continuous/Program/Peak) | 400//1600Watts |
| Crossover Frequency | 17000Hz |
| Connector Type | Parallel Neutrik® NL4 |
| Enclosure Material | 9-ply plywood |
| Grille | 18GA Steel with Black Powdercoat |
| Available Color | Black |
| Height | 708mm (27.87") |
| Recommended High-Pass Frequency | 40Hz |
| Width | 432mm (17.01") |
| Internal Crossover | Yes |
| Depth | 382mm (15.04") |
| Weight Net | 21.9kg (48.28 lbs) |
| Family | ELX |
| Case Material | 9-ply, 15mm Plywood, Internally Braced, with Textured Paint |
| Axial Sensitivity (SPL, 1 W @ 1 m) | 95dB |
Videos
ELX Loudspeaker Overview
Electro-Voice at NAMM 2012
EV @ NAMM 2011
In Search of Excellent Audio & Video
Recommended Amplifiersffs
For optimal sound system performance, Electro-Voice recommends the following amplifiers for ELX115.
Dynacord C‑SeriesErfahren Sie mehr |
Dynacord L‑SeriesErfahren Sie mehr |
|
|---|---|---|
| Two-Channel | ✔ | ✔ |
| Multi-Channel | ||
| DSP | ✔ | ✔ |
| Direct Drive | ✔ | ✔ |
| OMNEO (Dante, OCA) | ||
| Installation | ✔ | |
| Live Sound | ✔ |
