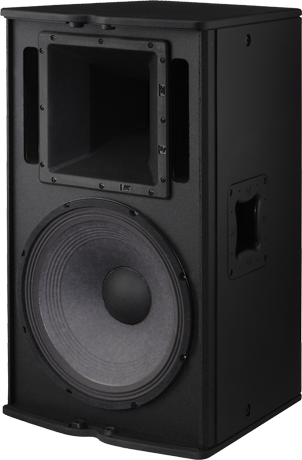

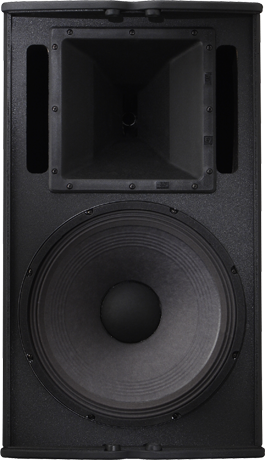

TX1152

15" passive loudspeaker

Summary & Images Specs Downloads & Support
  • High-output, high-quality sound
  • Excellent pattern control for medium throw use
  • Low-distortion SMX2151 woofer with fully symmetric drive
  • 1.25-inch DH3/2010A titanium HF compression driver
  • Rotatable Constant-directivity 60º x 40º horn
  • Advanced 4th-order crossover with HF protection
  • 100 dB sensitivity, 133 dB maximum SPL
  • Power handling: 500 W continuous, 2000 W peak
  • Lightweight trapezoidal plywood/MDF enclosure
  • Pole mount for use with subwoofer or stand
  • Six M10 threaded suspension points
  • Black EVCoat finish

Mehr Technische Daten

Freq. Response¹ (-3 dB) 65 Hz - 20 kHz
Freq. Range¹ (-10 dB) 45 Hz - 20 kHz
Rec. Hipass Frequency 45 Hz

Axial Sensitivity 100 dB (1W/1m)
Max. Calculated SPL 133 dB
Horizontal Coverage 90°
Vertical Coverage 50°
Power Handling 500W Continuous, 2000W Peak
LF Transducer SMX2151, 15 in (381mm) Driver
HF Transducer DH3, 1.25 in (32mm) Diaphragm Compression Driver
Crossover Frequency 1750 Hz
Nominal Impedance 8 Ohms
Minimum Impedance 6.2 Ohms
Connectors (2) Neutrik Speakon NL4's
Enclosure Material Plywood and MDF with EVCoatTM
Grille 16 GA Steel, Black Powdercoat, with Rotatable Logo
Dimensions (H x W x D) 18.7" x 17.3" x 25.8" (475mm x 439mm x 655mm)
Net Weight 51.9 lbs (23.5 kg)
Shipping Weight 59.4 lbs (27.0 kg)
¹ Half Space Measurement.

Videos

Recommended Amplifiersffs

For optimal sound system performance, Electro-Voice recommends the following amplifiers for TX1152.

Related Products Erfahren Sie mehr Related Products Erfahren Sie mehr
Two-Channel
Multi-Channel
DSP
Direct Drive
OMNEO (Dante, OCA)
Installation
Live Sound

Downloads

Technical Documentations
Name Language & Download
TOUR-X EU Declaration of Conformity (2023-Sep)
TOUR-X UKCA Declaration of Conformity (2023-Sep)
Name Language & Download
TX1152 Engineering Data Sheet
Name Language & Download
Tour-X Series User & Installation Manual
Name Language & Download
Service Policies for China
Name Language & Download
Audio 101 - Basic Audio Terminology
Audio 101 - Loudspeaker Basics
EASE Data Explanation
PA Bible 02: Power Handling Capacity
PA Bible 06: The Constant Directivity White Horn White Paper
PA Bible 11: Portable Sound Systems for the Small Club
The EV PA Bible
The PA Bible Chapter Zero
Software, Firmware & Design Tools
Name Language & Download
Tour X EASE Data
Name Language & Download
Tour X Presets for DX38
Marketing Materials
Name Language & Download

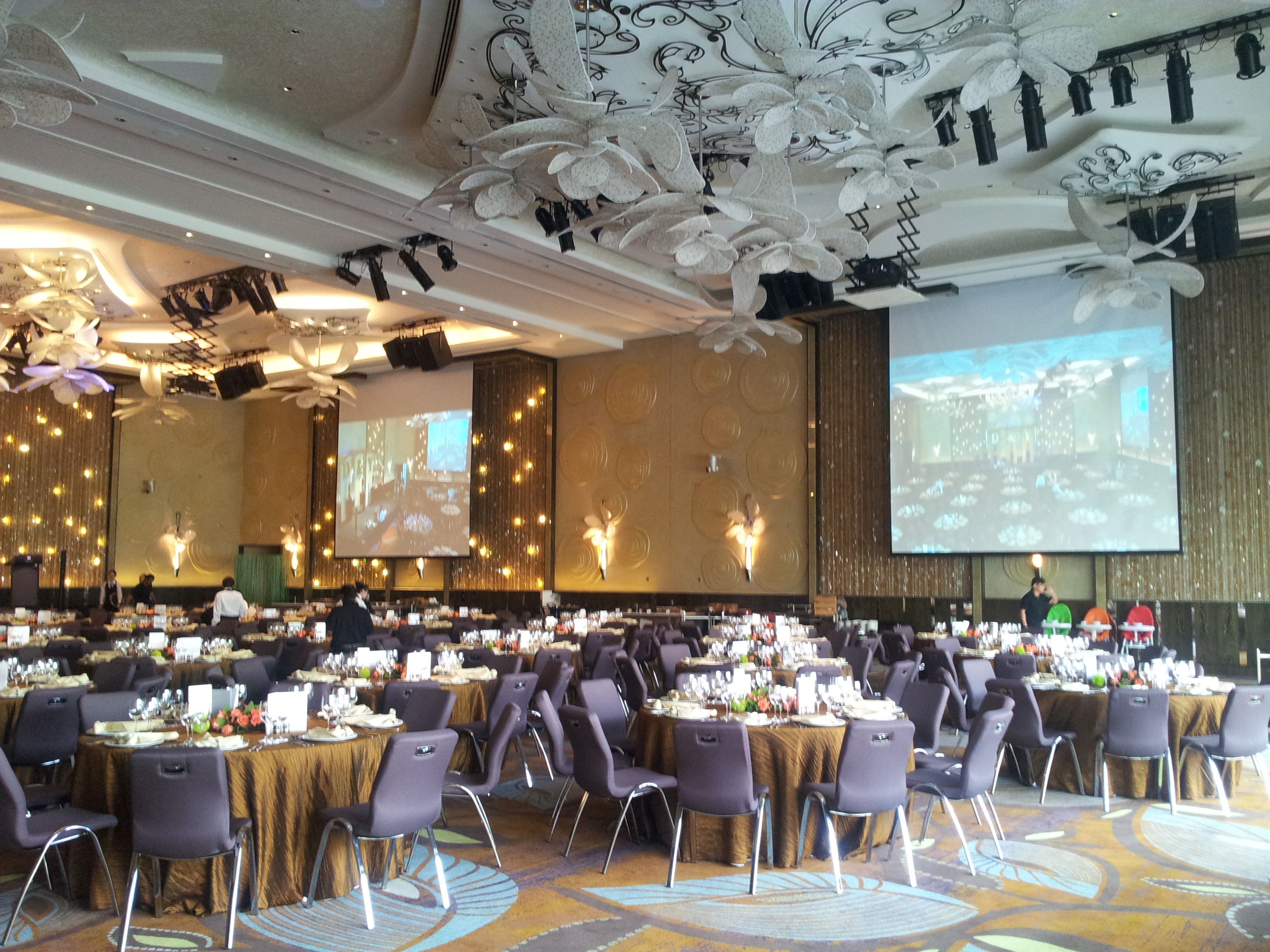

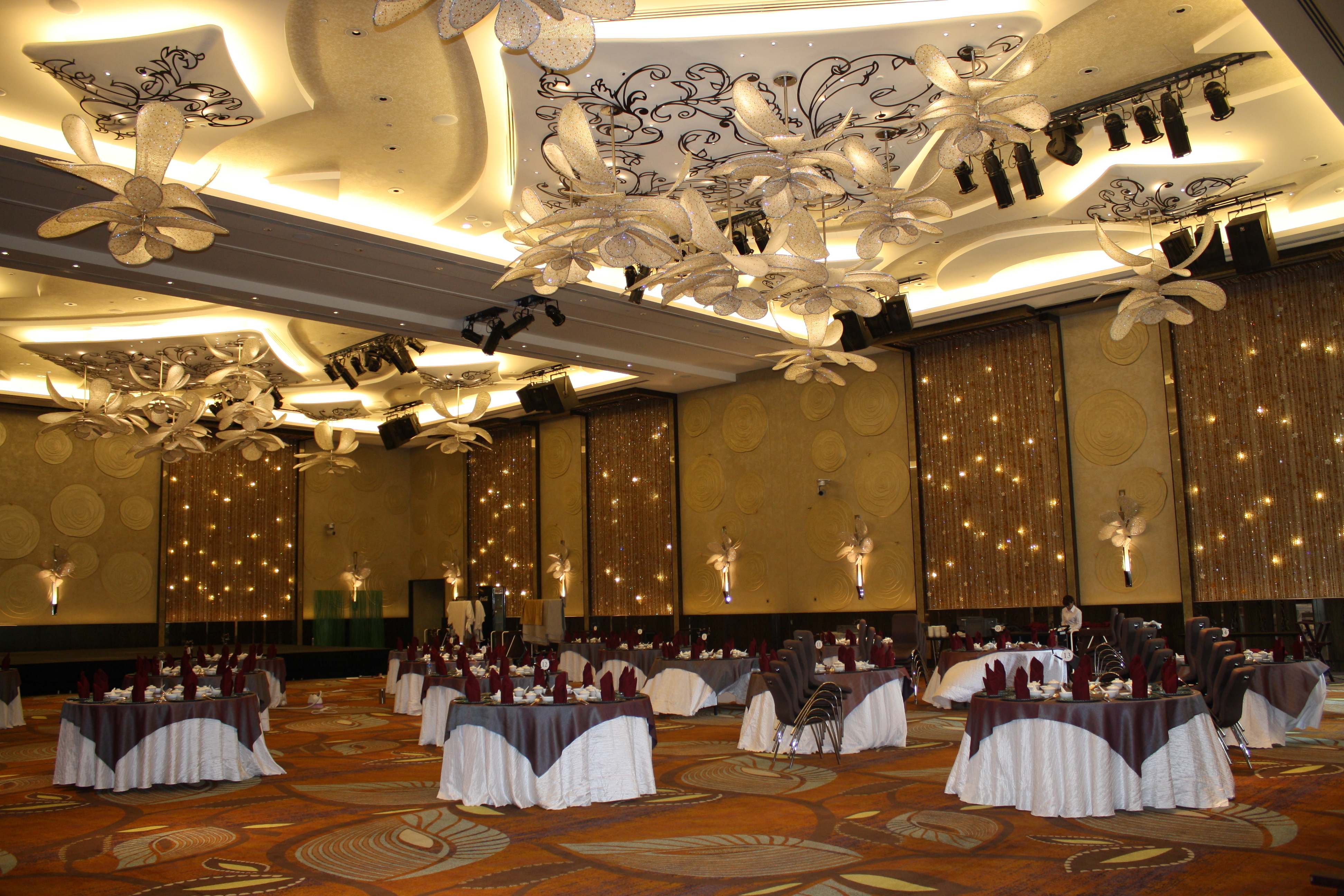

W Hotel (6)
W Hotel (4)

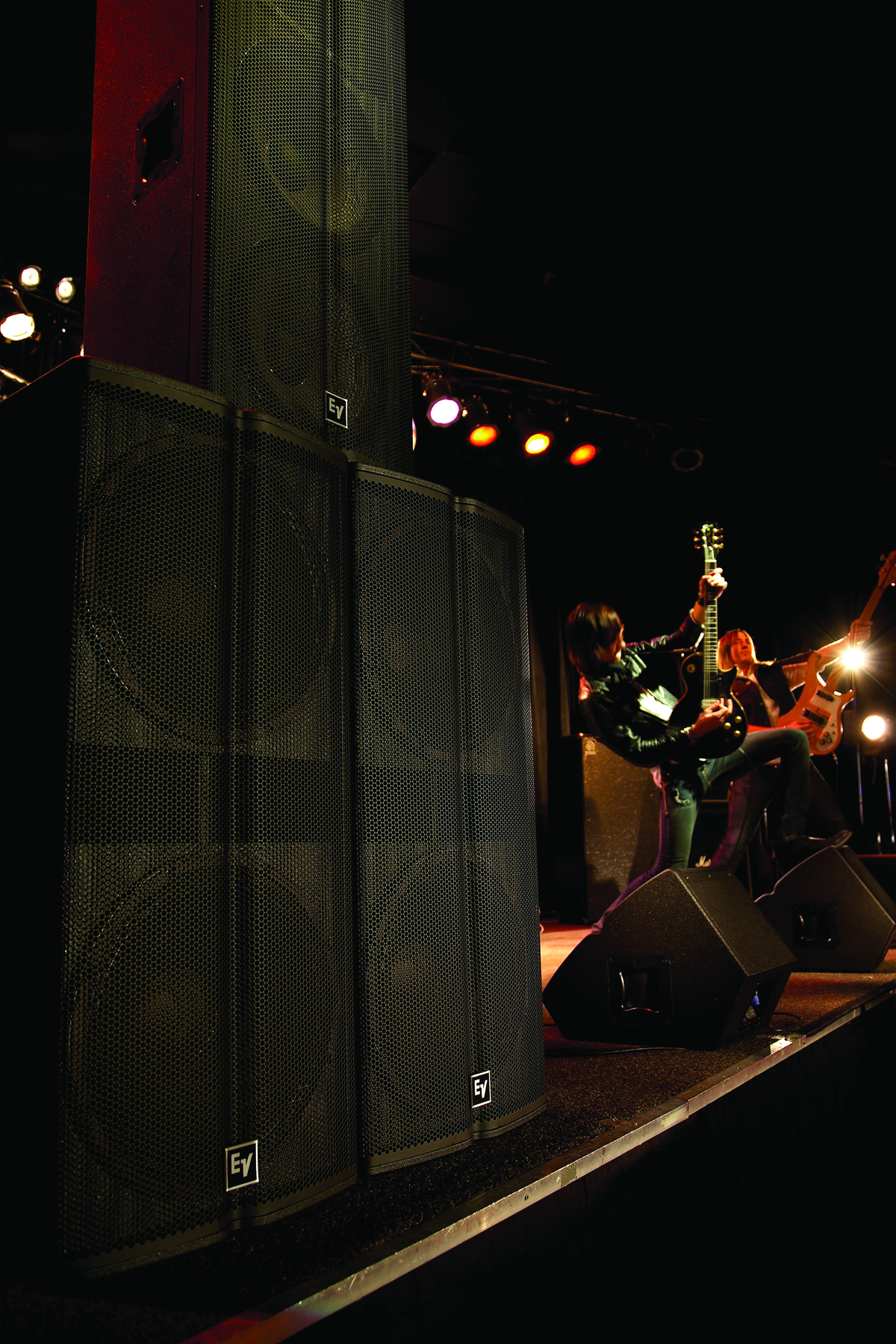

StageArray band
