LRC-2100
High Performance Column Speaker, 1m
- 37.40” (950 mm) high

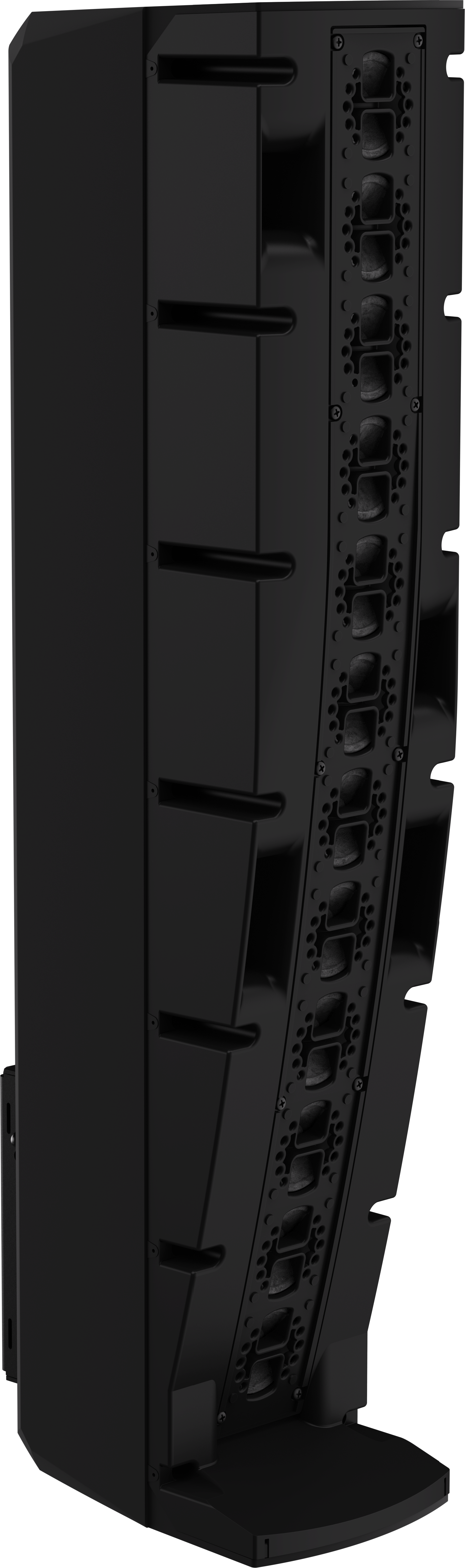

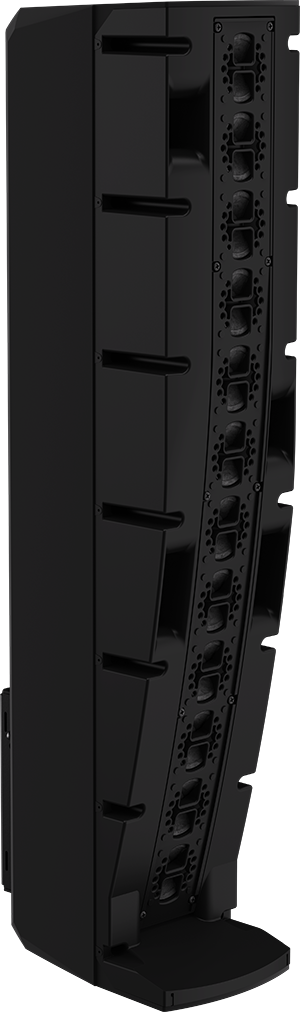

- 12x 2.5” (63.5 mm) mid-high drivers
- 2x 6.5” / (165 mm) woofers in band-pass
- 25°/45° vertical coverage (switchable)
- 140° horizontal coverage
- 45 Hz-16 kHz
- 129 dB SPL (peak)
- 8 ohms, 600W program
Specifications
| Preliminary specifications | |
| Frequency range (-10dB, half space) | 45 Hz - 16 kHz* |
| Maximum SPL | 129 dB* |
| Axial sensitivity (dB SPL 1W/1m) | 92 dB* |
| Acoustic down-tilt (relative to horizontal) | -7.5° |
|
|
| Coverage angle HxV | 140° x 25°/45° (narrow/wide) |
| Power handling (continuous) | 300 W |
| Power handling (program) | 600 W |
| Peak input voltage | 145 V* |
| Nominal impedance | 8 Ω* |
| Recommended high pass filter | ≥50 Hz Butterworth 24 dB/oct |
| Transformer taps (70V line) | N/A |
| Transformer taps (100V line) | N/A |
| Transducer quantity/size | Twelve 2.5 in mid-high drivers Two 6.5 in woofers in band-pass |

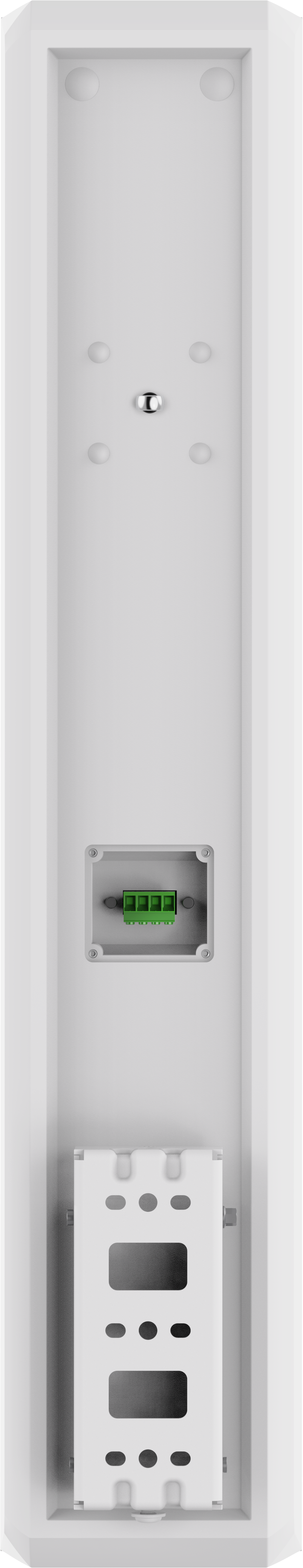

| Connector type | 4-pin Phoenix/Euroblock (input + pass-through) |
| Maximum wire size | 10 AWG |
| Suspension points | Four M8 hardpoints |

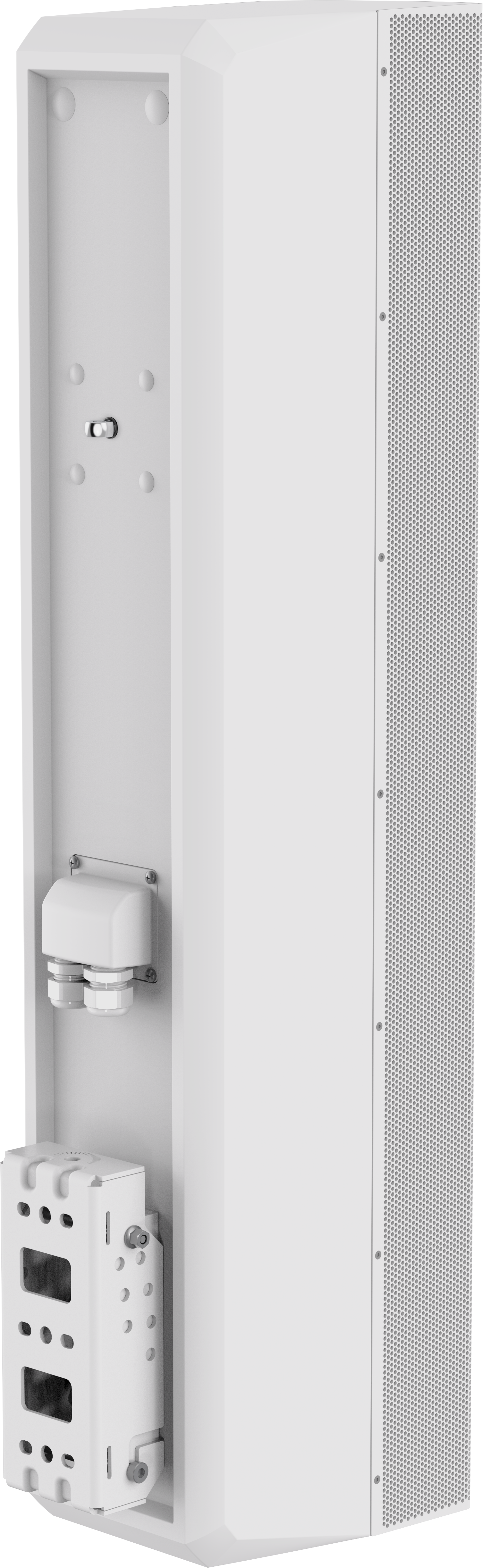

| Mounting | SwifTilt multi-angle tilt + pan bracket |
| Vertical down-tilt angles | 0°, 2.5°, 5°, 7.5°, 10°, 15°, 20°, 25° |
| Maximum horizontal pan angle | +/- 80° (at all down-tilt angles) |
| Weatherization | Full Exposure (FW), IP55 |

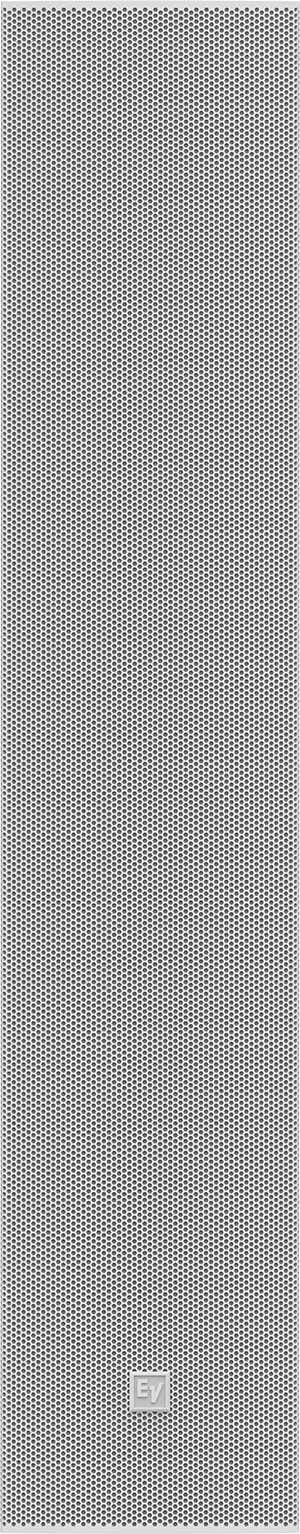

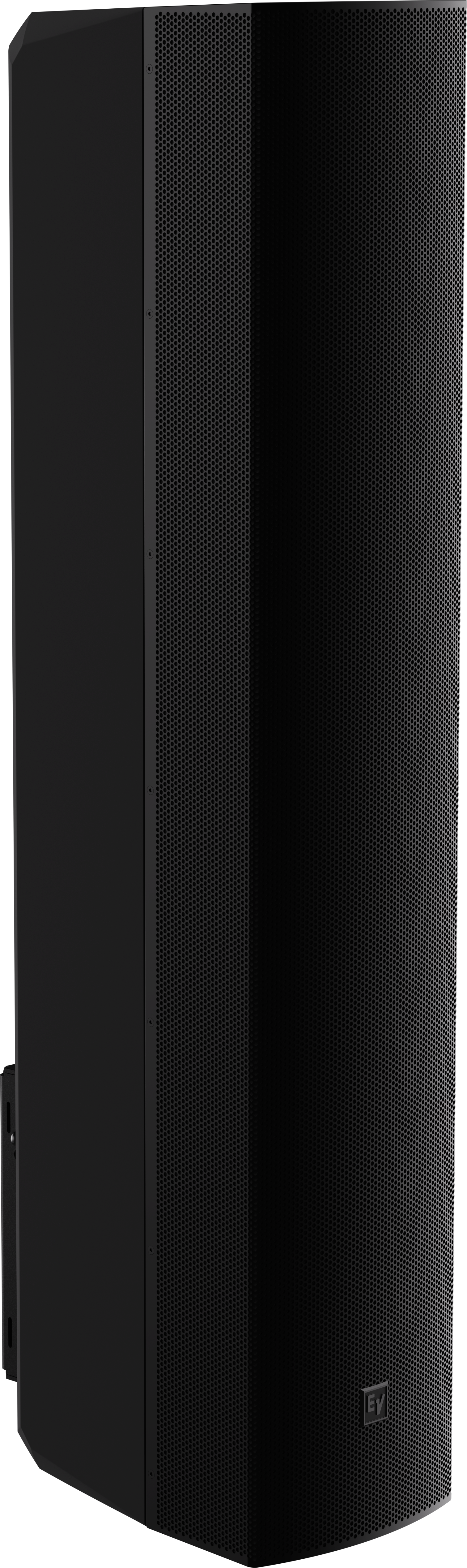

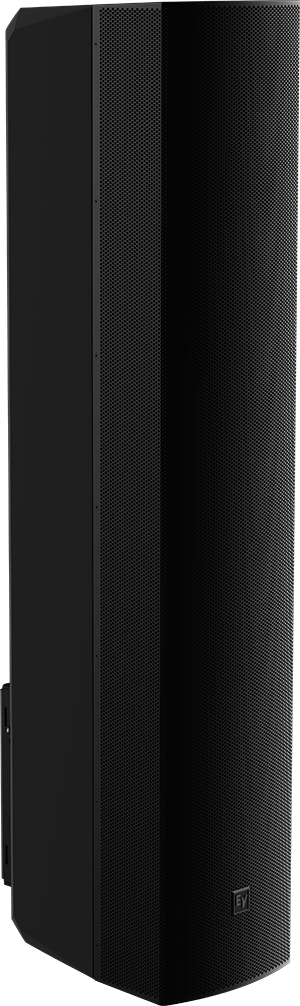

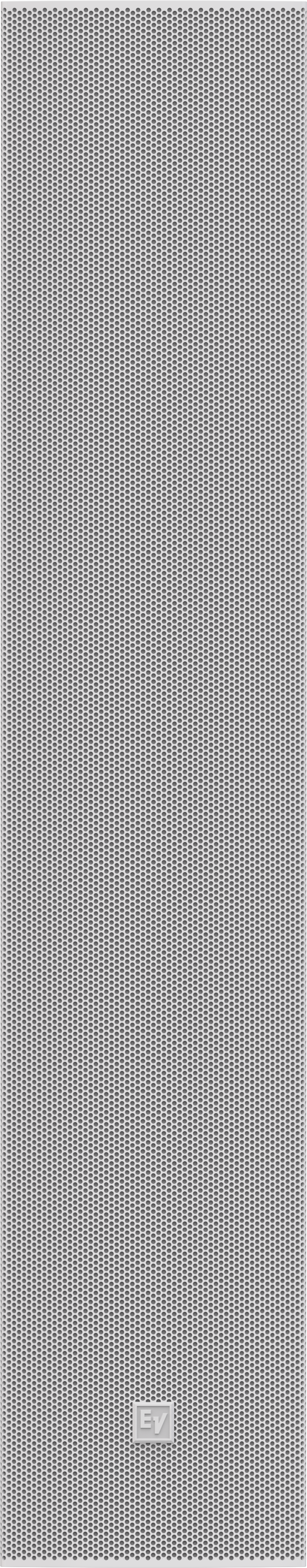

| Color | RAL 9004 black or RAL 9003 white |
| Dimension (H x W x D) | 37.40 in x 7.28 in x 9.84 in (950 mm x 185 mm x 250 mm) |
| Weight | 33.1 lbs / 15 kg |
| Included hardware | Tilt Bracket, Pan Bracket, Gland Nut Weather Cover, Dual-ended Allen/TR20 Key, M8x20mm Eyebolt (Pre-installed) |
