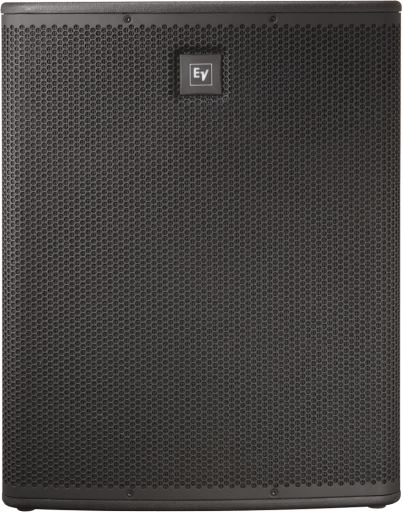

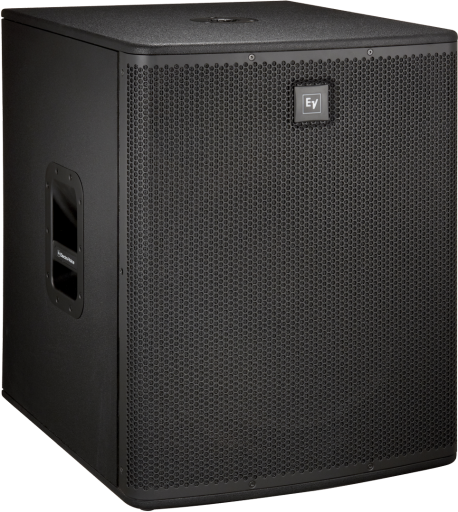

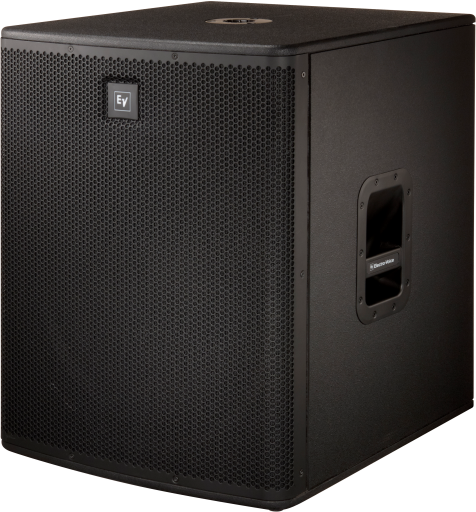

ELX118

Subwoofer passivo de 18 polegadas

Summary & Images Specs Downloads & Support

O woofer de 18 polegadas proporciona uma saída de baixas frequências ampliadaGama de frequências 32 Hz – 200 kHz Sensibilidade SPL 96 dB; SPL máx. 134 dBProcessamento de potência contínuo de 400 W e pico de 1600 WCaixa de madeira robusta — permite configurações de montagem em poste ou empilhada

Optimizado para o desempenho com o ELX112 e o ELX115, o ELX118 acrescenta um tom profundo e completo de baixa frequência, que se pode ouvir e sentir.

Specifications

Frequency Range (-10 dB)	35 - 200kHz
Minimum Impedance	6.7Ω
Nominal Impedance (Passive)	8Ω
Specifications

HF Transducer	N/A
Speaker Type	Subwoofer
Woofer Size	18inch
Powered or Passive	Passive
Frequency Response (-3 dB)¹	50 - 100Hz
Max. SPL/1m (calc)²	134dB

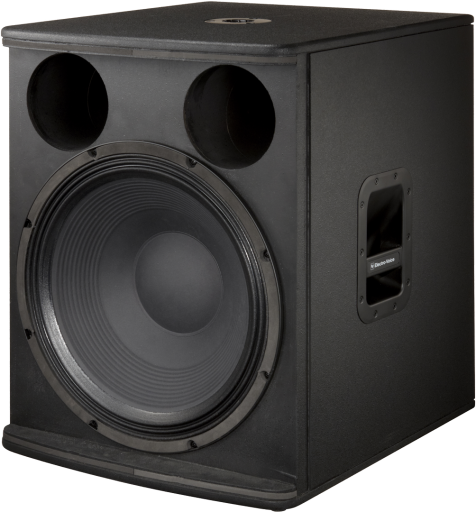

LF Transducer	(1) EVS-18K, 457mm (18") Woofer
Power Rating	1600W
System Power Handling (Continuous/Program/Peak)	400//1600Watts
Crossover Frequency	N/AHz

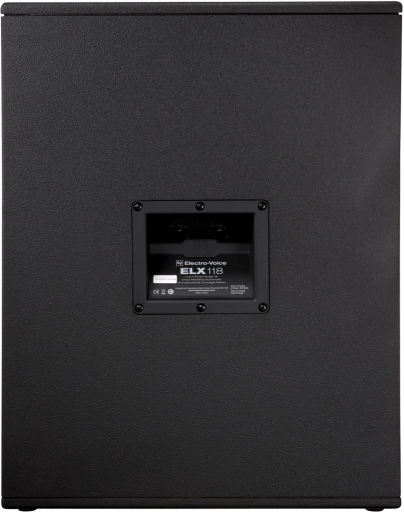

Connector Type	Parallel Neutrik® NL4
Enclosure Material	9-ply, 15 mm, plywood
Grille	18GA Steel with Black Powdercoat
Available Color	Black
Height	661mm (26.02")
Width	507mm (19.96")
Recommended High-Pass Frequency	30Hz
Depth	574mm (22.6")
Internal Crossover	Yes
Weight Net	30.6kg (67.46 lbs)
Shipping Weight	35.4kg (78.04 lbs)
Family	ELX
Coverage (Nominal -6 dB)	Omnidirectional
Case Material	9-ply, 15mm Plywood, Internally Braced, with Textured Paint
Axial Sensitivity (SPL, 1 W @ 1 m)	96dB

Videos

ELX Loudspeaker Overview

Electro-Voice at NAMM 2012

EV @ NAMM 2011

In Search of Excellent Audio & Video

Recommended Amplifiersffs

For optimal sound system performance, Electro-Voice recommends the following amplifiers for ELX118.

	Dynacord C‑Series Two‑Channel Power Amplifiers for Fixed Install Learn More	Dynacord L‑Series Two‑Channel Power Amplifiers for Live Sound Learn More
Two-Channel	✔	✔
Multi-Channel
DSP	✔	✔
Direct Drive	✔	✔
OMNEO (Dante, OCA)
Installation	✔
Live Sound		✔
