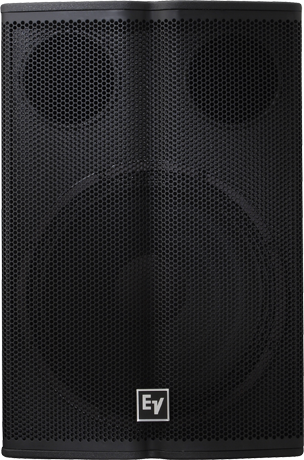

TX1181

18" passive subwoofer

Summary & Images Specs Downloads & Support

High-power LF supplement to TX1122 and TX1152
High-excursion EVS-18S woofer
6 dB/octave low-pass filter for parallel connection without added amp
100 dB sensitivity, 132 dB max SPL
Power handling: 500 W continuous, 2000 W peak
Top-side socket for speaker pole
Braced plywood/MDF enclosure
Black EVCoat finish

Specifications

Frequency Range (-10 dB)	45 - 700kHz
Flying	No
Minimum Impedance	7.5Ω
Specifications

Nominal Impedance (Passive)	8Ω
Speaker Type	Subwoofer
Woofer Size	18inch
Powered or Passive	Passive
Frequency Response (-3 dB)¹	50 - 160Hz
Max. SPL/1m (calc)²	132dB
LF Transducer	18-inch EVS18S
System Power Handling (Continuous/Program/Peak)	500//2000Watts
Power Rating	2000W
Enclosure Material	Plywood and MDF with EVCOAT
Available Color	Black
Sensitivity 1 W/1 m	100dB
Height	769mm (30.28")
Recommended High-Pass Frequency	30Hz
Width	508mm (20")
Depth	591mm (23.27")
Internal Crossover	Low-pass filter
Weight Net	33.8kg (74.52 lbs)
Family	Tour X
Input Connections	Parallel Neutrik® NL4
