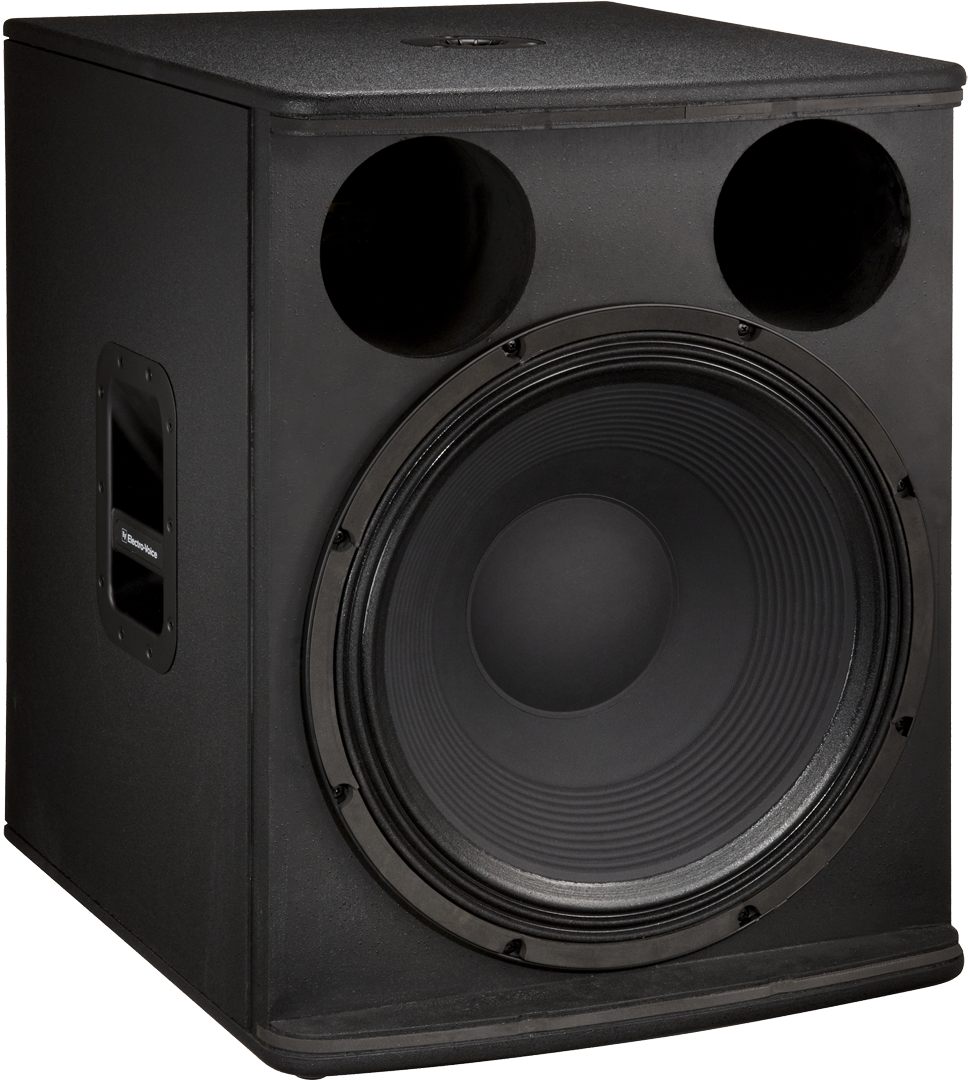

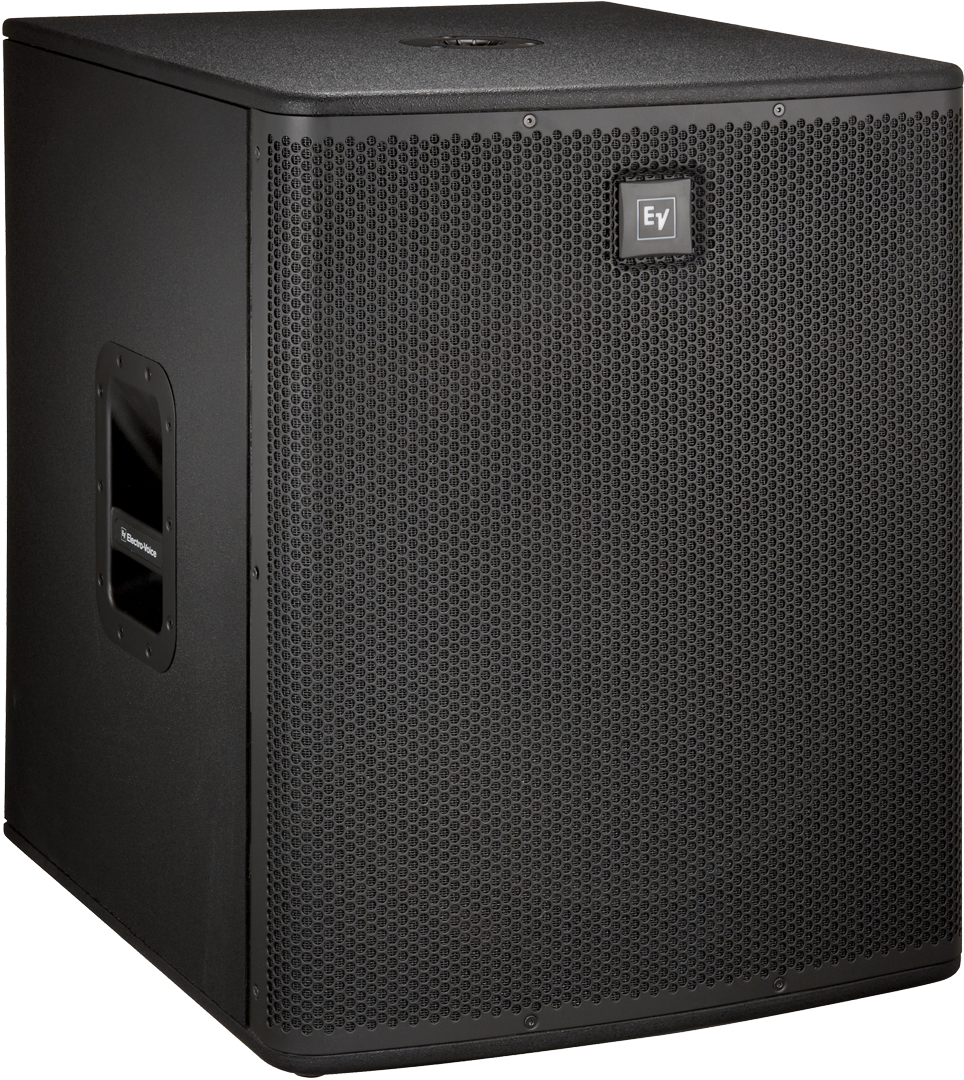

ELX118

18" live x超低频扬声器

Summary & Images Specs Downloads & Support
  • 18"低频扬声器扩大了低频输出;频率范围32 Hz – 200 kHz;灵敏度96 dB;最高声压级134 dB;持续功率400W,峰值功率1600W;坚固的木制箱体,支持通过安装杆安装或与 Live扬声器堆放安装

ELX118性能经过优化,高于ELX112和ELX115,增加了低频放大节奏,可以亲身感受到节奏更加深厚。

Specifications

Frequency Range (-10 dB) 35 - 200
Minimum Impedance 6.7
Nominal Impedance (Passive) 8

HF Transducer N/A
Speaker Type Subwoofer
Woofer Size 18
Powered or Passive Passive
Frequency Response (-3 dB)¹ 50 - 100
Max. SPL/1m (calc)² 134

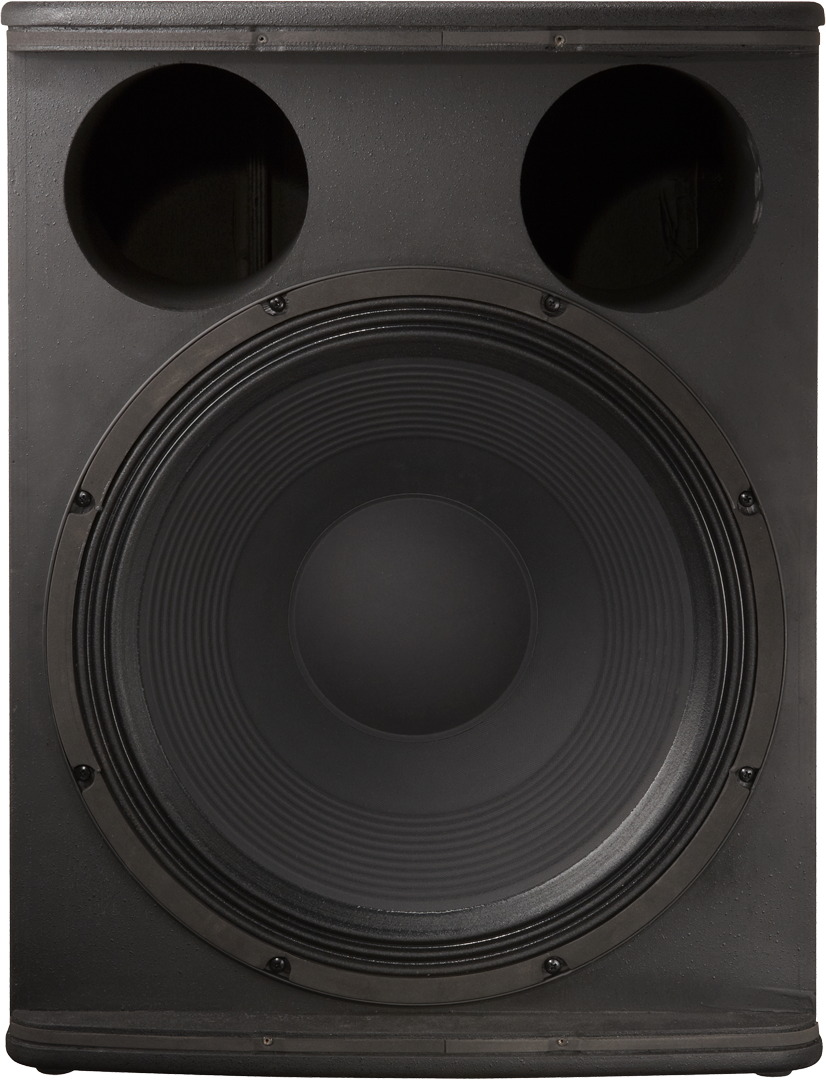

LF Transducer (1) EVS-18K, 457mm (18") Woofer
Power Rating 1600
System Power Handling (Continuous/Program/Peak) 400//1600
Crossover Frequency N/A

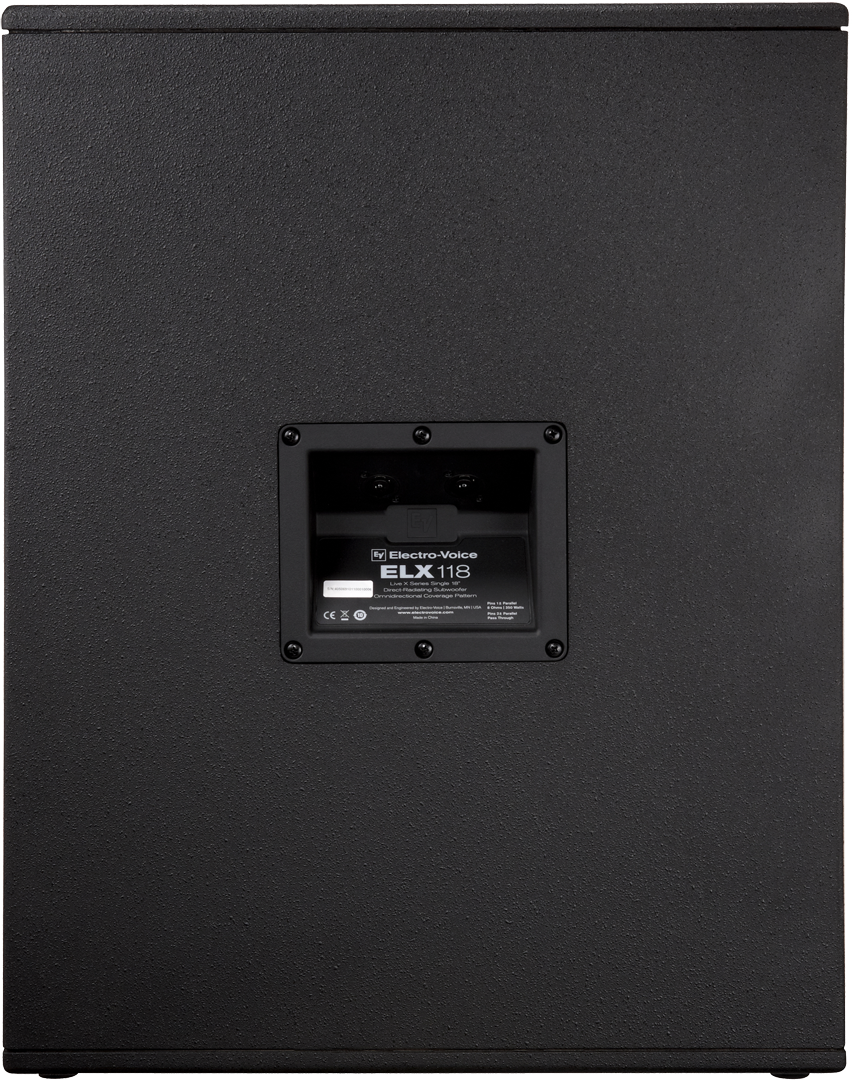

Connector Type Parallel Neutrik® NL4
Enclosure Material 9-ply, 15 mm, plywood

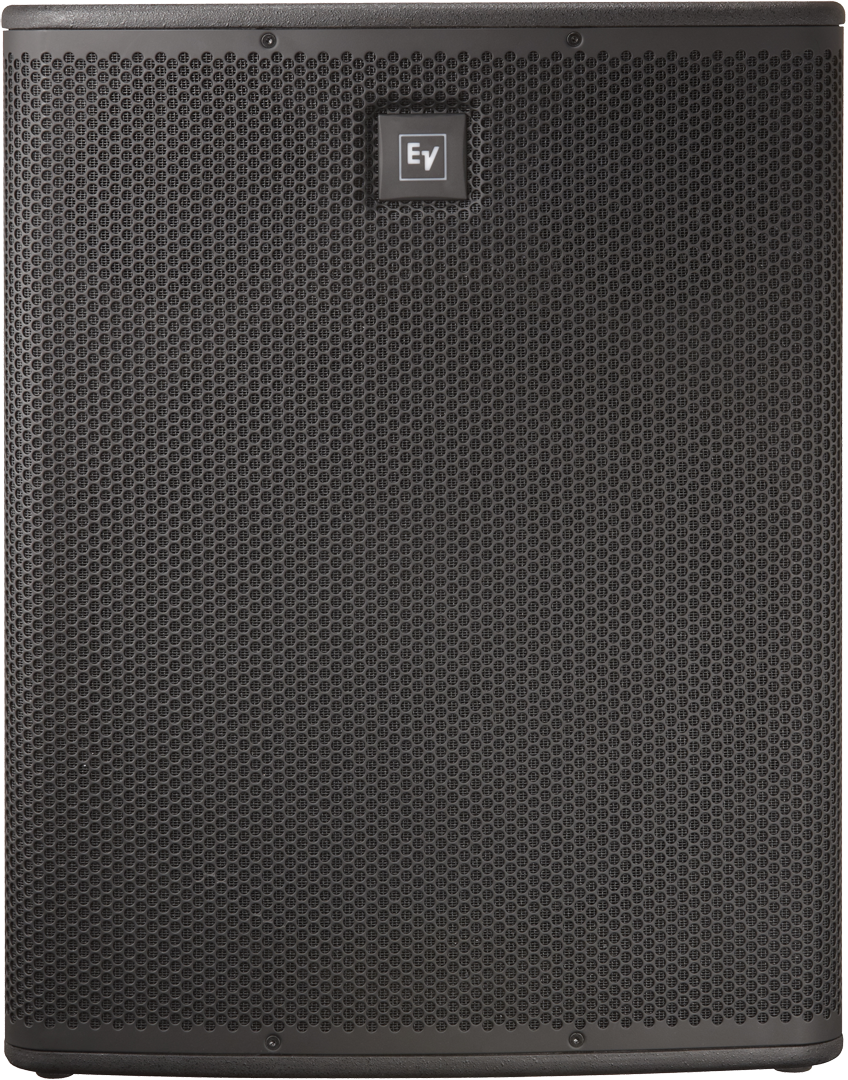

Grille 18GA Steel with Black Powdercoat
Available Color 黑色
Height 661
Width 507
Recommended High-Pass Frequency 30
Depth 574
Internal Crossover Yes
Weight Net 30.6
Shipping Weight 35.4
Family ELX
Coverage (Nominal -6 dB) Omnidirectional
Case Material 9-ply, 15mm Plywood, Internally Braced, with Textured Paint
Axial Sensitivity (SPL, 1 W @ 1 m) 96
