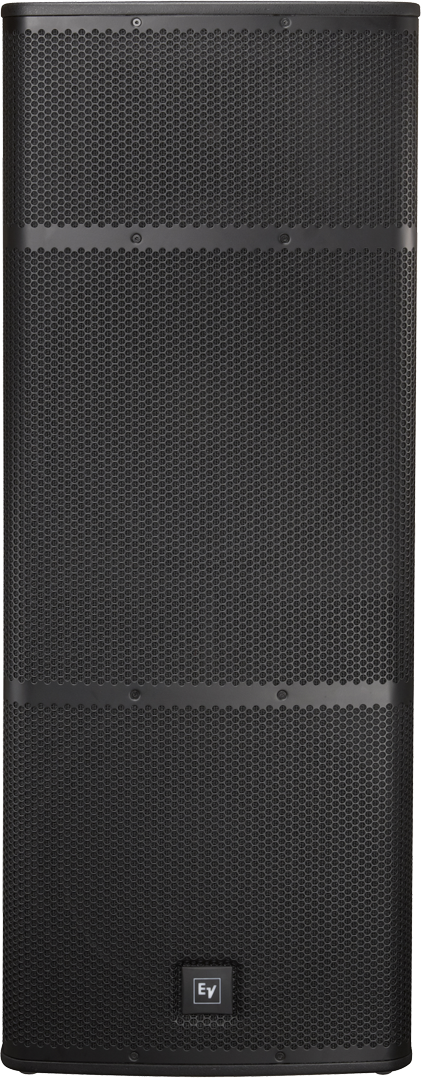

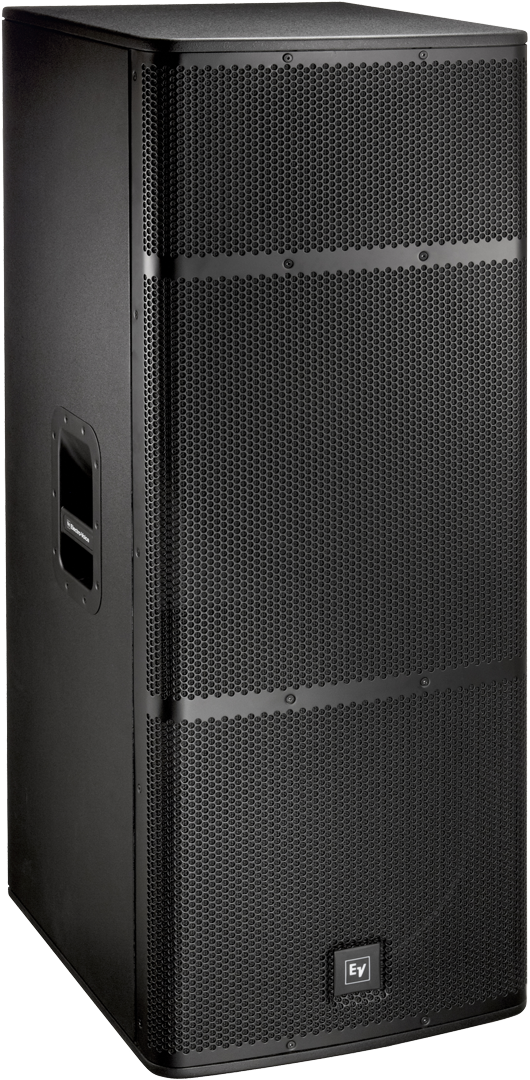

ELX215

双15" live x两分频扬声器

Summary & Images Specs Downloads & Support

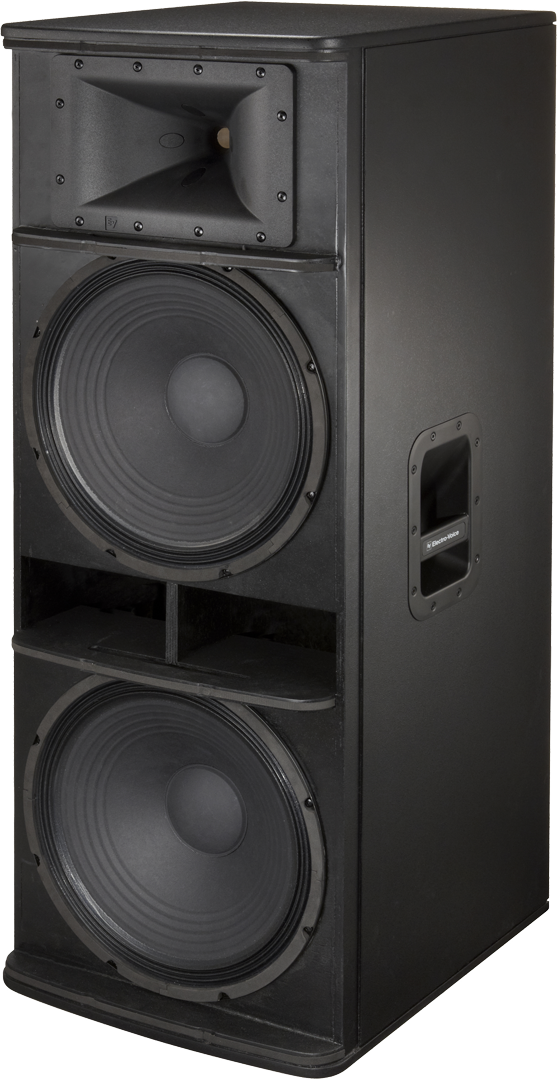

  • 15"双低频扬声器和1.5"高频纯钛压缩驱动器;频率范围38 Hz – 20 kHz;灵敏度96 dB;最高声压级137 dB;持续功率600W,峰值功率2400W;坚固的木制箱体,可生成极佳的舞台效果

此双低频扬声器配置可实现真正的低端节奏,对于要求从一个音箱输出高音量和超宽频率响应的应用来说是理想之选。

Specifications

Frequency Range (-10 dB) 38 - 20000
Minimum Impedance 3.7
Nominal Impedance (Passive) 4

HF Transducer DH-1K, 39mm (1.5") Titanium Diaphragm Compression Driver
Speaker Type Full-Range, mid-high, two-way
Woofer Size 15
Powered or Passive Passive
Frequency Response (-3 dB)¹ 62 - 18000
Max. SPL/1m (calc)² 137
Coverage (Nominal -6 dB) H 90
Coverage (Nominal -6 dB) V 50
LF Transducer (2) EVS-15K, 381mm (15") Woofers
System Power Handling (Continuous/Program/Peak) 600//2400
Crossover Frequency 1.7 k

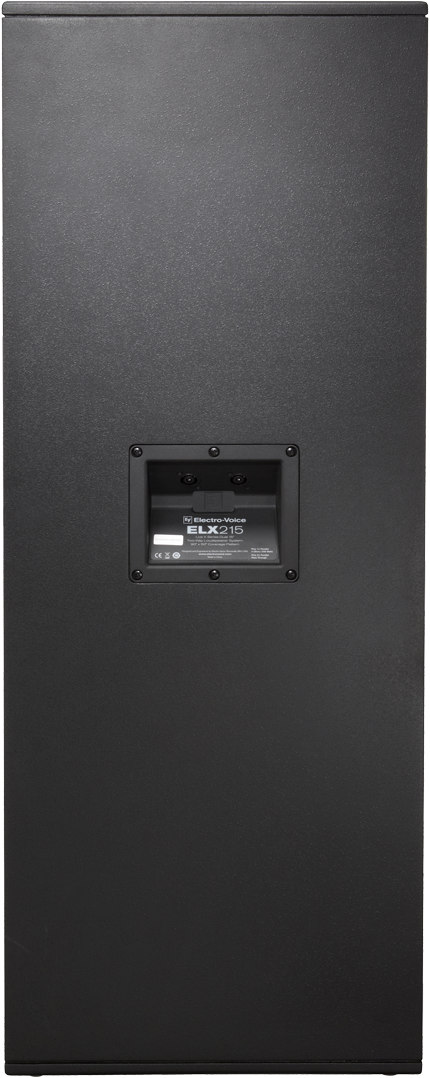

Connector Type Parallel Neutrik® NL4
Enclosure Material 9-ply plywood
Grille 18GA Steel with Black Powdercoat
Available Color 黑色
Height 1154
Recommended High-Pass Frequency 35
Width 432
Internal Crossover Yes
Depth 501
Weight Net 40.7
Shipping Weight 52.0
Family ELX
Case Material 9-ply, 15mm Plywood, Internally Braced, with Textured Paint
Coverage (Nominal -6 dB) Omnidirectional
Axial Sensitivity (SPL, 1 W @ 1 m) 96
