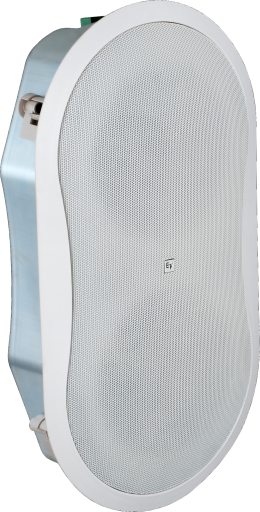

EVID FM6.2

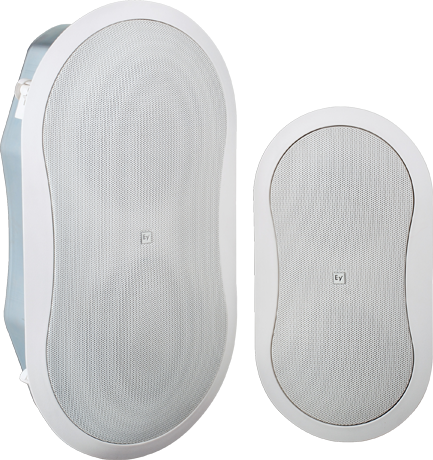

Evid系列墙壁预埋式扬声器系统

Summary & Images Specs Downloads & Support

EVID FM 6.2具有高功率容量和出色的音质,音箱完全密封,是墙壁预埋式扬声器系统。它能完美地安装在大型房间,6"低音音箱与6"无源辐射器相组合,扩展了低音频响。

Specifications

Frequency Range (-10 dB) 52 - 20000
Nominal Impedance (Passive) 8
HF Transducer 1 inch Titanium dome tweeter

Max. SPL/1m (calc)² 115
Coverage (Nominal -6 dB) H 120
LF Transducer 6 inch with 6 inch passive radiator
Coverage (Nominal -6 dB) V 120
Power Rating 300
System Power Handling (Continuous/Program/Peak) 75//300
LF Power Handling 6 inch, plus 6-inch passive
HF Power Handling 1-inch (Titanium dome)
Enclosure Material Zinc Plated Metal
Sensitivity 1 W/1 m 90
Available Color 白色
Height 465
Width 256
Depth 100.3
Weight Net 5.8
Input Connections 4-pin Phoenix
Transformer Taps (Transformer Version Only) 7.5, 15, 30, 60 w at 70 v
