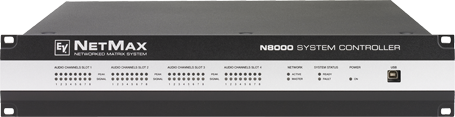

N8000 NetMax 300 mips数字矩阵控制器 by Electro-Voice


NetMax 300 mips数字矩阵控制器

  • 全面支持IRIS-Net软件;32通道数字矩阵总线;118 dB动态范围;完全支持CobraNet音频传输;支持以太网、RS-232、USB和CAN通信协议;每单元处理能力高达1000 MIPS;丰富的DSP功能;模块化机箱;集成监控、调度和自动编译DSP功能;支持完全编程的模拟和数字GPIO

EV NetMax N8000是灵活性极高的音频控制处理器,适用范围非常广。N8000安装在紧凑的2RU机箱中,可以根据现场需求配置多种方式。N8000矩阵控制器可以在现场配置为六个矩阵布局之一。N8000可以通过IRIS-Net进行配置和控制。此外,N8000还能通过集成的CANbus与任何兼容的IRIS-Net硬件进行通信,例如Electro-Voice远程控制功放系列。


Height 88.1
Width 483
Depth 381

Weight Net 7.37
Power Consumption³ 90 W max. (incl. 2 x AI-1, 2 x AO-1, 1 x CM-1 modules)
Network Control (IRIS-Net) Yes
Sample Rate 48 kHz internal
Data Format 24 Bit linear A/D and D/A conversion, 48 Bit processing
Internal Processing 2 DSPs Standard (150 MHz, 300 MIPS)1 DSP per Audio Module (100 MHz, 100 MIPS)DSP-1 Extension Module optional (+300 MIPS)
Network Interface Ethernet-10/100 MBit/s, RJ-45
CAN Bus Interface 2 x RJ-45
Serial Interface 2 Ports, 9pin D-Sub female (Remote Control)
GPIO Control Ports 2 x 6-pole Euro block4 Control Inputs (analog 0 - 10 V / logic control)3 Control Outputs (Relay contact to ground) 1 Fault Output (NC Relay contact) 3 Reference Outputs (+5 V / +10 V/ GND)
Cooling Left-to-right, 3-stage fan
Audio Network CobraNet CM-1 Module (optional)
FIR-Drive Yes
Total Harmonic Distortion 0.005
Signal-to-Noise Ratio (A-weighted) 115
Power Supply 100 - 240 VAC, 50/60 Hz
