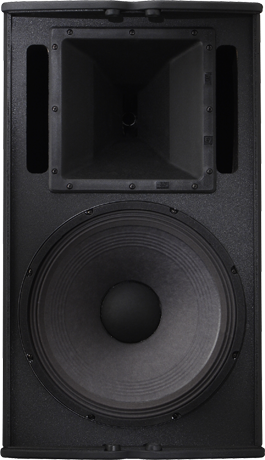

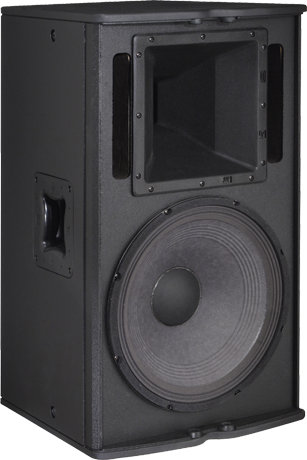

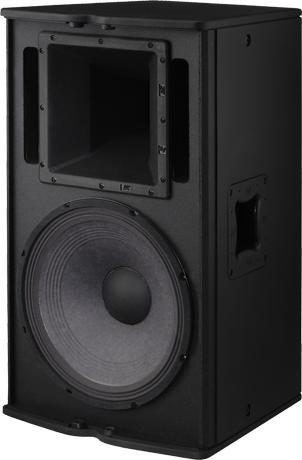

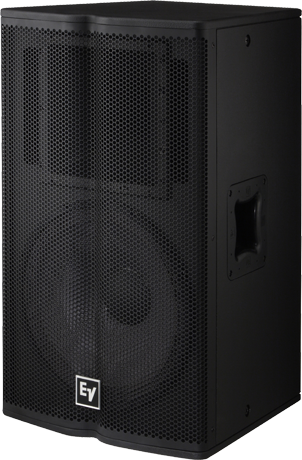

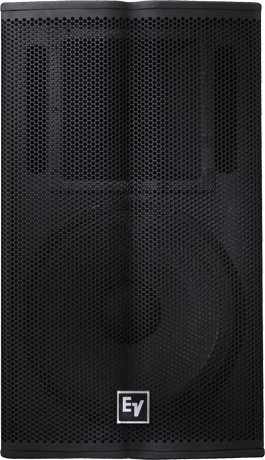

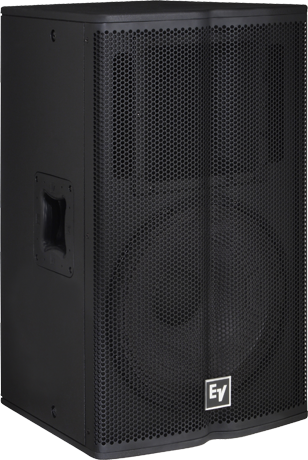

TX1152
15"两分频系统
- DH3 1.25”（32 mm）振膜；1”（25 mm）喉管钛振膜压缩驱动器；SMX2151 15”（381 mm）低频驱动器，对称式设计；高级四阶分频，带高频保护系统；覆盖范围60° x 40°；灵敏度100 dB，最高声压级133 dB；持续功率500 W，峰值功率2000 W；用于三角架安装的扬声器支孔；6个M10螺纹吊装点
TX1152对于要求提供15"驱动器低频下限的场所来说是最理想的选择，采用指向性控制出色的大型可旋转60 x 40号筒。
Specifications
| Frequency Range (-10 dB) | 45 - 20000 |
| Suspension | (6) 3/8-inch threaded inserts |
| Flying | Yes |
产品规格 |
|
| Minimum Impedance | 6.2 |
| Nominal Impedance (Passive) | 8 |
| HF Transducer | 1.25-inch DH3/2010A |
| Speaker Type | Full-Range |
| Woofer Size | 15 |
| Powered or Passive | Passive |
| Frequency Response (-3 dB)¹ | 65 - 20000 |
| Max. SPL/1m (calc)² | 133 |
| Coverage (Nominal -6 dB) H | 60 |
| LF Transducer | 15-inch SMX2151 |
| Coverage (Nominal -6 dB) V | 40 |
| Power Rating | 2000 |
| System Power Handling (Continuous/Program/Peak) | 500//2000 |
| Rotatable Horn | Yes |
| Crossover Frequency | 1750 |
| Enclosure Material | Plywood and MDF with EVCOAT |
| Available Color | 黑色 |
| Sensitivity 1 W/1 m | 100 |
| Height | 475 |
| Width | 439 |
| Recommended High-Pass Frequency | 40 |
| Depth | 655 |
| Internal Crossover | Yes |
| Weight Net | 27.6 |
| Family | Tour X |
| Input Connections | Parallel Neutrik® NL4 |
Videos
Testing the Tour-X
MBLV 2010 - Talking EV with Chris Hintz
MBLV 2010 - DJ Kool stops by the EV Booth
Tour X at NAMM 2009
Recommended Amplifiersffs
For optimal sound system performance, Electro-Voice recommends the following amplifiers for TX1152.
Dynacord C‑Series更多 |
Dynacord L‑Series更多 |
|
|---|---|---|
| Two-Channel | ✔ | ✔ |
| Multi-Channel | ||
| DSP | ✔ | ✔ |
| Direct Drive | ✔ | ✔ |
| OMNEO (Dante, OCA) | ||
| Installation | ✔ | |
| Live Sound | ✔ |
