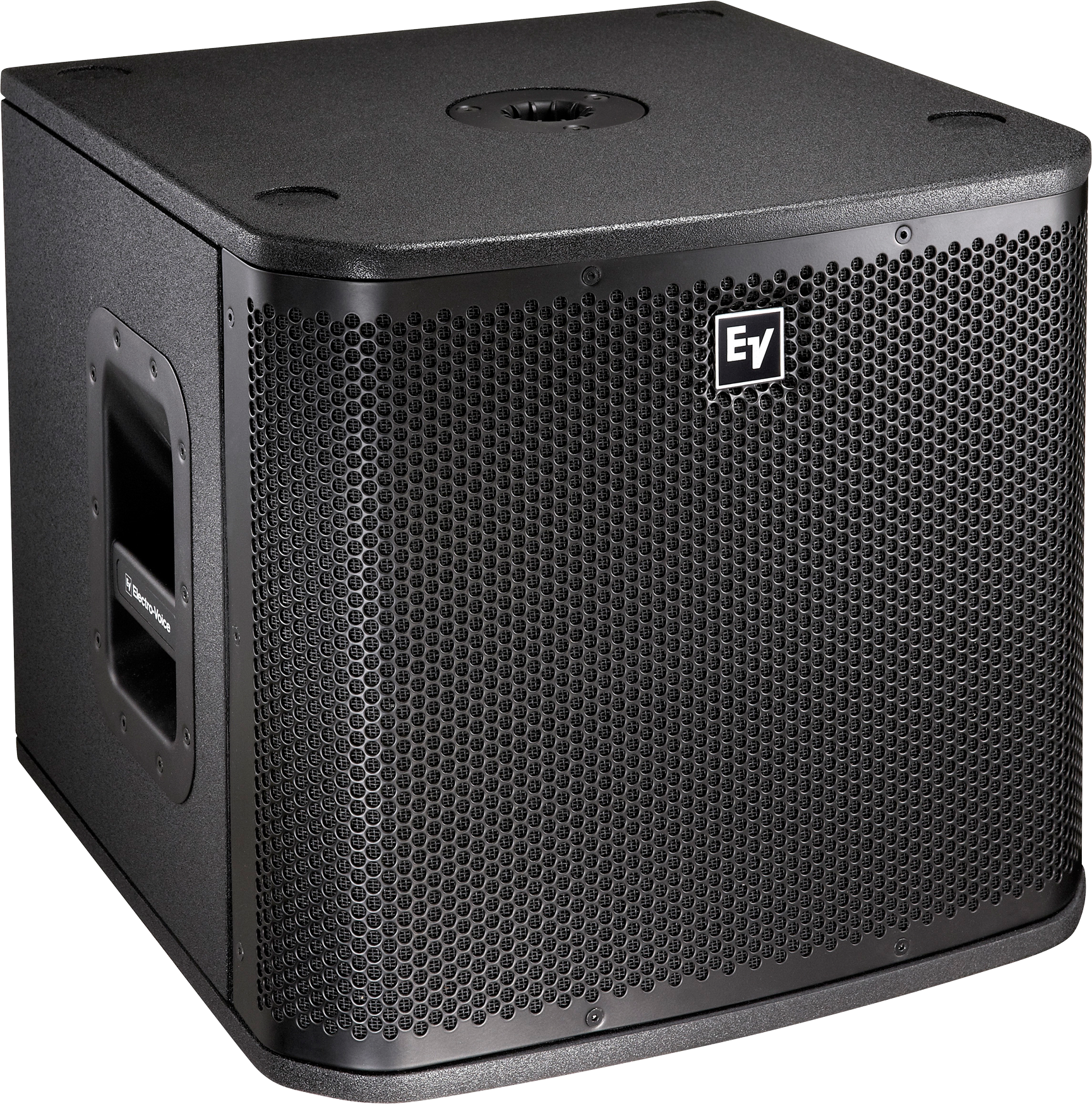

ZX1-Sub
12”无源超低频音箱
- 15mm胶合板箱体，内含支架，质感喷漆
- EVS-12S 12""低音单元，重现强劲、动人的低频响应
- 带用于全频系统使用的支撑孔
ZX1-Sub优化性能后，可用于很多EV扬声器，如ZX1、EVID和EVU，同时增强系统听到和感受到的低频下潜。是众多小型固定安装系统和现场音响系统的理想选择
Specifications
| Frequency Range (-10 dB) | 42 - 200 |
| Speaker Type | Subwoofer |
| Woofer Size | 12 |
产品规格 |
|
| Powered or Passive | Passive |
| Frequency Response (-3 dB)¹ | 53 - 125 |
| Max. SPL/1m (calc)² | 127 |
| LF Transducer | EVS-12S, 305 mm( 12") Woofer |
| System Power Handling (Continuous/Program/Peak) | 400 / 800 / 1600 |
| Power Rating | 1600 |
| Enclosure Material | 9-ply 15 mm plywood, internally braced with textured paint |
| Grille | 16 GA steel with black powder coat |
| Sensitivity 1 W/1 m | 94 |
| Height | 400 |
| Width | 444.5 |
| Depth | 457.2 |
| Weight Net | 19.8 |
| Shipping Weight | 25.4 |
| Family | ZxZxA |

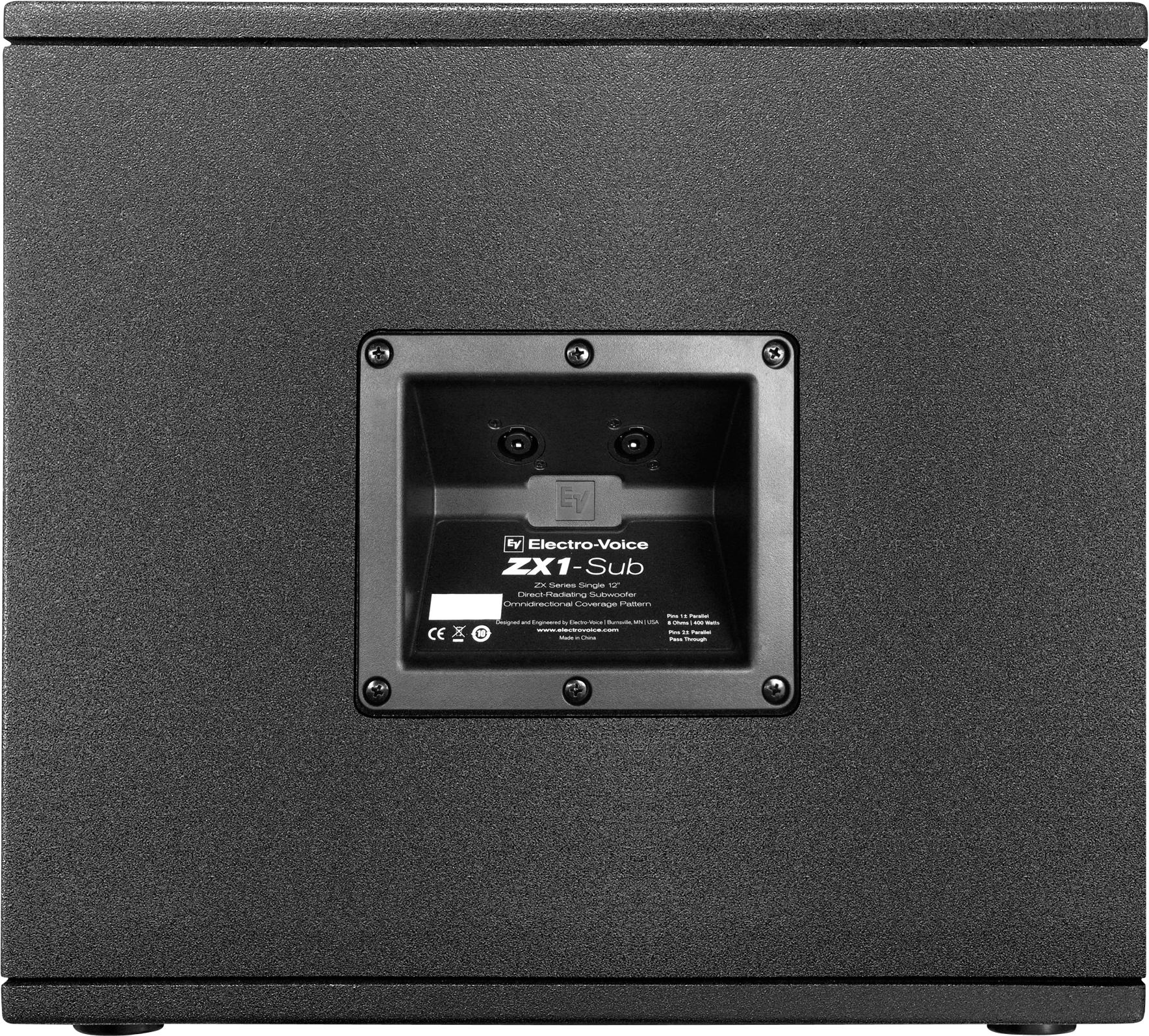

| Input Connections | NL4 style (2) |
| Nominal Impedance | 8 |
Recommended Amplifiers
For optimal sound system performance, Electro-Voice recommends the following amplifiers for ZX1-Sub.
Dynacord C‑Series更多 |
Dynacord IPX Series更多 |
Electro-Voice CPS Series更多 |
|
|---|---|---|---|
| Two-Channel | ✔ | ||
| Multi-Channel | ✔ | ✔ | |
| DSP | ✔ | ✔ | |
| Direct Drive | ✔ | ✔ | ✔ |
| OMNEO (Dante, OCA) | ✔ | ||
| Installation | ✔ | ✔ | ✔ |
| Live Sound |
