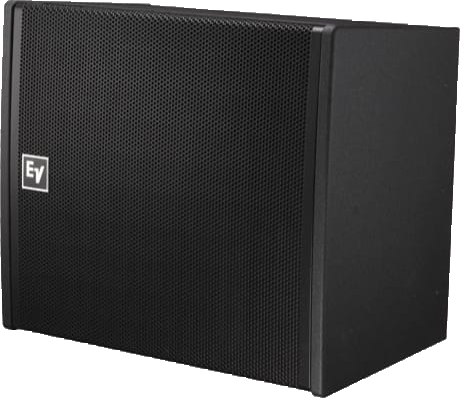

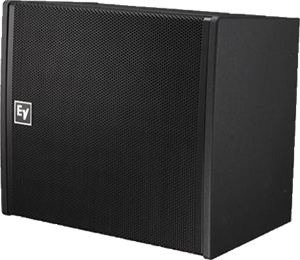

EVA-2082S 126

Dual‑element 120°x6° full‑range line‑array module

  • High performance, cost-effective
  • Ideal for fixed-installation line arrays
  • Two array elements in each module
  • Two 8-inch low-distortion woofers
  • Four 1.25-inch titanium diaphragm HF drivers
  • Advanced Hydra(R) plane wave generators
  • High sensitivity (104 dB) for high output
  • Super efficient: drive up to 8 boxes from a single amp channel
  • Sixth-order passive crossover with HF protection
  • Integrated hidden suspension hardware
  • Choice of three finishes: indoor, PI and fiberglass
  • Use PREVIEW Loudspeaker Software to simulate and validate designs

Specifications

Frequency Range (-10 dB)45 - 20000
SuspensionEVA Grid (Sold Separately)
Minimum Impedance12
Nominal Impedance (Passive)16
HF Transducer(4) DH2005, 1.25 In (32mm) Diaphragm Compression Driver
Speaker TypeFull-Range, Line-array

Frequency Response (-3 dB)¹60 - 19000
Max. SPL/1m (calc)²135
Coverage (Nominal -6 dB) H120
LF Transducer(2) EVS2008, 8 In (203mm) Driver
Coverage (Nominal -6 dB) V6
System Power Handling (Continuous/Program/Peak)350, 700, 1400
Crossover Frequency1740
Enclosure MaterialBirch plywood
Grille16 GA Galvanneal, Powder-coated (PI Version - Stainless Steel with Hydrophobic Cloth
Sensitivity 1 W/1 m104
Height514.4
Width596.9
Recommended High-Pass Frequency50
Depth358.2
Weight Net37.1
Input ConnectionsPhoenix/Euroblock style screw terminals
Passive Power Handling1400
