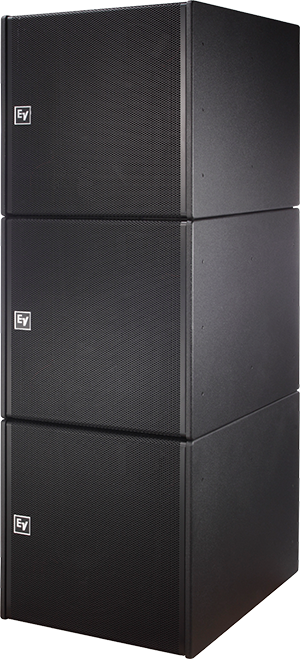

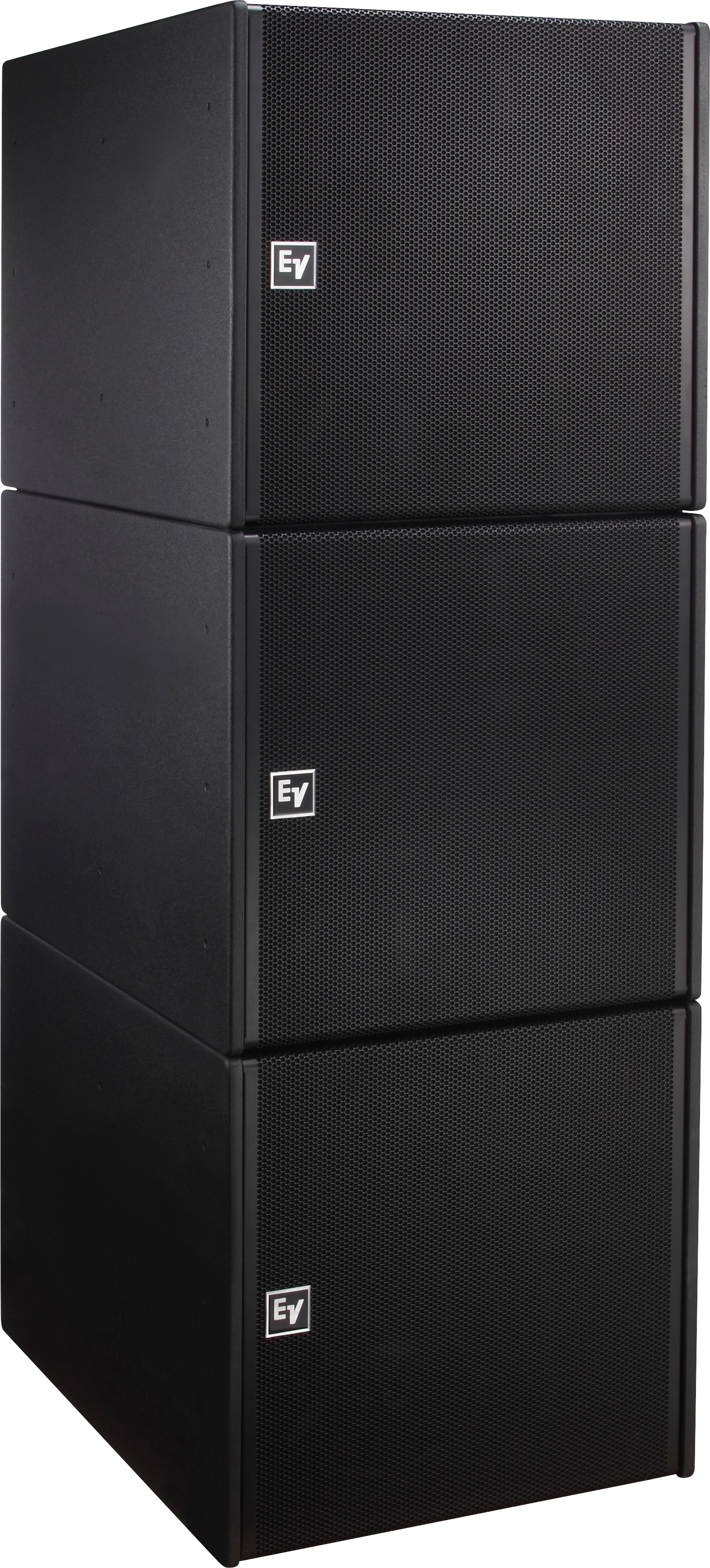

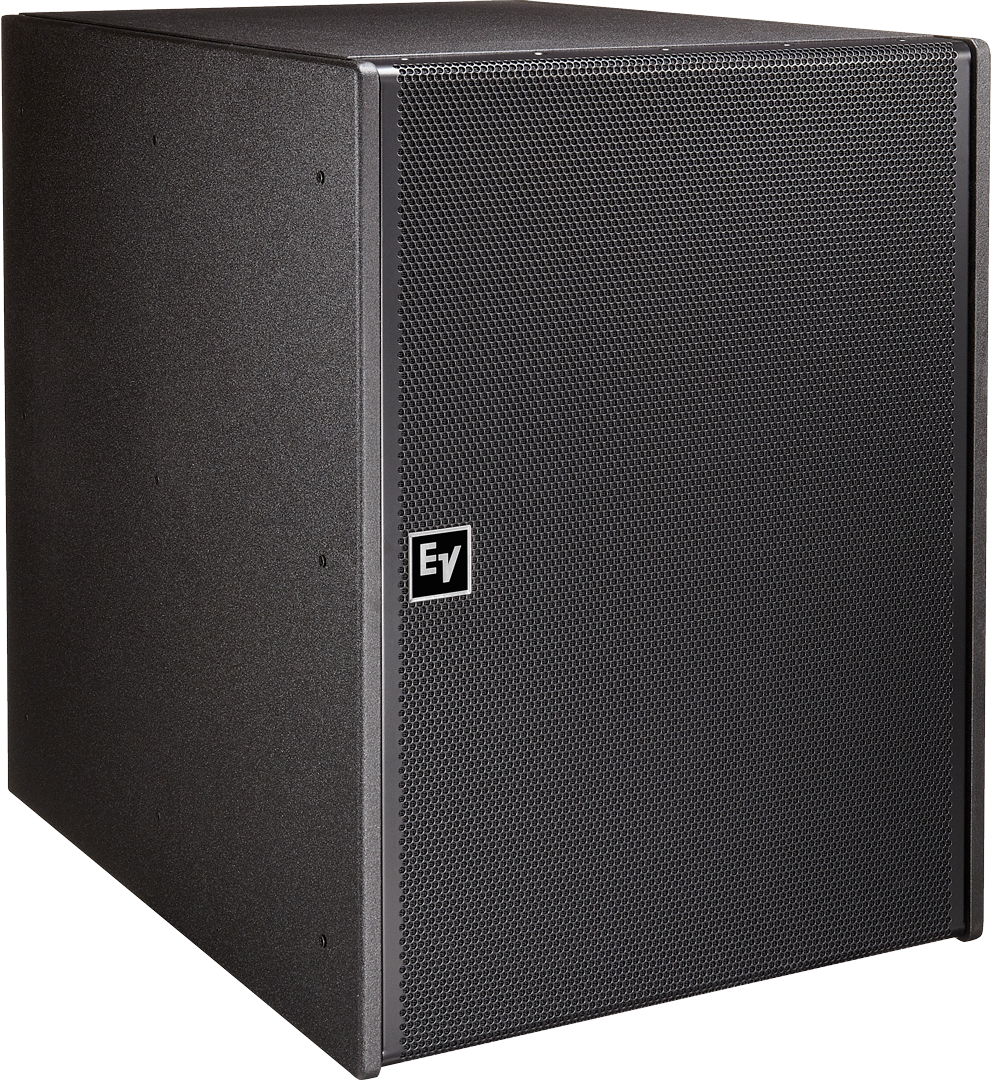

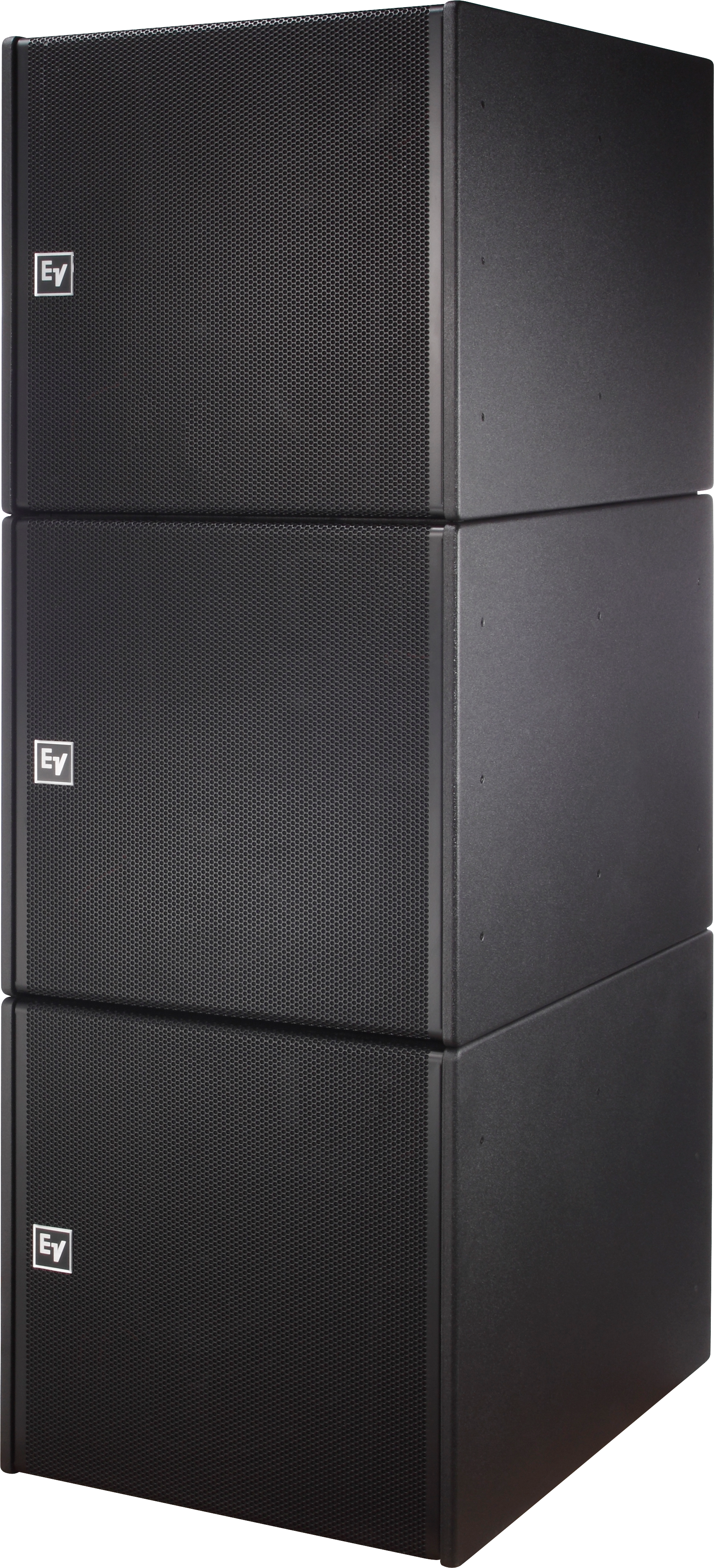

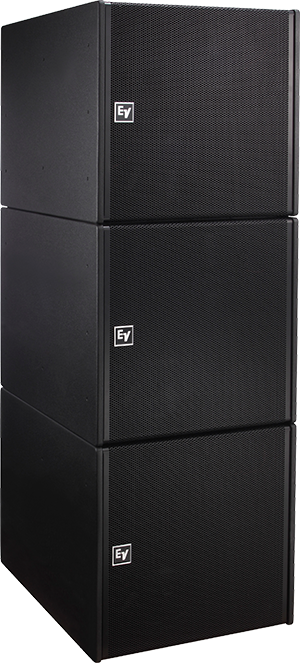

EVA-2151D

Dual 15" subwoofer line array element

Summary & Images Specs Where to buy Downloads & Support
  • High power, front loaded

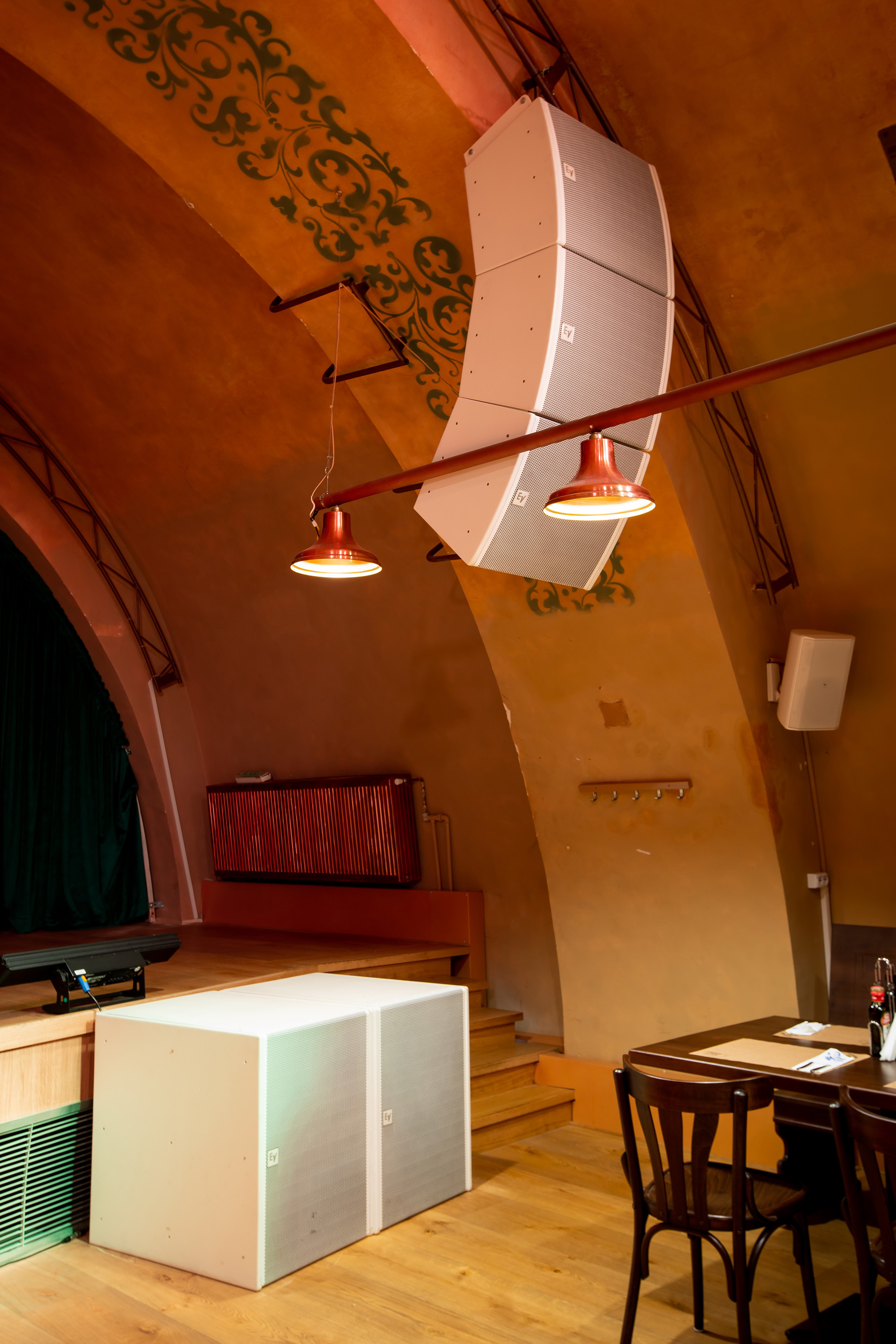

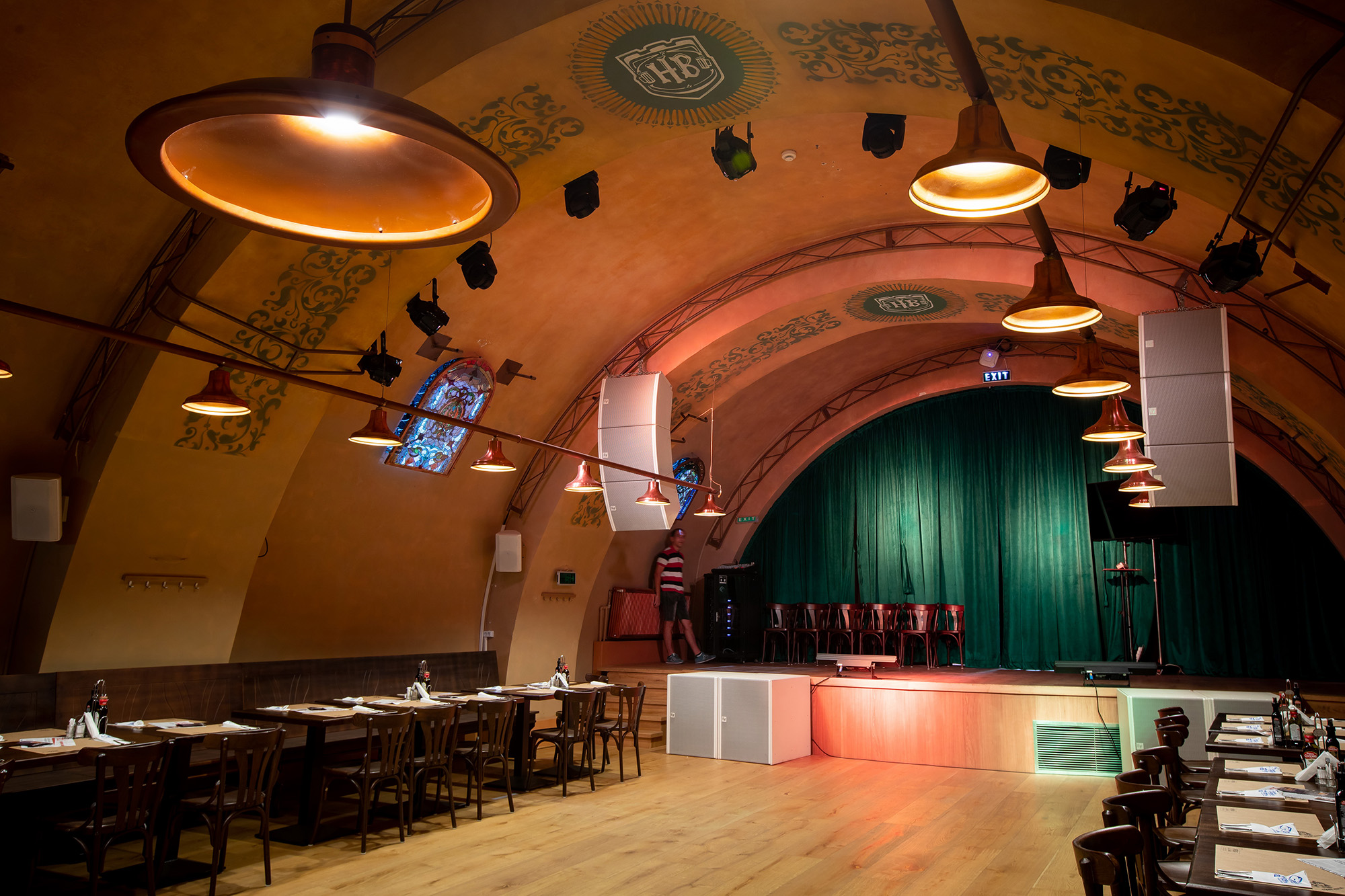

  • Ideal for fixed installations
  • Seamless rigging with EVA line arrays
  • DVX3159A woofer for low distortion at high SPL
  • Steel-reinforced 13-ply plywood enclosure
  • Two DVX3159A woofers for low distortion at high SPL
  • 100 dB sensitivity (1 W / 1 m half space)
  • Power handling: 1000 W continuous, 4000 W peak
  • 130/136dB maximum SPL (continuous/peak)
  • Choice of two finishes: EVCoat and PI

Technische Daten

Frequency Range (-10 dB) 28 - 200kHz (Half space)
Suspension EVA grid (sold separately)
Minimum Impedance 2.8Ω

Nominal Impedance (Passive)
Speaker Type Subwoofer, Line-array
Frequency Response (-3 dB)¹ 200Hz (Half space)
Max. SPL/1m (calc)² 136dB (Half Space)
Coverage (Nominal -6 dB) H 360°
Coverage (Nominal -6 dB) V omnidirectional°
LF Transducer 2 x DVX3159A
System Power Handling (Continuous/Program/Peak) 1000/2000/4000Watts
Crossover Frequency 100Hz (active)
Enclosure Material Birch Plywood
Grille 16 GA Galvanneal, powder-coated; PI Version: stainless steel with hydrophobic cloth
Sensitivity 1 W/1 m 100dB (Arithmetic average, 55-100Hz, half space measurement. )
Height 930.4mm (36.63")
Recommended High-Pass Frequency 32Hz (24dB per Octave BW, Half Space)
Width 597mm (23.5")
Depth 792.5mm (31.2")
Weight Net 80.8kg (178.13 lbs)
Passive Power Handling 4000W peak
Input Connections Phoenix Euroblock
