ND44
Dynamic tight cardioid instrument microphone
- Excellent acoustic control
With aggressive and punctuated sound - Large-diaphragm dynamic capsule
Creates a rich and detailed frequency response - Easy mic placement with low-profile pivoting head
Low profile and dual pivot points solve virtually any mic placement challenge - DRC-2 drum rim clamp with easy-to-use finger loop design
Clamp material is soft and compliant and its handy finger loop allows a firm grip and simple motion - Humbucking coil guards against line hum
Use with confidence near speaker cabinets and EMF-generating equipment racks - Memraflex grille resists denting
Durable tight-mesh grilles withstand extraordinarily rough treatment

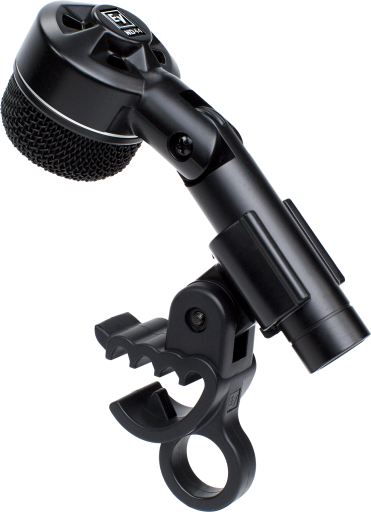

The ND44 is a robust, high-performance, large-diaphragm dynamic instrument microphone with a tight cardioid polar pattern. Designed for excellent performance on drums and other rhythm section instruments, the ND44 capsule is precisely tuned to deliver the aggressive and punctuated sound these instruments produce, as well as excellent isolation from the sound of other nearby instruments. Its rotating low-profile head and drum rim clamp make mic placement easy anywhere on a drum set.
Specifications
| Connector Type | 3-pin XLR |
| Height | 139 |
| Weight Net | 0.194 |
| Shipping Weight | 0.488 |
| Family | ND Series |
| Wired/Wireless | Wired |
Specifications | |
| Mic Type | Instrument |
| Diameter (Max) | 48.5 |
| Element | Dynamic |
| Impedance, Low-Z balanced | 350 |
| Open Circuit Voltage | 2.4 |
| Case Material | Die cast zinc handle, ABS polycarbonate head |
| Finish | Black polyurethane paint |
| Power Requirement | Passive |
| Audio Frequency Response | 80 – 16,500 |
| Maximum SPL | > 140 |
| Polar Pattern | Tight Cardioid |
Videos
ND Series Microphones
ND44 Dynamic Tight Cardioid Instrument Microphone
Downloads
Technical Documentations
Certification/Regulatory
Technische Daten
| Name | Language & Download |
|---|---|
| ND44 Engineering Data Sheet | en |
Service Policies
White Paper
| Name | Language & Download |
|---|---|
| Audio 101 - Basic Audio Terminology | en |
| Audio 101 - Loudspeaker Basics | en |
| Audio 101 - Microphone Basics | en |
| Microphone Facts- Axial Response | en |
| PA Bible 03: Microphone Types | en |
| PA Bible 08: Microphone Techniques | en |
| PA Bible 15: Barrier Miking | en |
| The EV PA Bible | en |
| The PA Bible Chapter Zero | en |
