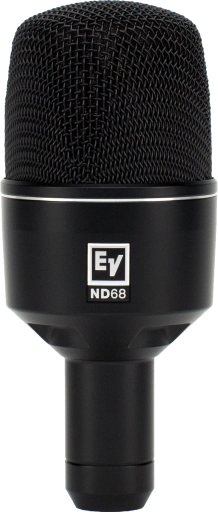

ND68
Dynamic supercardioid bass drum microphone
- Excellent acoustic isolation
With deep lows and top-end punctuation - Large-diaphragm dynamic capsule
Creates a rich and detailed frequency response - Extremely high SPL handling capability
Manages close miking of high SPL transients and RMS wave fronts up to 144 dB SPL - Humbucking coil guards against line hum
Use with confidence near speaker cabinets and EMF-generating equipment racks - Memraflex grille resists denting
Durable tight-mesh grilles withstand extraordinarily rough treatment
The ND68 is a robust, high-performance, large-diaphragm dynamic supercardioid kick drum and low-frequency instrument microphone. Its supercardioid polar pattern provides excellent acoustic isolation from nearby instruments, and its voicing characteristics deliver a deep low end, relaxed midrange, as well as high-frequency content for aggressive top-end punctuation.
Specifications
| Connector Type | 3-pin XLR |
| Height | 143 |
| Weight Net | 0.374 |
| Shipping Weight | 0.703 |
| Family | ND Series |
| Finish | Black polyurethane paint |
Specifications | |
| Power Requirement | Passive |
| Audio Frequency Response | 20 – 11,000 |
| Maximum SPL | > 140 |
| Polar Pattern | Supercardioid |
| Wired/Wireless | Wired |
| Mic Type | Instrument |
| Diameter (Max) | 60.8 |
| Element | Dynamic |
| Impedance, Low-Z balanced | 150 |
| Open Circuit Voltage | 0.8 |
| Case Material | Die cast zinc |
