PREVIEW Loudspeaker Software
Quick, precise coverage prediction for EV loudspeakers

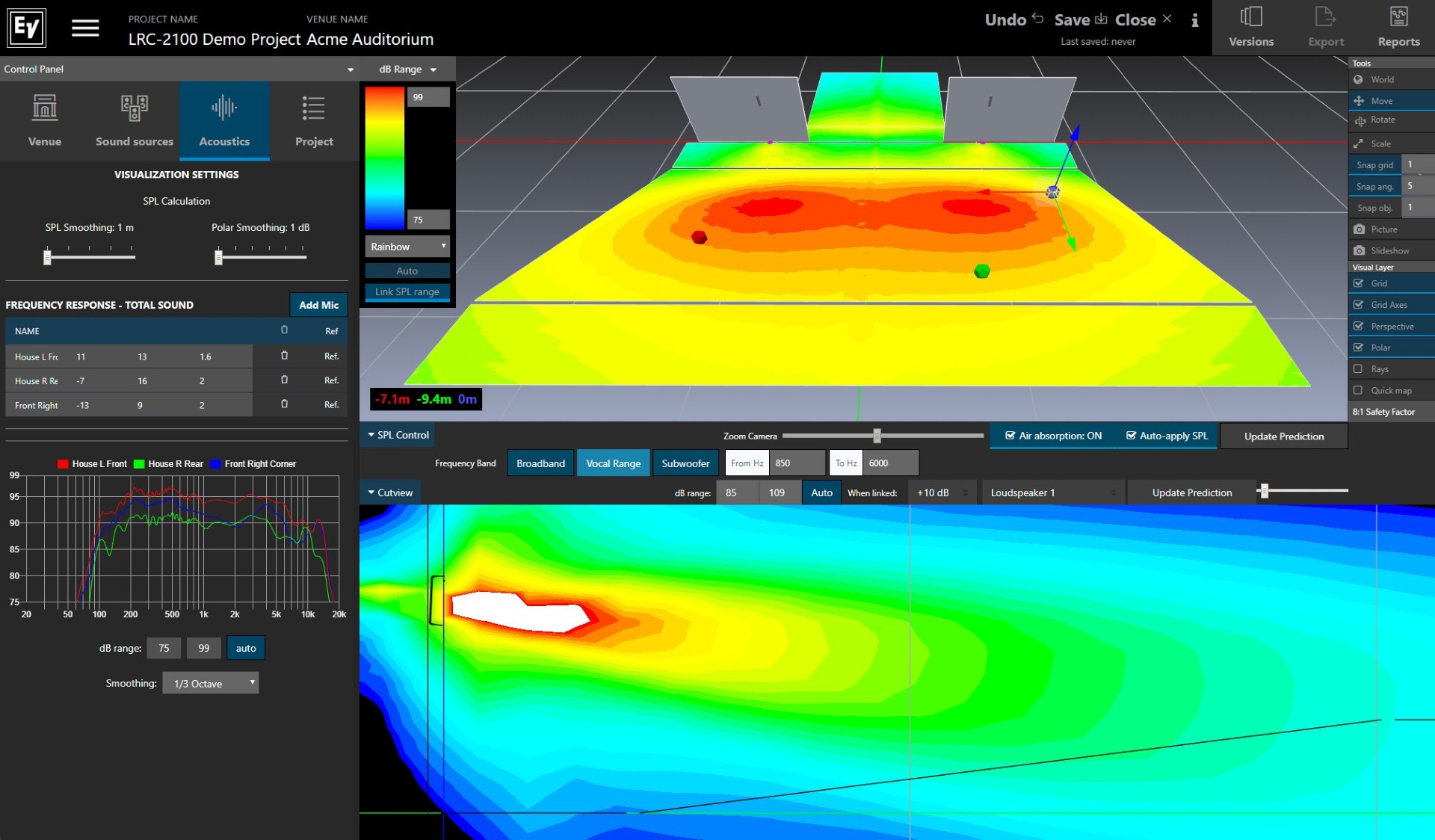

- Easy, exact sound system setup with visualizations of coverage, SPL and frequency response
- Full-color 3D interface with user-friendly, flexible tools and streamlined workflow
- Venue geometry import and construction wizards
- Precise mechanical load calculations
- Array aiming and auto-splay optimizer
- Spectrogram shows how levels at each frequency change with distance
- Virtual microphones predict the frequency response anywhere in the venue
- Report generation with detailed acoustical and mechanical information
PREVIEW Loudspeaker Software is a tool to help you select and set up Electro-Voice loudspeakers for the best coverage in any venue. The full-color 3D interface helps specifiers, designers and audio engineers to quickly find the optimum loudspeaker, amplifier drive and delay requirements, and other factors that will ensure that both line-array and point-source loudspeakers deliver the best possible performance in every deployment. For line-array designs, PREVIEW will only allow mechanically valid combinations of cabinets and rigging hardware, depending on the selected safety factor.
What's New in PREVIEW 3.2
- New Products Added: The full LRC family is now integrated into PREVIEW, including the largest model: LRC-2100
- New Software Features:
- Grouped point sources can now be mirrored across an axis, further speeding up the workflow for large systems
- All-new Sound Sources interface for creating EVA line array configurations - Performance Improvements:
- Significantly reduced calculation time for large projects with many microphone measurement locations
Specifications
| System Requirements | |
| Supported Operating Systems | Windows 10, Windows 8.1 or Windows 8*1
(Professional/Enterprise/Ultimate Editions) macOS Catalina (10.15.x) macOS Big Sur (11.x.x) macOS Monterey (12.x.x) |
| CPU | Minimum: 4 cores; Recommended: i7 8 cores
Apple M1 CPUs are supported via Rosetta 2 |
| Memory | 8 GB RAM required; 32 GB RAM recommended |
| Prerequisites | For Windows Installations: .NET Framework and Visual C++ redistributable are installation prerequisites
For Mac OS Installations: .NET Framework (Mono Distribution) is a prerequisite. The component automatically references its own custom distribution without conflicting with existing installations. |
| HDD | We recommend a solid state hard drive (SSD) for the best I/O performance. PREVIEW and the operating system should both be installed on the SSD. |
