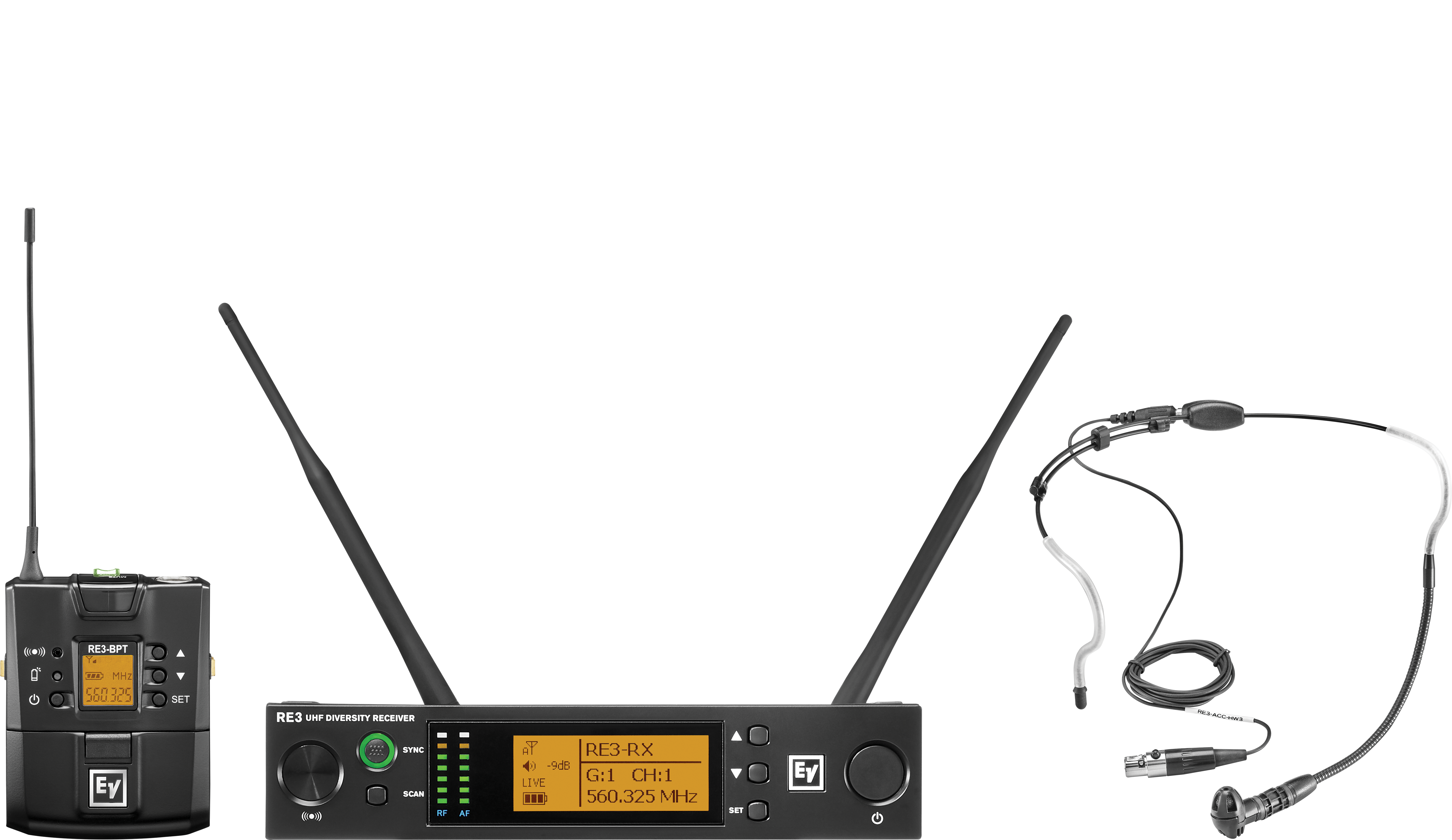

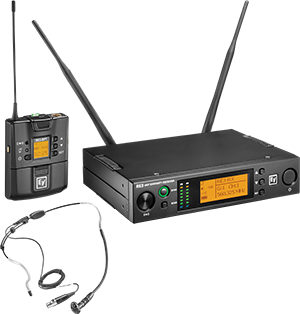

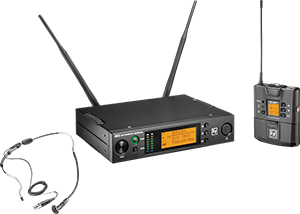

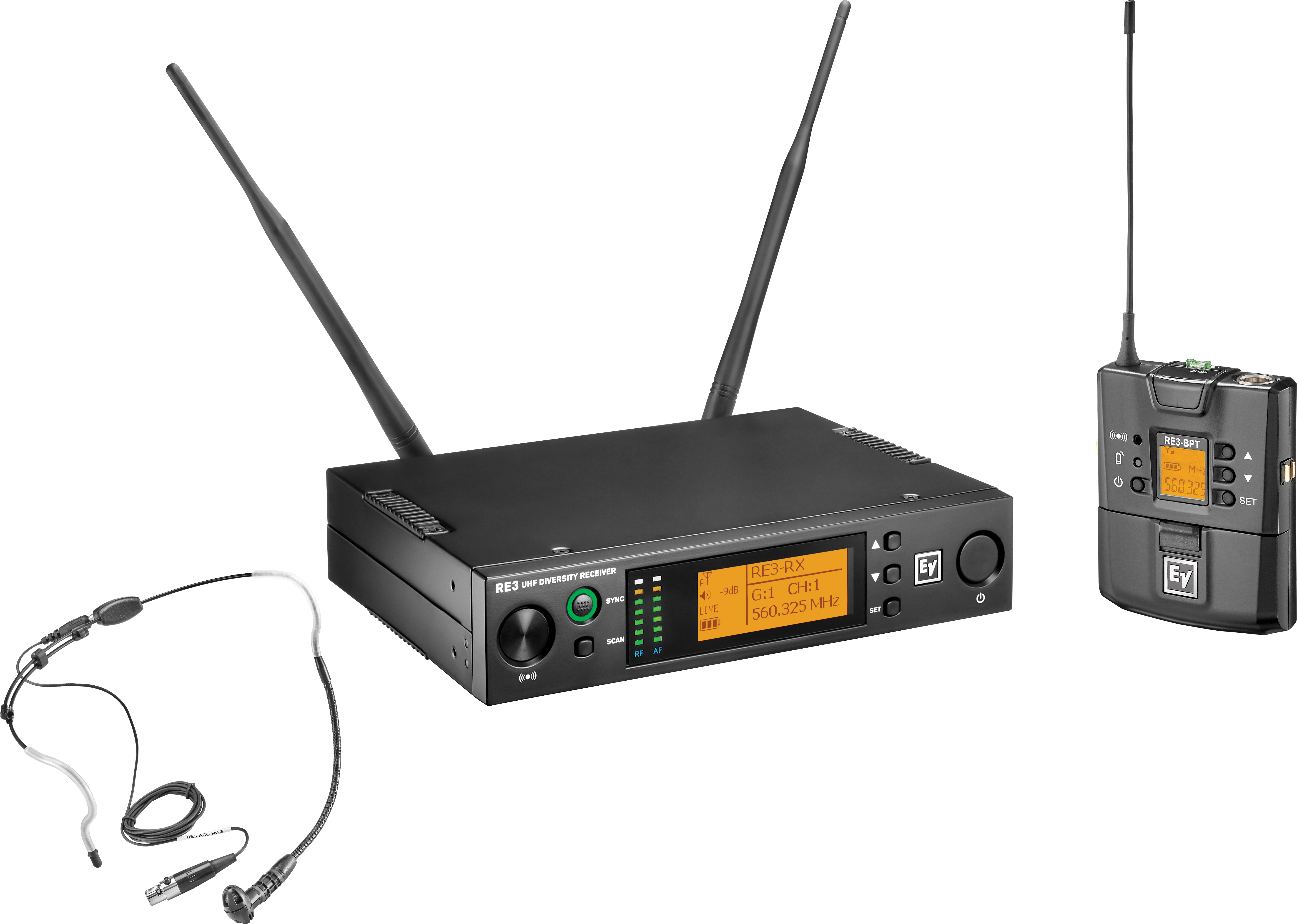

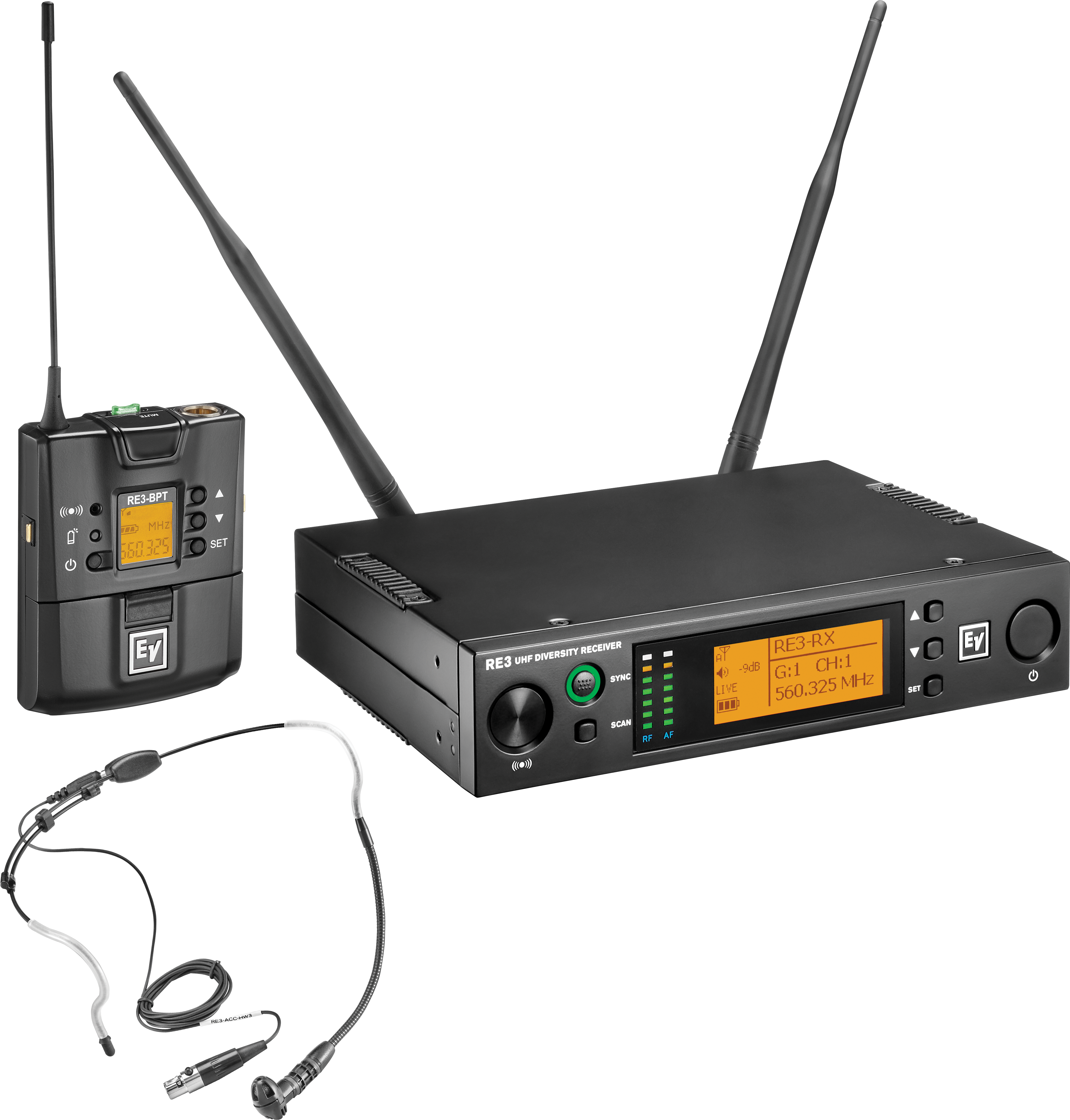

Bodypack UHF wireless set containing the HW3 supercardioid headworn microphone voice performance, presentations, and athletic instruction. The HW3’s sound is crisp and natural, and the supercardioid polar pattern provides superb acoustic isolation and gain before feedback, making it an ideal microphone even in high SPL sound reinforcement applications.
Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust bodypack transmitter and diversity receiver delivers rock-solid system performance.
HW3 Supercardioid Headworn Microphone
BAND DETAILS | |||||
Band name | 5L | 5H | 6M | 8M | T |
Bandwidth limits (MHz) | 488 – 524 | 560 – 596 | 653 – 663 | 823 – 832 863 – 865 | 803 - 806 |
Tuning bandwidth | 36 MHz | 36 MHz | 10 MHz | 11 MHz | 3 MHz |
Selectable frequencies | 1440 | 1440 | 400 | 440 | 120 |
Transmit output power (mW) | 10 and 50 | 10 and 50 | 10 and 20 | 10 | 10 and 50 |
Coverage | Global | Global | Global | Select Europe | Thailand only |
