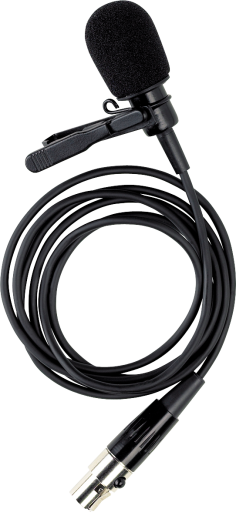

RE92Tx
Directional lavalier microphone
- Back-electret condenser element
- Cardioid polar pattern
- Integrated 6-foot (180cm) cable
- TA4F connector is compatible with all EV bodypack transmitters
- Use with TXA for wired XLR applications
The RE92Tx is a miniature professional-quality electret condenser lavalier microphone with a cardioid pickup pattern. Designed for speech, it is an excellent choice for use in presentations, houses-of-worship, broadcast, or theater applications.
Technische Daten
| Maximum SPL (1% THD) | 135dB |
| Connector Type | TA4F |
| Height | 10.5mm (0.41") |
Technische Daten |
|
| Weight Net | 0.81oz (23g) |
| Family | RE Series Installation |
| Case Material | Metal |
| Finish | Non-reflecting Black |
| Current Consumption | < 500 uA |
| Polar Pattern | Cardioid |
| Wired/Wireless | Wireless |
| Mic Type | Lavalier |
| Diameter (Max) | 24mm (0.94") |
| Element | Back Electret Condenser |
| Open Circuit Voltage | 5.6mV/Pascal |
