ELX115
15" passive loudspeaker
- More power, fuller sound for larger rooms
- EVS-15K woofer
- 1.5-inch DH-1K titanium HF compression driver
- 50 Hz – 20 kHz frequency range
- 90° x 50° coverage-pattern waveguide
- 60° Monitor Angle
- 134 dB max SPL
- Power handling: 400 W continuous, 1600 W peak
- Braced 15mm plywood enclosure
- Pole mount or stack with Live X Subwoofers
- Black textured finish
A powerful step up from the ELX112, the ELX115 features a 15” woofer that delivers extended low-frequency response for bigger sound in larger rooms.
Specifications
| Freq. Response (-3 dB) | 75 Hz - 18 kHz¹ |
| Freq. Range (-10 dB) | 50 Hz - 20 kHz¹ |
| Axial Sensitivity | 95 dB |
Specifications | |
| Max. Measured SPL³ | 134 dB |
| Recommended HP Freq. | 40 Hz |
| Coverage (Horiz. x Vert.) | 90° x 50° |
| Power Handling | 400W Continuous, 1600W Peak |
| LF Transducer(s) | (1) EVS-15K, 381mm (15") Woofer |
| HF Transducer | DH-1K, 39mm (1.5") Titanium Diaphragm Compression Driver |
| Crossover Frequency | 1.7 kHz |
| Nominal Impedance | 8 Ohms |
| Minimum Impedance | 7.4 Ohms |
| Connectors | Dual NL4 |
| Enclosure Material | 9-ply, 15mm Plywood, Internally Braced, with Texured Paint |
| Grille | 18GA Steel with Black Powdercoat |
| Dimensions (H x W x D) | 708mm x 432mm x 382mm (27.89" x 17.02 x 15.05"), |
| Net Weight | 21.9 kg (48.2 lbs) |
| Shipping Weight | 26.6 kg (58.6 lbs) |
| Accessories | TSS-1, Aluminum Tripod Stand, TSP-1, Tripod Kit, Includes (2) Tripod Stands and Carrying Case, ASP-1, Steel Subwoofer Stand |
² Half Space Measurement
³ Max SPL is measured at 1m using broadband pink noise at rated peak power rating.
Similar Products
Compatible Products
Recommended Amplifiers
For optimal sound system performance, Electro-Voice recommends the following amplifiers for ELX115.
Dynacord C‑SeriesLearn More |
Dynacord L‑SeriesLearn More |
|
|---|---|---|
| Two-Channel | ✔ | ✔ |
| Multi-Channel | ||
| DSP | ✔ | ✔ |
| Direct Drive | ✔ | ✔ |
| OMNEO (Dante, OCA) | ||
| Installation | ✔ | |
| Live Sound | ✔ |
Downloads
| Name | Language | Size | Date |
|---|---|---|---|
| ProSound Loudspeakers and Electronics Catalog | EN | 15.43MB | 04.02.2019 |
| Retail catalog EMEA | EN | 59.07MB | 11.10.2020 |
| Live X brochura Português | PT | 1.71MB | 09.27.2012 |
| LiveX产品宣传册 | ZH | 956KB | 04.27.2012 |
| Live X Brochura Português | PT | 4.14MB | 02.18.2011 |
| Live X Broschüre | DE | 526KB | 06.27.2011 |
| Live X Folleto | ES | 885KB | 11.13.2013 |
| Retail catalog EMEA | DE | 29.85MB | 11.10.2020 |
| Name | Size | Date |
|---|---|---|
| ELX Passive Speaker Family Declaration of Conformity | 498KB | 12.19.2020 |
| Elx112P, Elx115P, Emc, Safety, Cb Certificate No. E/Ec3591101215223, 2010-12-15 | 416KB | 12.18.2019 |
| Environmental Compliance Document | 148KB | 10.03.2017 |
| Etl, Elx112P, Elx115P, Authorization To Mark (Atm), Report No. 131217022Szn-001 Certificate | 823KB | 12.18.2019 |
| Powerplay (Live-X), Elx112P, Elx115P, Emc, Certificate No. Cn21354, 2011-08-01 | 222KB | 12.18.2019 |
| Name | Language | Size | Date |
|---|---|---|---|
| Live X Passive Engineering Data Sheet | EN | 209KB | 10.02.2017 |
| Name | Language | Size | Date |
|---|---|---|---|
| Live X flyer español | ES | 1.15MB | 09.13.2012 |
| Live X folheto Português | PT | 308KB | 09.27.2012 |
| Name | Language | Size | Date |
|---|---|---|---|
| Live X Passive Loudspeaker Owners' Manual | EN | 1.64MB | 03.22.2012 |
| Name | Size | Date |
|---|---|---|
| MG 0065edited | 895KB | 03.29.2013 |
| MG 7374edited | 833KB | 03.29.2013 |
| MG 9732 AA3 | 5.21MB | 03.29.2013 |
| ELX App 06 | 4.89MB | 11.16.2016 |
| IMG 0044 | 1.41MB | 09.07.2011 |

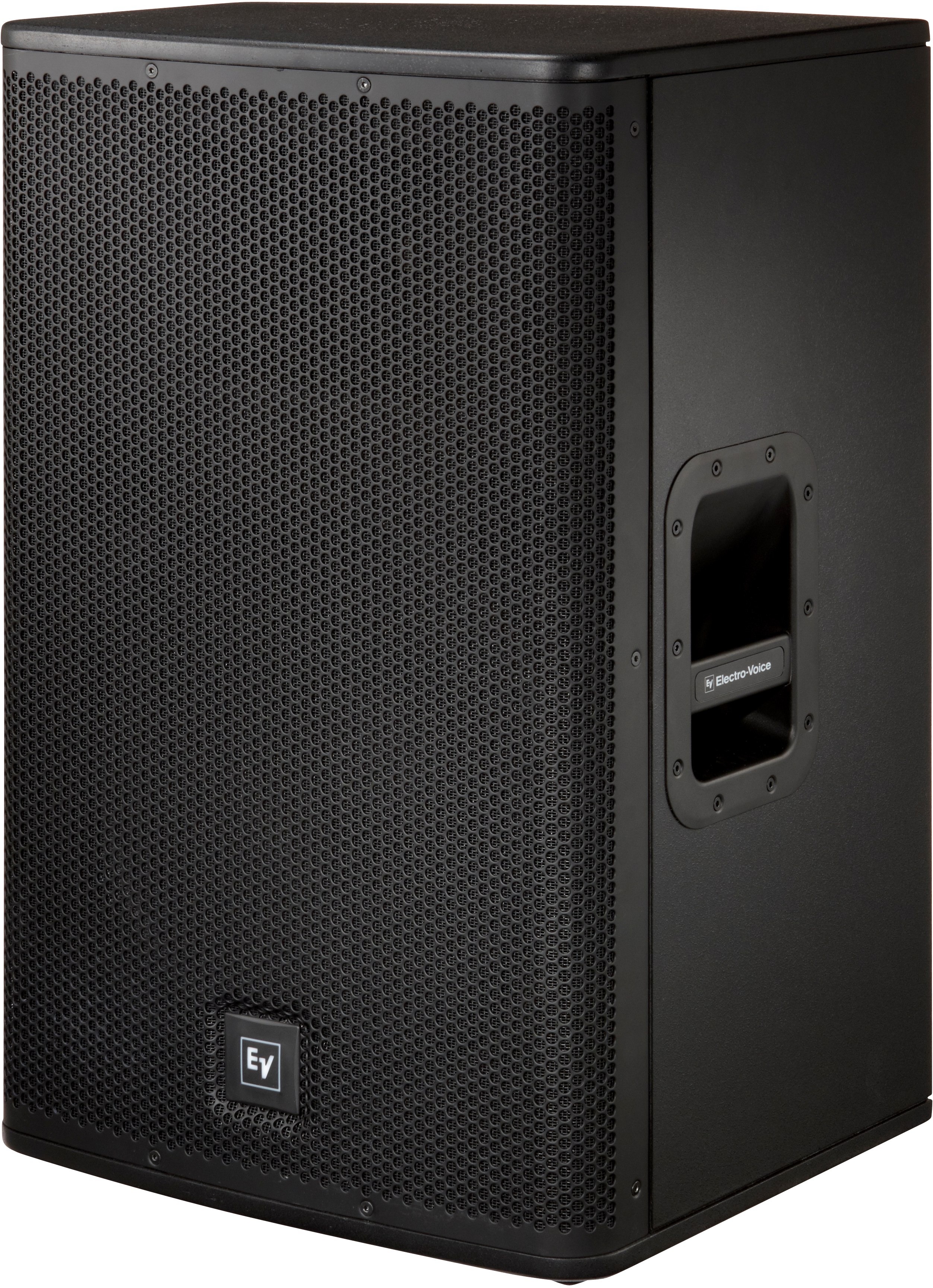

LiveX 115Grle

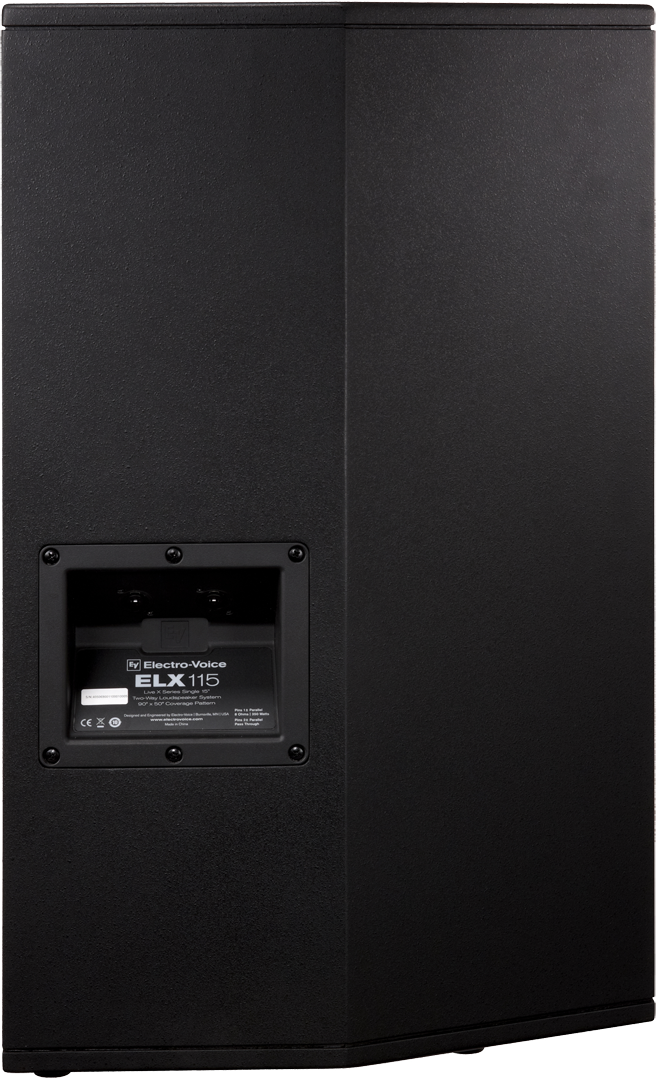

LiveX 115an
LiveX 115ba

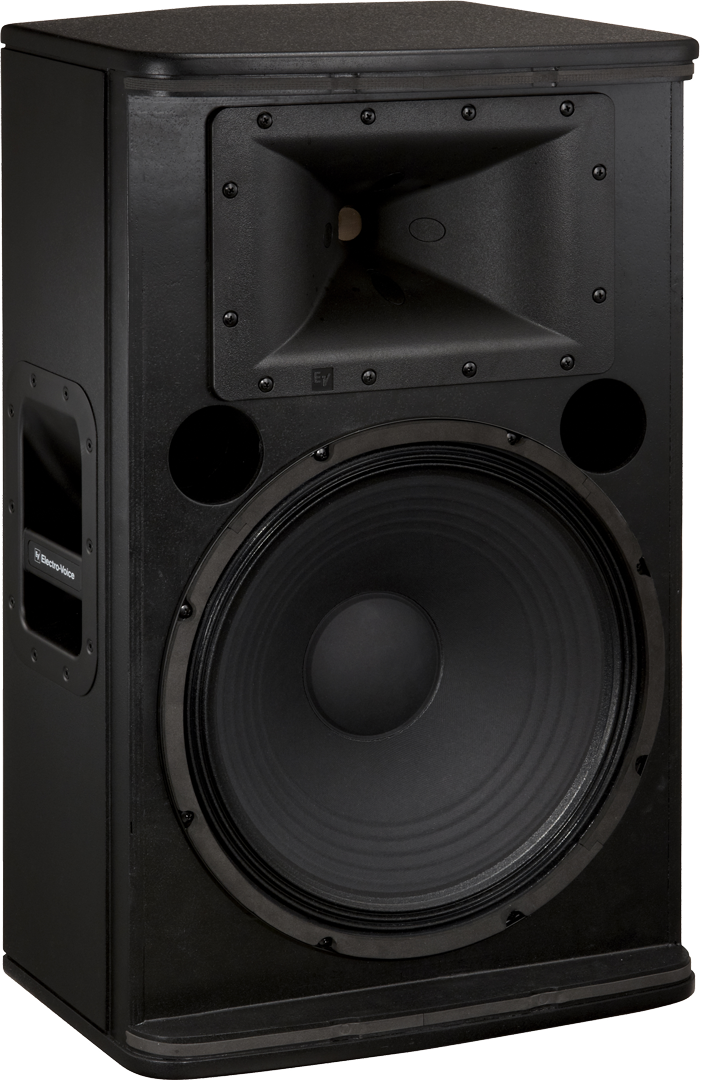

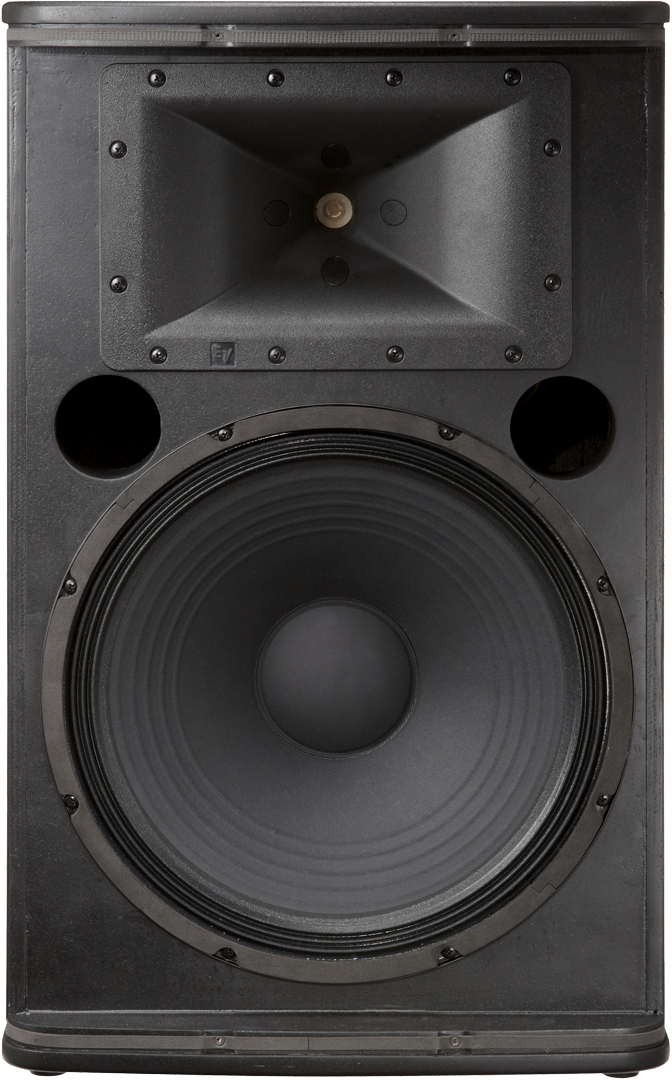

LiveX 115fr

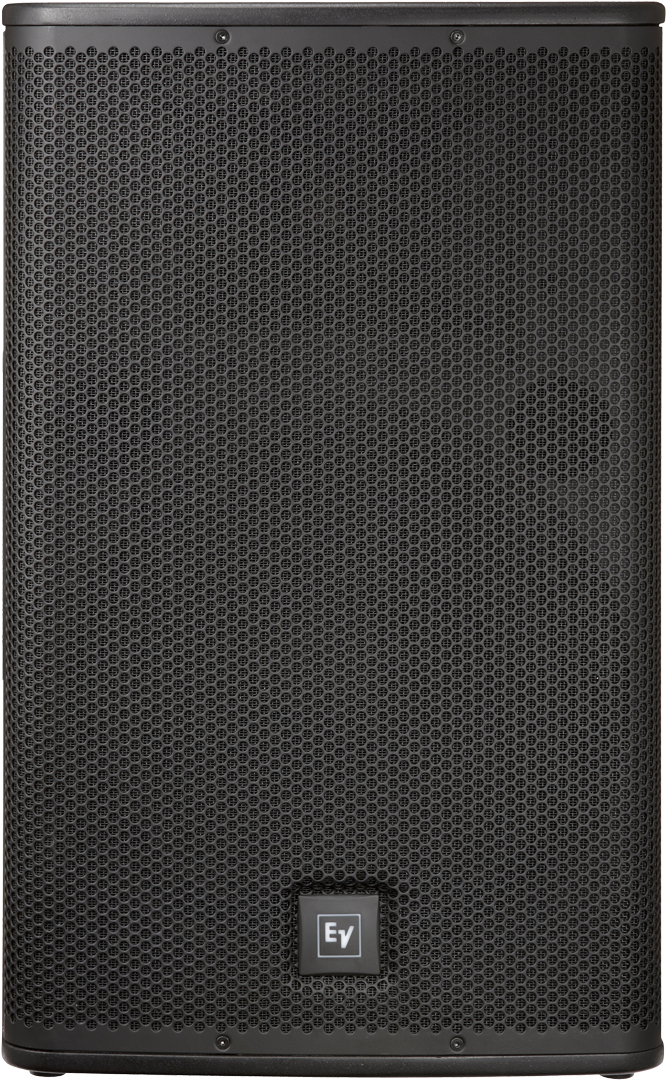

LiveX 115Grfr

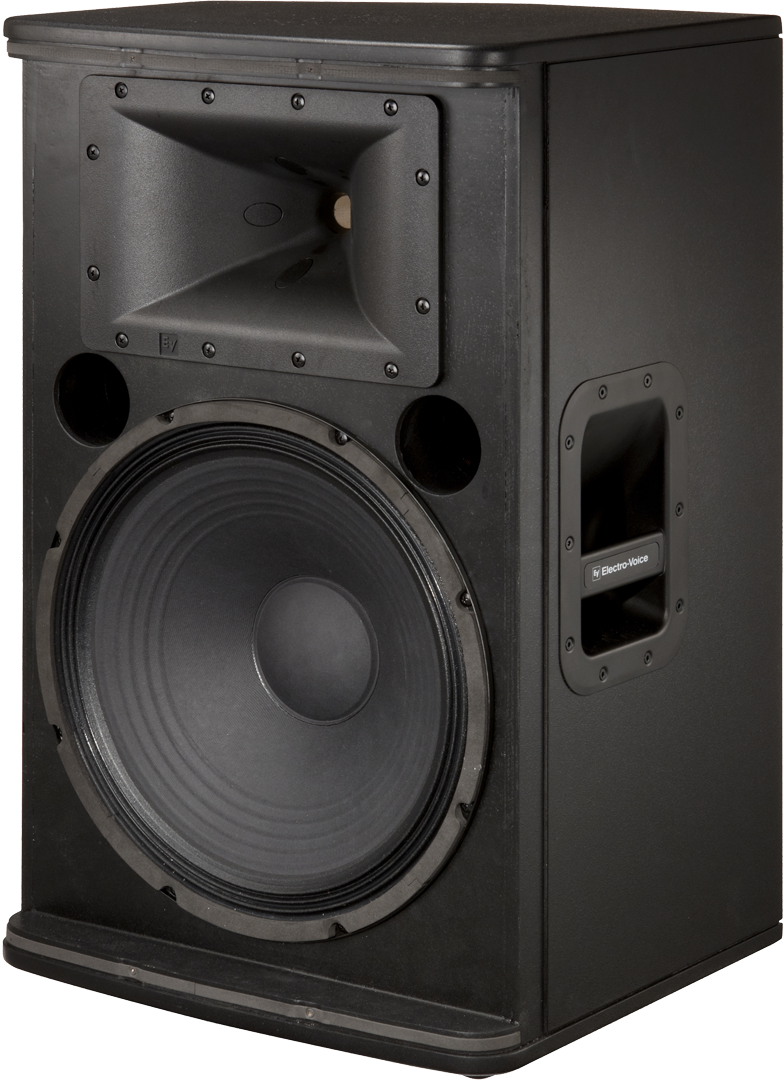

LiveX 115le

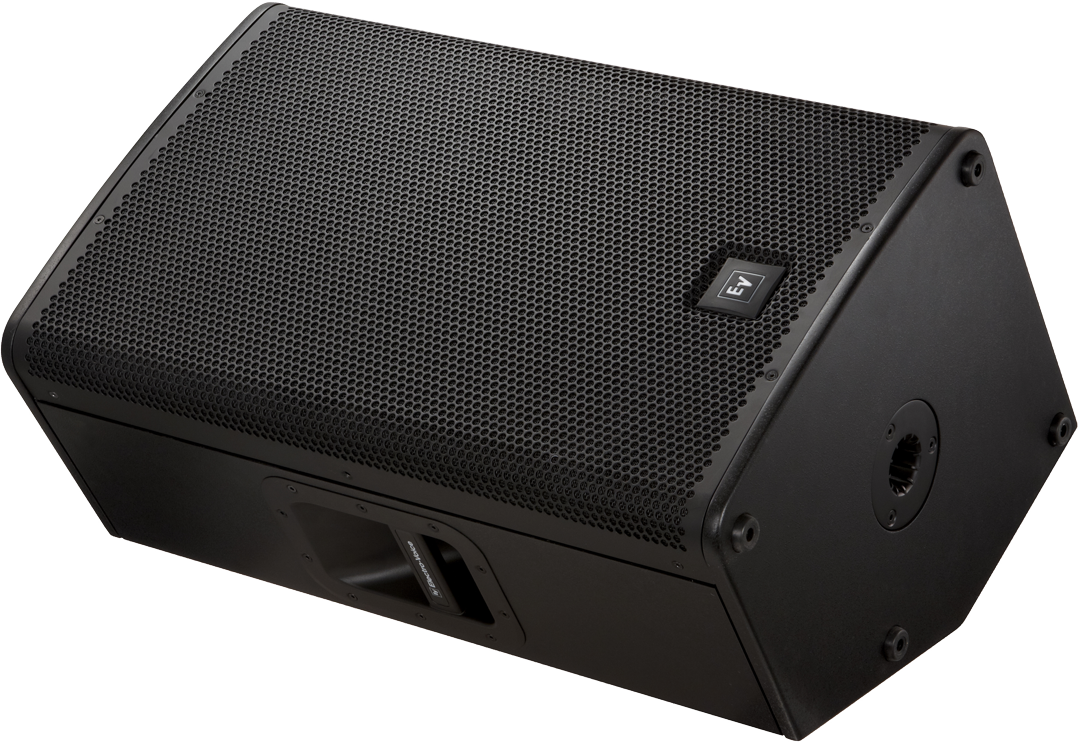

LiveX 115MonGran

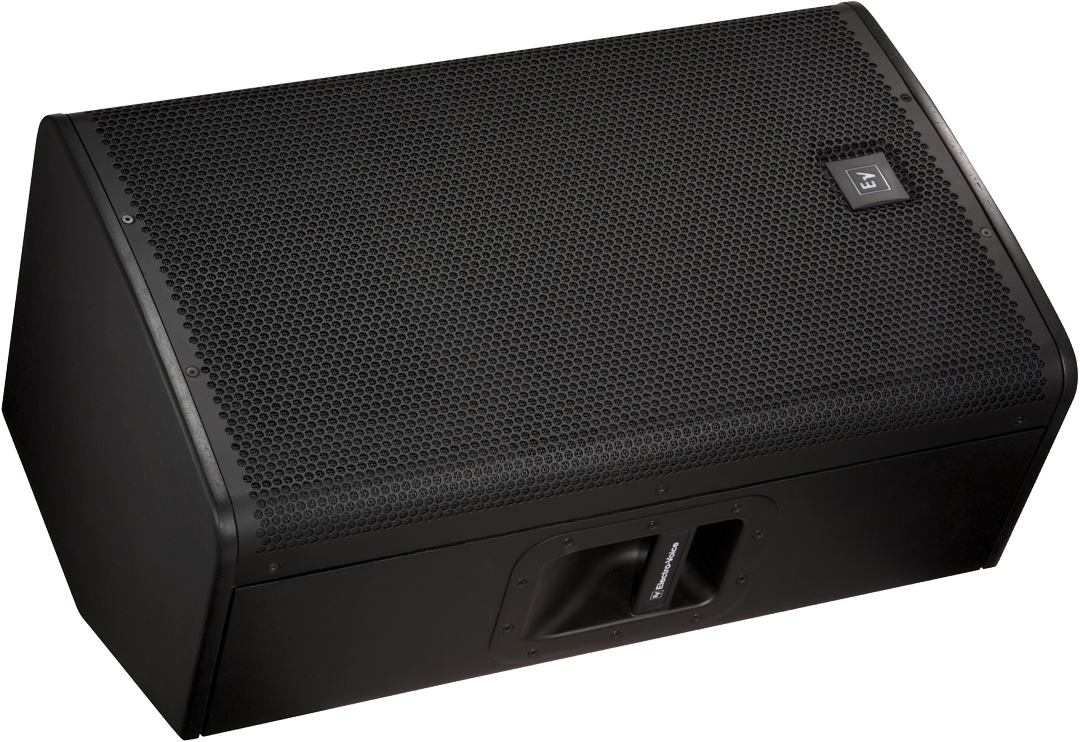

LiveX 115MonGrle
