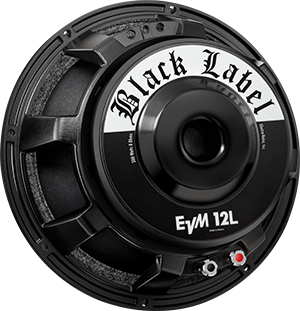

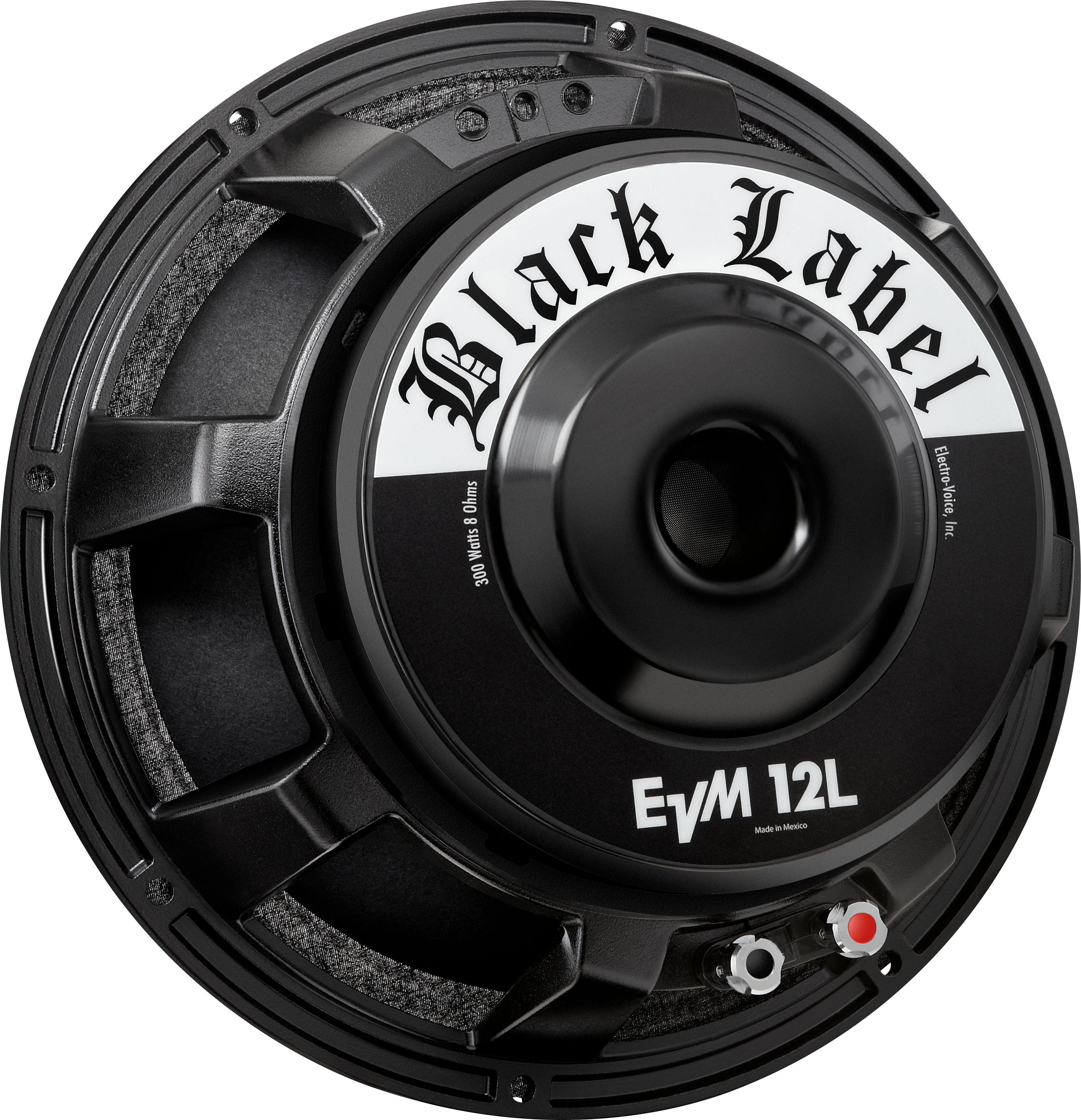

EVM12L BlackLabel

Zakk Wylde signature guitar speaker

Summary & Images Specs Where to buy Downloads & Support
  • Official guitar loudspeaker of Zakk Wylde and Black Label Society
  • EVM12L sound with enhanced magnet design and venting
  • 300 W power handling
  • Frequency Response 80Hz - 7kHz (-10 dB)
  • Sensitivity 100dB
  • Large 16 lbs (7.3 kg) magnet assembly

Specifications

Frequency Range (-10 dB) 80 - 7000kHz
Weatherized No
Nominal Impedance (Passive)

Speaker Type Components
Max. SPL/1m (calc)² 125dB
System Power Handling (Continuous/Program/Peak) 300//1200Watts
Power Rating 1200W
Available Color Black
Sensitivity 1 W/1 m 100dB
Depth 133.4mm (5.25")
Weight Net 8.6kg (18.96 lbs)
Cone Diameter 305mm (12.01")
Coil Diameter 63.5mm (2.5")
Efficiency 5.9%
Frame front diameter 309.6mm (12.19")
Magnet diameter 190.5mm (7.5")
Mounting bolt circle diameter 293.7mm (11.56")
Baffle cutout diameter 281mm (11.06")
Impedance
