PL series wired live performance microphones
- Designed for live performance venues of any size
- Powerful neodymium magnet structures
- Tight-mesh Memraflex grilles
- Superior polar pattern characteriztics
- Multi‑stage pop filters
The PL Series is a comprehensive family of vocal and instrument microphones for the professional live sound and studio community. Featuring seven vocal models and three instrument models, the PL Series' exceptional durability, sonic performance and contemporary styling meet the needs of today's sound system professional.
Models
 |
 |
 |
 |
 |
 |
 |
 | |
PL-24 |
PL-24S |
PL-33 |
PL-35 |
PL-37 |
PL-44 |

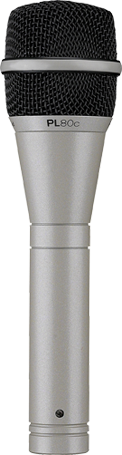

PL-80a |
PL-80c | |
| Maximum SPL (1% THD) | 132dB | |||||||
| Connector Type | 3-pin XLR | 3-pin XLR | 3-pin XLR | 3-pin XLR | 3-pin XLR | 3-pin XLR | ||
| Weight Net | 10.37oz (294g) | 12.84oz (364g) | 8.32oz (236g) | 6.21oz (176g) | 11.75oz (333g) | |||
| Shipping Weight | 23.7oz (672g) | |||||||
| Family | PL Series | PL Series | PL Series | PL Series | PL Series | |||
| Case Material | Die cast zinc | Die cast zinc | Die cast zinc | Die cast zinc | Die cast zinc | Die cast zinc | ||
| Finish | Textured Satin Black | Textured Satin Black | Textured Satin Black | Textured Satin Black | Textured Satin Black | Textured Satin Black | ||
| Polar Pattern | Supercardioid | Supercardioid | Supercardioid | Cardioid | Supercardioid | Supercardioid | ||
| Wired/Wireless | Wired | Wired | Wired | Wired | Wired | Wired | ||
| Power Requirement | Passive | Passive | Passive | 11 to 52 VDC | Passive | Passive | ||
| Mic Type | Handheld | Instrument | Instrument | Instrument | Handheld | Handheld | ||
| Audio Frequency Response | 80 Hz - 16,000 Hz | 20 Hz - 10,000 Hz | 50 Hz - 16,000 Hz | 50 Hz - 16,000 Hz | 80 Hz - 16,000 Hz | 80 Hz - 16,000 Hz | ||
| Dynamic Range | 107dB | |||||||
| Element | Dynamic | Dynamic | Dynamic | Condenser (self-biased) | Dynamic | Dynamic | ||
| Impedance, Low-Z balanced | 600Ω | 150Ω | 600Ω | 200Ω | 600Ω | 600Ω | ||
| Open Circuit Voltage | 2.2mV/Pascal | 0.63mV/Pascal | 2.2mV/Pascal | 6mV/Pascal | 2.2mV/Pascal | 2.2mV/Pascal | ||
| Learn More | Learn More | Learn More | Learn More | Learn More | Learn More | Learn More | Learn More |
Show more specs
Downloads
Technical Documentations
Certification/Regulatory
Engineering Data Sheet
Service Policies
White Paper
| Name | Language & Download |
|---|---|
| Audio 101 - Basic Audio Terminology | EN |
| Audio 101 - Loudspeaker Basics | EN |
| Audio 101 - Microphone Basics | EN |
| Microphone Facts- Axial Response | EN |
| Microphone Facts- The New Model 666R Joins the 666 Family | EN |
| PA Bible 03: Microphone Types | EN |
| PA Bible 08: Microphone Techniques | EN |
| PA Bible 15: Barrier Miking | EN |
| PA Bible 19: Condenser Microphones | EN |
| The EV PA Bible | EN |
| The PA Bible Chapter Zero | EN |
