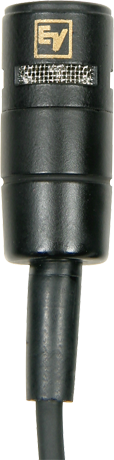

RE92L
Cardioid pattern lavalier microphone
- Wide, smooth frequency response
- Tight cardioid polar pattern
- Super-low noise condenser capsule
- 4-foot cable terminates at in-line preamp
- 12 dB/octave switchable high-pass filter
- XLR output
The RE92L is a professional-quality miniature cardioid electret condenser lavalier microphone. Its excellent sound quality and small size make it the perfect choice for miking speech in house of worship, broadcast, presentation and theater applications. Terminated with three-pin XLR.
Specifications
| Connector Type | 3-pin XLR |
| Maximum SPL (1% THD) | 135dB |
| Height | 10.5mm (0.41") |
Specifications |
|
| Frequency Response (-3 dB) | 40 - 20,000 Hz |
| Weight Net | 5.64oz (160g) |
| Family | RE Series Installation |
| Polar Pattern | Cardioid |
| Wired/Wireless | Wired |
| Mic Type | Lavalier |
| Diameter (Max) | 24mm (0.94") |
| Element | Condenser (back-electret) |
| Impedance, Low-Z balanced | 250Ω |
| Open Circuit Voltage | 5.6mV/Pascal |
| Case Material | Metal |
| Finish | Non-reflective black |
| Power Requirement | 24 - 52 V Phantom |
| Current Consumption | 6 mA |
| Specials | external preamp |
