RE92H

Cardioid pattern hanging microphone w/HPF

Summary & Images Specs Where to buy Downloads & Support

Hanging installation microphone
Wide, smooth frequency response
Cardioid polar pattern

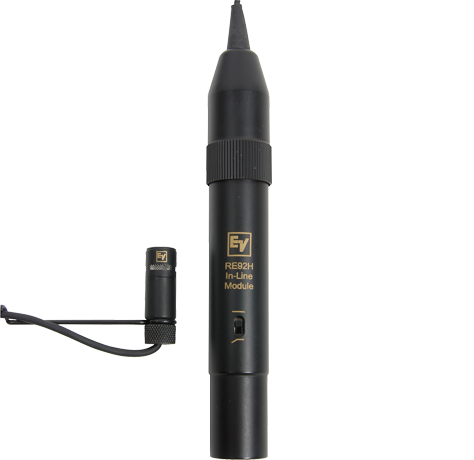

In-line electronics module
12 dB/octave switchable high pass filter
Transformerless differential output to drive long cables

Designed specifically for applications where the condenser microphone needs to be suspended from above the sound source. The RE92H is ideal for theater, house of worship or any application where a small, high-quality mic needs to be “heard but not seen.” Also available in white (RE92HW).

Technische Daten

Connector Type	3-pin XLR
Maximum SPL (1% THD)	135dB
Height	10.5mm (0.41")
Technische Daten

Weight Net	8.47oz (240g)
Frequency Response (-3 dB)	40 - 20,000 Hz
Family	RE Series Installation
Polar Pattern	Cardioid
Wired/Wireless	Wired
Mic Type	Hanging
Diameter (Max)	32mm (1.26")
Element	Condenser (back-electret)
Impedance, Low-Z balanced	250Ω
Open Circuit Voltage	5.6mV/Pascal
Case Material	Metal
Finish	Non-reflective black or white
Power Requirement	24 - 52 V Phantom
Current Consumption	6 mA
Specials	external pre-amp

Videos

Where to Buy

Retail Partners

Portable Speakers & Microphones

* Call for availability

Can't find what you're looking for? Contact us!

Downloads

Technical Documentations

Certification/Regulatory

Name	Language & Download
RE90-RE92-PolarChoice Mics EU Declaration of Conformity (2023-Aug)	EN
RE92x Wired Mics EU Declaration of Conformity (2023-Sep)	EN

Engineering Data Sheet

Name	Language & Download
RE92H RE92HW Engineering Data Sheet	EN

White Paper

Name	Language & Download
Audio 101 - Basic Audio Terminology	EN
Audio 101 - Loudspeaker Basics	EN
Audio 101 - Microphone Basics	EN
Microphone Facts- Axial Response	EN
PA Bible 03: Microphone Types	EN
PA Bible 08: Microphone Techniques	EN
PA Bible 15: Barrier Miking	EN
The EV PA Bible	EN
The PA Bible Chapter Zero	EN
