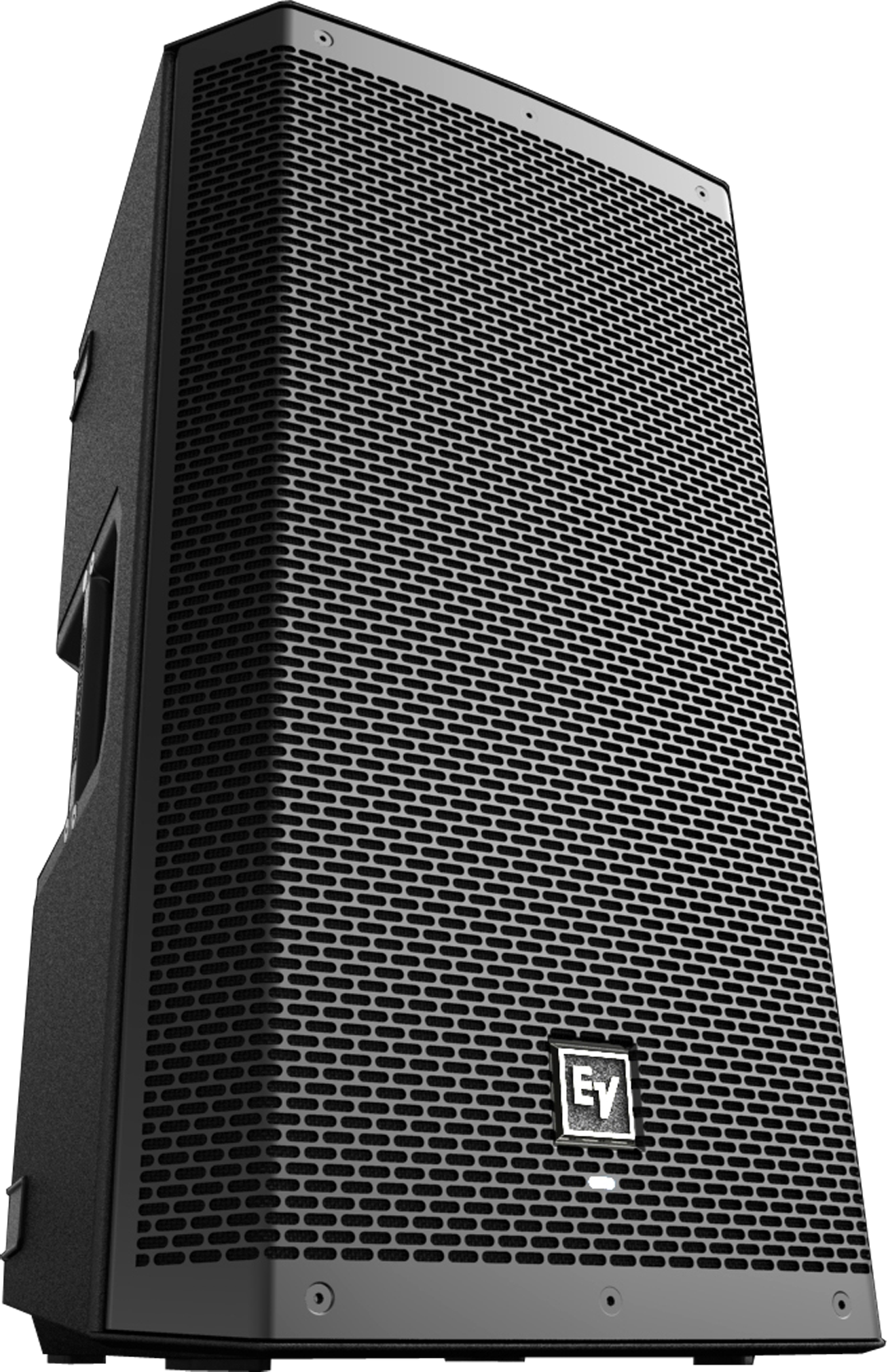

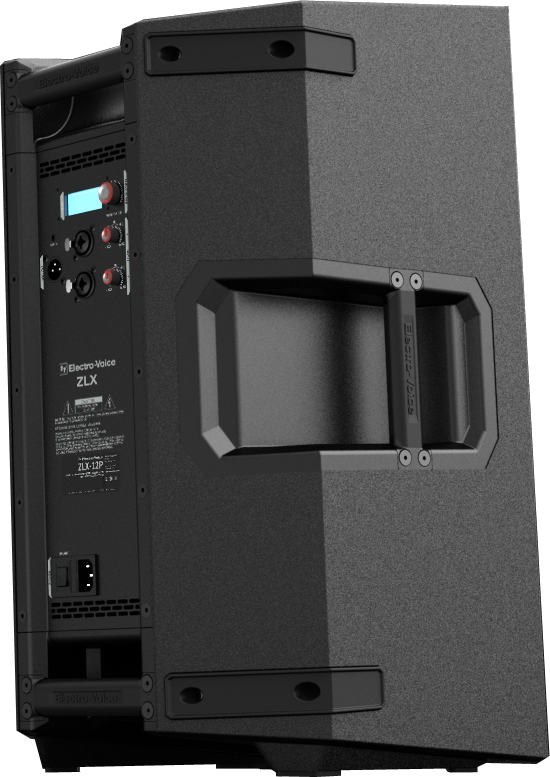

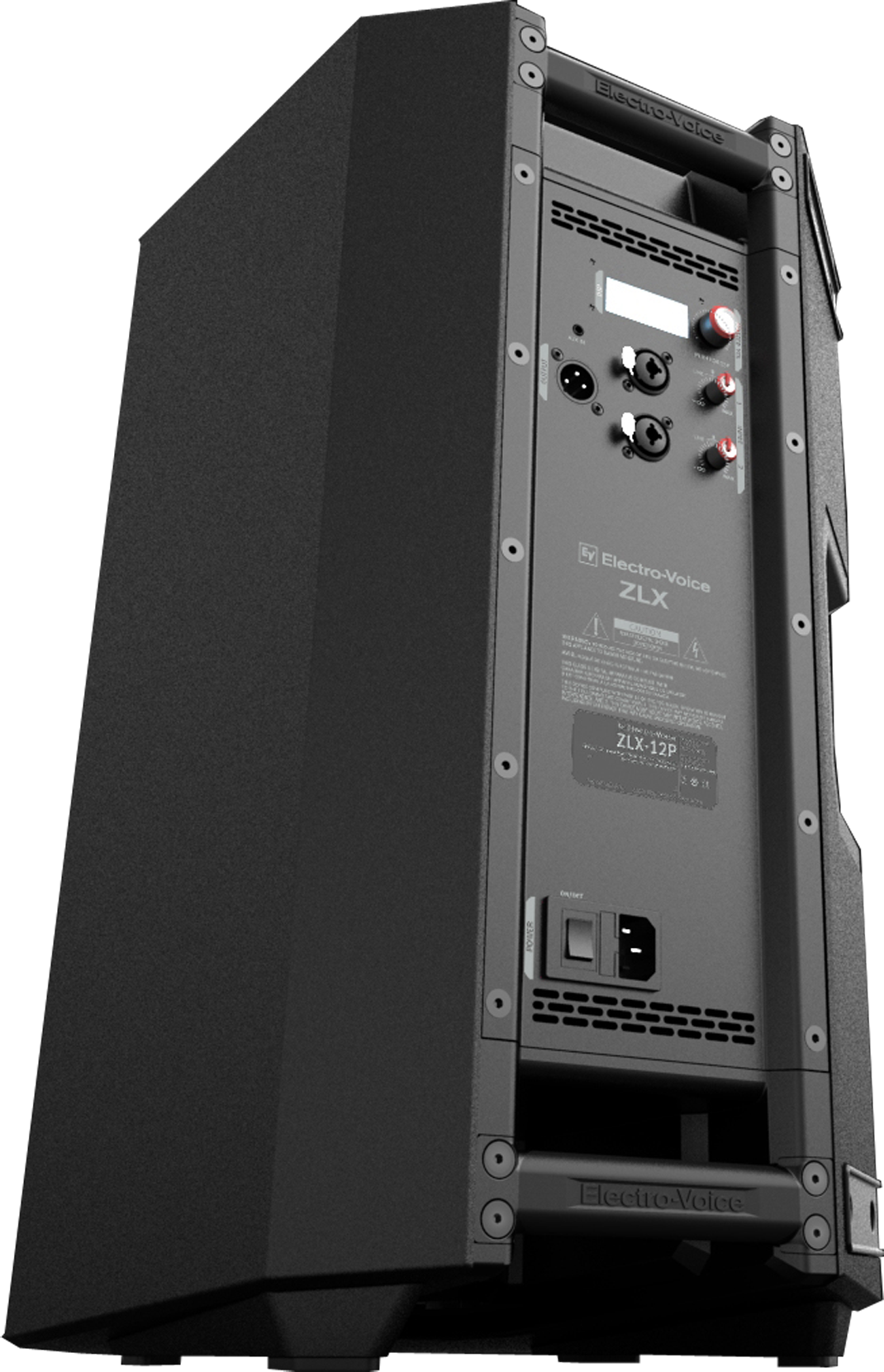

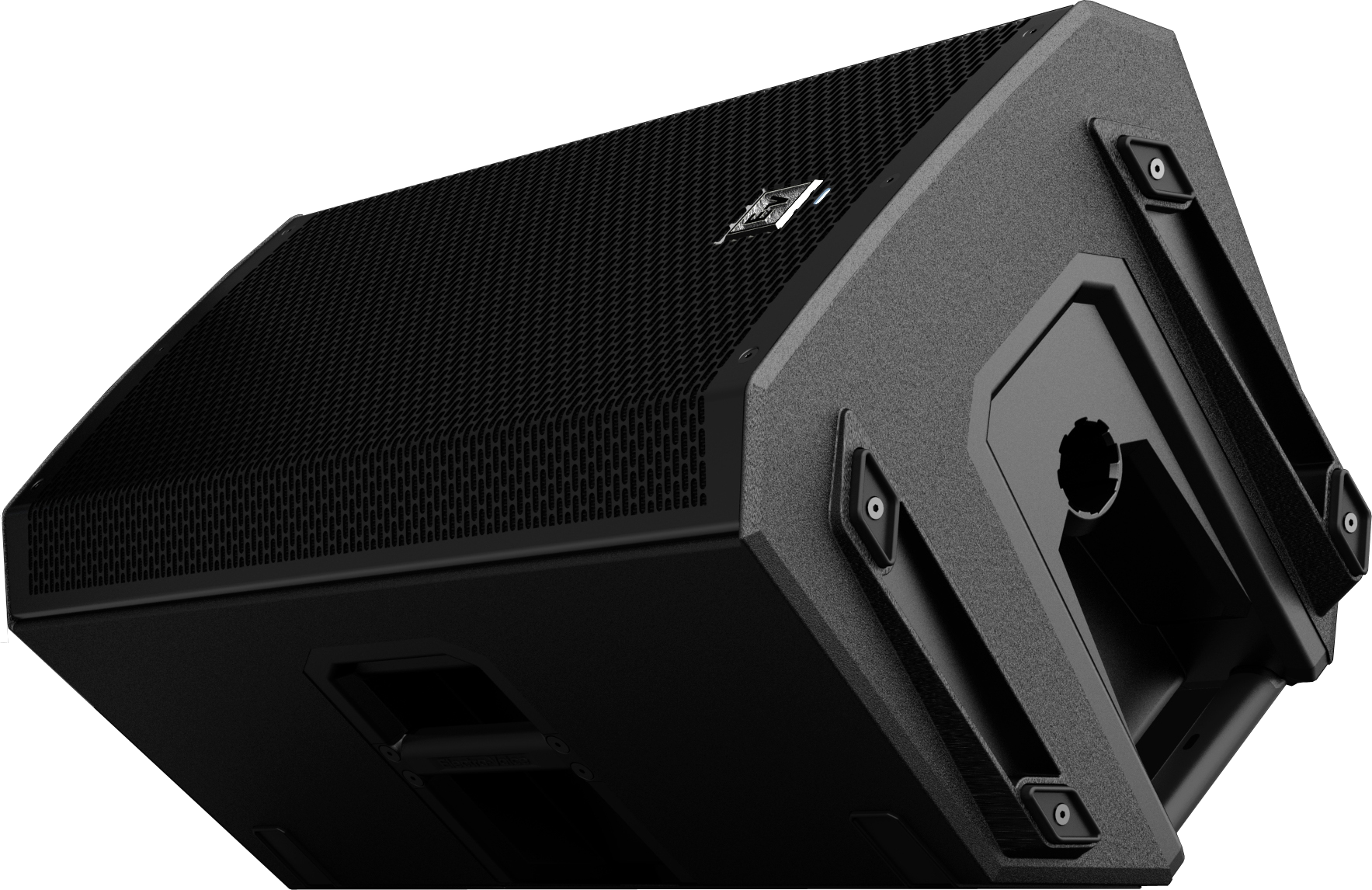

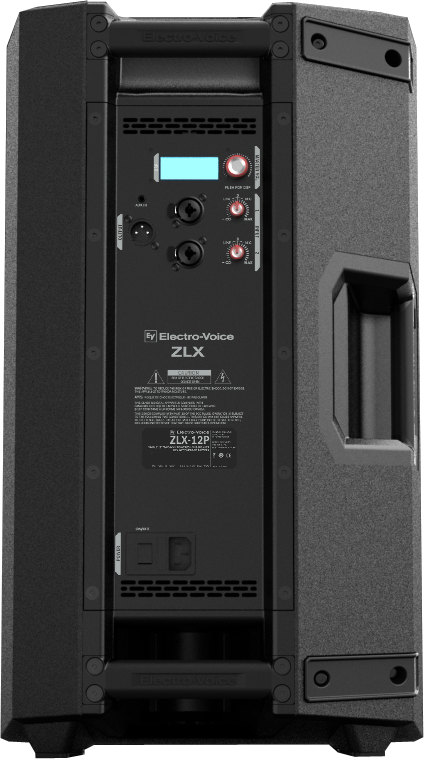

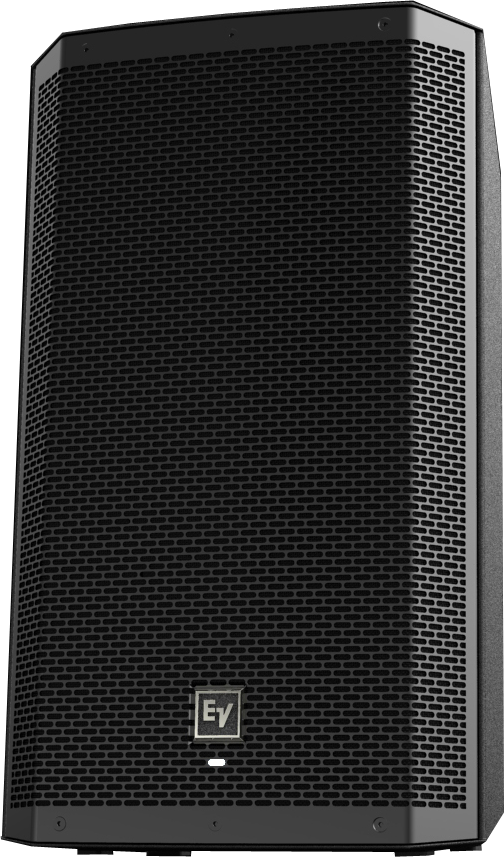

ZLX-12P

12" powered loudspeaker

Powered by Dynacord
Summary & Images Specs Where to buy Downloads & Support
  • 1000 W (Class D); 126 dB max SPL; 50 Hz – 20 kHz
  • 12” woofer and 1.5” high-frequency titanium compression driver
  • 34.3 lbs(15.6 kg)

The compact, lightweight ZLX-12P was designed to give you power and performance beyond the scope of other small-format loudspeakers, making it a standout choice for smaller-venue sound reinforcement or stage-monitoring. Pound for pound, no other similarly sized composite box comes close.

Specifications

Frequency Response65 Hz – 18 kHz1
Frequency Range50 Hz – 20 kHz1
Maximum SPL126 dB

Coverage (Hort. x Vert.)90° x 60°
Power Rating1000 Watts
LF TransducerEVS-12K, 300 mm (12 in) Woofer
HF TransducerDH-1K
Connectors(2) XLR/TRS Combo Jack, (1) 3.5 mm Input, and (1) XLR link Output
EnclosurePolypropylene
Grille18 Gauge Steel with Black Powder Coat
Dimensions (H x W x D)610 mm x 356 mm x 356 mm (24 in x 14 in x 14 in)
Net Weight15.6 kg (34.3 lbs)
Shipping Weight19.0 kg (41.8 lbs)
1 Using MUSIC DSP preset.
