EVID-P2.1

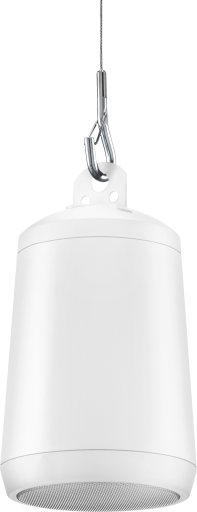

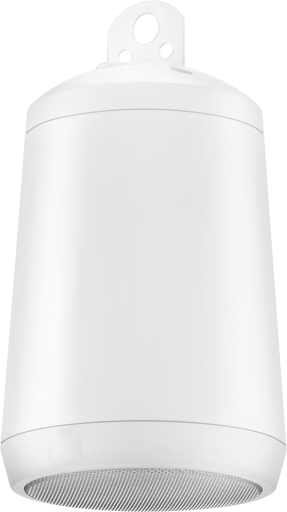

Compact pendant-mount

Summary & Images Specs Where to buy Downloads & Support

Quick-install design with captive mounting tabs to fit nearly any ceiling construction.
Four-pin Phoenix connectors on ceiling satellite speakers support pass-thru wiring.
UL 2043/1480 ratings allow for use in signaling applications and plenum air spaces.
Ceiling cutout templates and all mounting accessories included.
Available in white finish.

The EVID Compact Sound speaker series continues the EVID family’s focus on form and function, with stylish, architecture-friendly design, a best-in-class performance-to-size ratio, and user-friendly installation and operation. The system is designed to provide exceptional background/foreground audio performance in retail spaces, restaurants, and similar environments – all while being heard but hardly seen.

Specifications

Frequency Range (-10 dB)	180 Hz – 20 kHzkHz
Weatherized	Yes
Power Rating	30W
Specifications

Connector Type	Phoenix (4-pin)
Enclosure Material	ABS (fire rated)
Sensitivity 1 W/1 m	84dB
Available Color	White
Height	201mm (7.91")
Weight Net	25.75oz (730g)
Shipping Weight	71.96oz (2040g) (per pair)
Coverage (Nominal -6 dB)	150 x 150 (Voice) 100 x 100 (Music Program)
Impedance	16Ω
Maximum SPL	100dB
Regulatory Approvals	UL1480
Passive Power Handling	30W peak
Diameter (Max)	113mm (4.45")

Videos

Recommended Amplifiers

As part of The Bosch Group, Electro-Voice is dedicated to loudspeakers and microphones and Dynacord is dedicated to amplifiers, DSP and software. The depth of our shared R&D resources are geared towards bringing customers the best of both worlds: state-of-the-art loudspeaker and microphone technology from Electro-Voice, and world-class electronics engineering and software design from Dynacord.

For optimal sound system performance, Electro-Voice recommends the following amplifiers.
