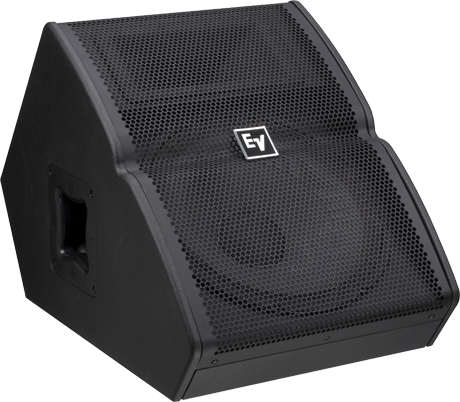

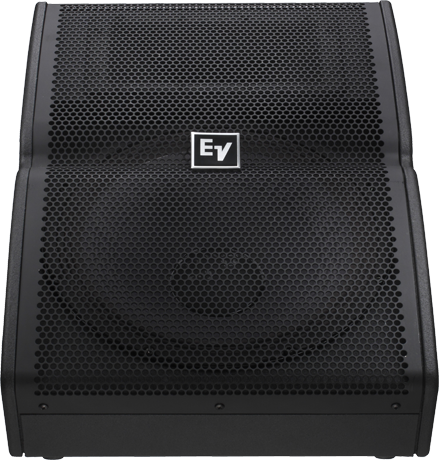

TX1152FM
15" passive floor monitor
- Two-way, high-output design
- Vented LF enclosure

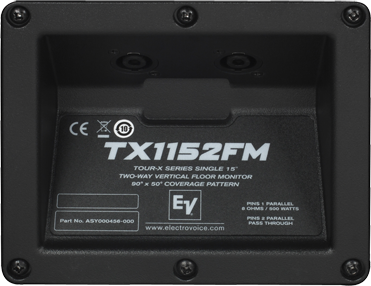

- Neutrik Speakon paralleled pass-through connectors
- Two integrated handles
- Ideal for small-to-medium stages
- Signal Synchronized Transducers for woofer/tweeter alignment

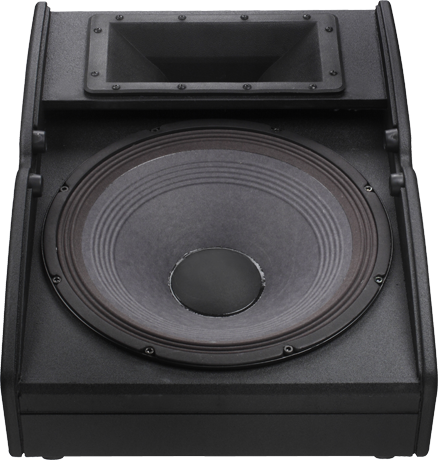

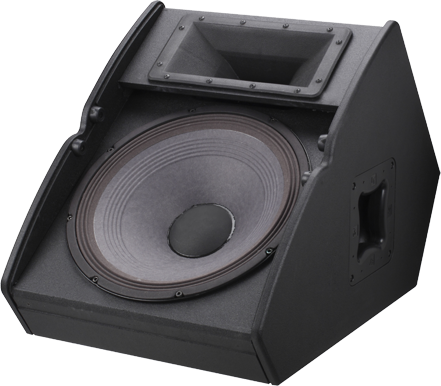

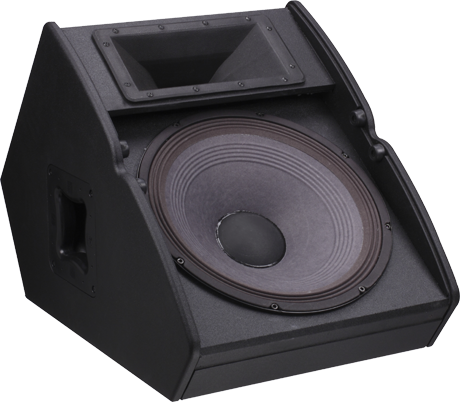

- Ultra low-distortion SMX2151 woofer with fully symmetric drive
- 1.25-inch DH3/2010A titanium HF compression driver
- Constant-directivity 90º H x 50º V horn
- Integrated 24 dB/octave crossover with HF protection
- 100 dB sensitivity, 133 dB maximum SPL
- Power handling: 500 W continuous, 2000 W peak
- Black EVCoat finish
Our Tour-X floor monitors are designed to complement all full-range cabinets in the family with common voicing.
Specifications
| Frequency Range (-10 dB) | 45 - 20000kHz |
| Flying | No |
| Minimum Impedance | 6.2Ω |
Specifications |
|
| Nominal Impedance (Passive) | 8Ω |
| HF Transducer | DH3 |
| Speaker Type | Monitor |
| Woofer Size | 15inch |
| Powered or Passive | Passive |
| Frequency Response (-3 dB)¹ | 65 - 20000Hz |
| Max. SPL/1m (calc)² | 133dB |
| Coverage (Nominal -6 dB) H | 90° |
| LF Transducer | SMX2151 |
| Coverage (Nominal -6 dB) V | 50° |
| Power Rating | 2000W |
| System Power Handling (Continuous/Program/Peak) | 500Watts |
| Rotatable Horn | No |
| Crossover Frequency | 1750Hz |
| Enclosure Material | Plywood and MDF with EVCOAT |
| Available Color | Black |
| Sensitivity 1 W/1 m | 100dB |
| Height | 475mm (18.7") |
| Width | 439mm (17.28") |
| Recommended High-Pass Frequency | 45Hz |
| Depth | 655mm (25.79") |
| Internal Crossover | Yes |
| Weight Net | 23.5kg (51.81 lbs) |
| Family | Tour X |
| Input Connections | Parallel Neutrik® NL4 |
