18" subwoofer

  • 97 dB sensitivity, 129 dB maximum SPL
  • System rating: 350 W Continuous, (1400 W Peak)
  • Recommended frequency range: 30 Hz to 135 Hz
  • Designed to work with EVC 8-, 12-, and 15-inch systems
  • Optional high quality transformer and patented Automatic Saturation Control (ASC) preserve rich, warm low-frequency response over 70V/100V lines

The EVC-1181S subwoofer comprises a single 18" low frequency transducer in an optimally vented enclosure. It was created to complement the 8-, 12-, and 15-inch full range EVC systems, including the EVC-1122/VI Variable Intensity loudspeaker. Like other EVC models, the EVC-1181S subwoofer was designed and voiced to work in systems that use other EV-Innovation loudspeakers (EVF, EVH, EVA, and EVU). The EVC-1181S does not have an internal passive crossover; it requires a suitable active low pass filter and 4th-order Butterworth system high pass filter for proper operation.

The EVC series is an extremely cost effective solution for many fixed-install applications. The enclosures are constructed of 15-mm plywood and finished with EVCoat for enhanced durability. The EV-1181S subwoofer was designed for floor mounting or suspension from its multiple M10 points. All EVC series loudspeakers accept wire gauges up to 10 AWG (6 mm). The input panel also accepts optional covers with NL4-type connectors or weatherized gland-nuts.

For 70V/100V operation, the input panel has an internal landing pad for mounting EV's high-quality TK-150 audio transformer. Adding a TK-150 to the EVC-1181S input panel engages EV's patented Automatic Saturation Compensation (ASC), which preserves low frequency performance while presenting a stable load to the amplifier regardless of how many loudspeakers are connected in parallel. This results in the ability to drive multiple EVC-1181S subwoofers over a 70V/100V drive channel, while still delivering full, rich bass response.


Max Calculated SPL 129dB
Frequency Range (-10 dB) 30Hz-135kHz
Suspension four M10 inserts

Minimum Impedance 6.3Ω
Frequency Response (-3 dB)¹ 38Hz-95Hz
LF Transducer EVS-18L
Grille 18 GA cold-rolled steel with rotatable logo (18 GA stainless steel with hydrophobic cloth on PI models)
Weight Net 32.6kg (71.87 lbs)
Shipping Weight 36.5kg (80.47 lbs)
Dimensions (H x W x D) 503 x 554 x 718mm
Rec. high-pass frequency, 4th Order 35 Hz for 8Ω (40 Hz with TK-150 transformer)
Environmental Specs IEC 60529, IP44 (IP55 for PI versions)
Nominal Impedance
Axial Sensitivity (SPL, 1 W @ 1 m) 97dB
Power Handling (Continuous / Peak) 400/800/1600W
Connectors Dual four-pin 10 AWG (6 mm) Phoenix/Euro Block screw-terminals
Enclosure 15mm weather-resistant plywood with EV Coat
Color Black or White


Name Language Size Date
EVC-1181S_B A&E Specification EN 42KB 11.18.2020
EVC-1181S_PIB A&E Specification EN 42KB 11.18.2020
EVC-1181S_PIW A&E Specification EN 42KB 11.18.2020
EVC-1181S_W A&E Specification EN 42KB 11.18.2020
Name Size Date
EVC-1181S.rfa 1.72MB 01.16.2019
Name Language Size Date
ProSound Loudspeakers and Electronics Catalog EN 15.43MB 04.02.2019
EVC Brochure Final LR US Letter EN 7.01MB 02.01.2018
Name Size Date
Environmental Compliance Document 148KB 10.03.2017
Evc Compact Front-Loaded Loudspeaker Family, Ec-Declaration of Conformity 633KB 12.18.2019
Name Size Date
EVC 1181S 2D CAD Drawing DWG 471KB 10.11.2018
EVC 18 3D CAD Drawing DWG 58KB 03.28.2018
Name Size Date
EVC CLF v1.1 ZIP 951KB 03.27.2018
EVC GLL v1.1 ZIP 30.24MB 03.27.2018
Name Language Size Date
EVC-1181S 18 Data Sheet EN 431KB 02.06.2018
Name Language Size Date
System solutions Bars & Clubs EN 828KB 02.25.2020
System solutions Fitness Centers 2 EN 829KB 02.25.2020
Name Language Size Date
EVC Compact Front Loaded Loudspeakers Installation Manual EN 5.22MB 02.01.2018
Name Size Date
EVC1181S (100) FIR_Drive SPS 34KB 03.22.2018

EVC 18in Black Scaled LowRes 32553

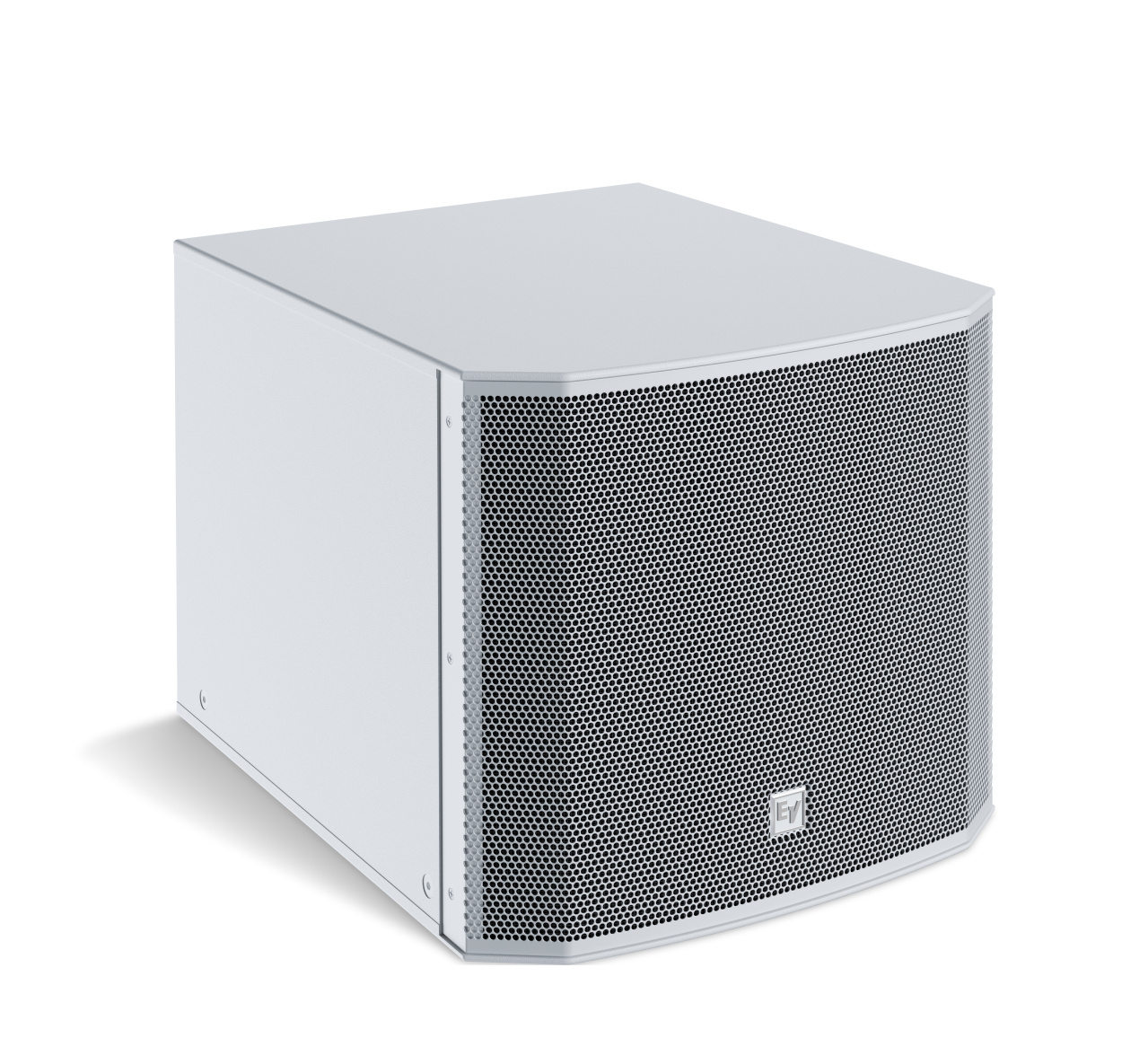

EVC 18in White Scaled LowRes 32554
