R300-L
Lapel system with ULM18 directional microphone
- ClearScan automatically finds the clearest channel
- EZsync one-step channel setup

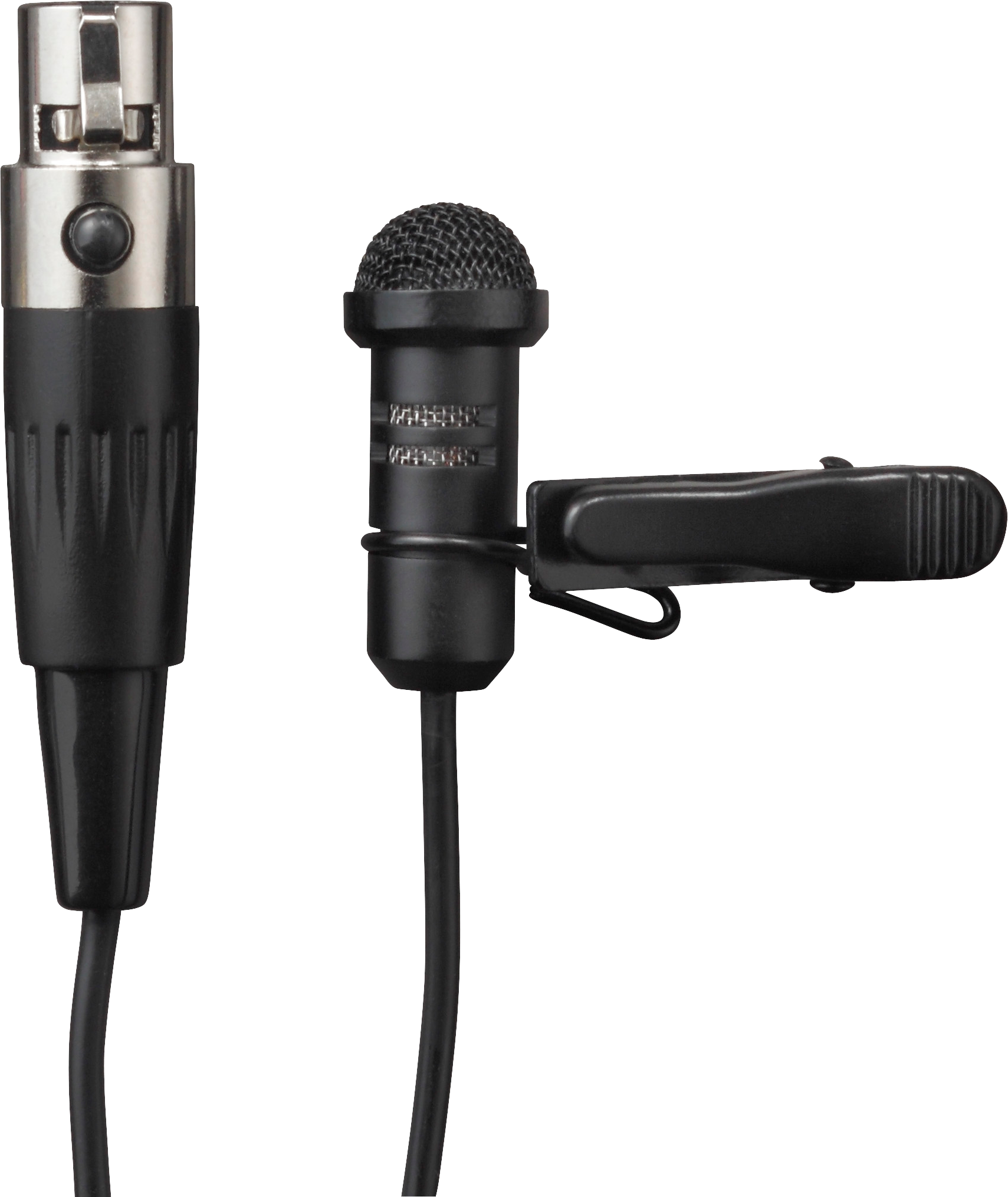

- ULM18 directional lavalier microphone
- 14 hour battery life from two AA alkaline
- Rugged metal transmitter
- Metal receiver chassis with optional rack mount

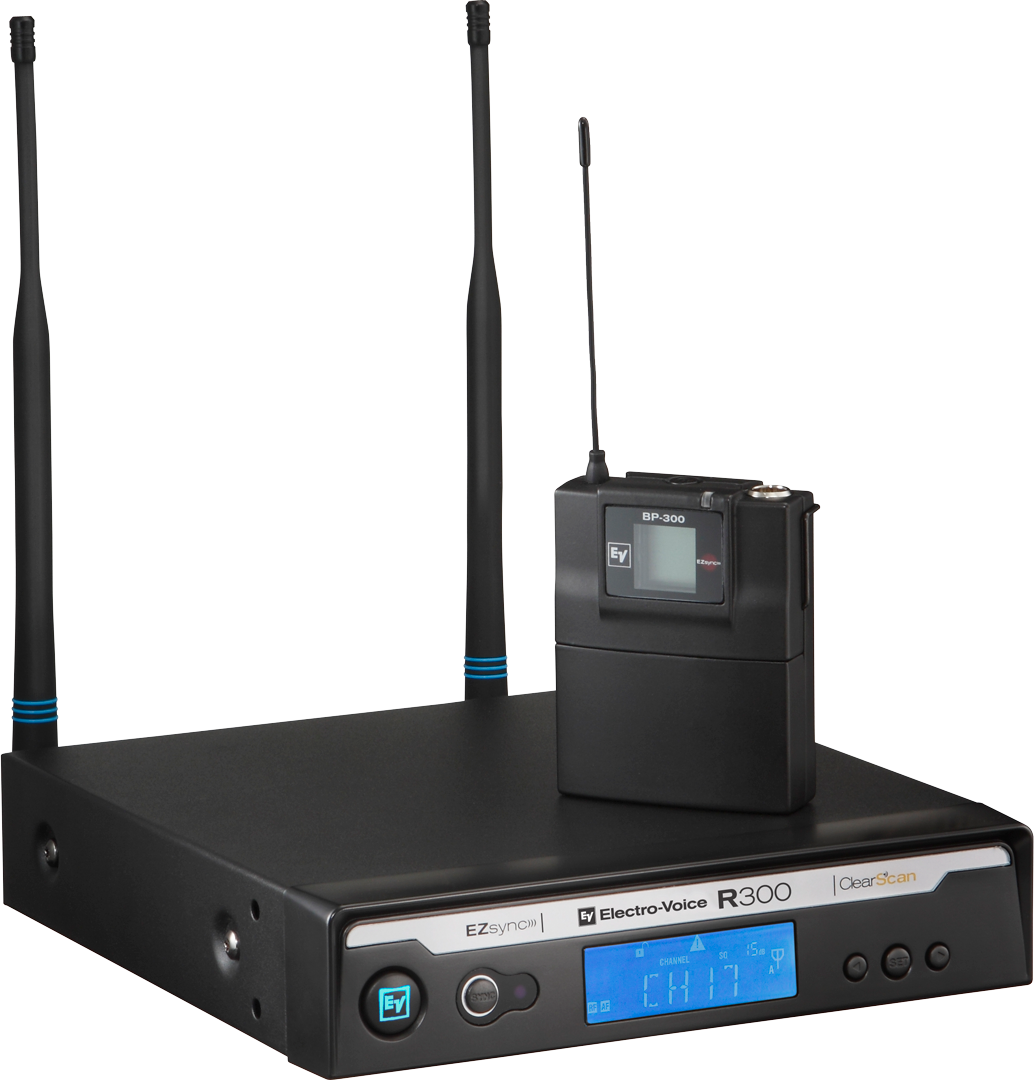

The R300-L is a robust UHF wireless bodypack system, suitable for any application where the convenience of a wireless lavalier microphone is required. The system's BP-300 rugged metal bodypack transmitter is simple to use, and is powered by two AA batteries. Included with the system, the ULM18 is a high quality directional (cardioid) condenser lavalier microphone suitable for sound reinforcement or recording of voice, and allows users the convenience of a hands-free presentation or performance experience. Exceptionally useful for sound reinforcement applications, the ULM18’s directional cardioid polar pattern reduces sound system feedback potential when used properly. The receiver's dual antenna diversity helps avoid signal dropouts, and its durable metal frame and chassis can either be used on a tabletop, or rack-mounted with optional rack mounting hardware.
Specifications
| Connector Type | 1/4 inch unbalanced, 3-Pin XLR balanced |
| Family | R300 |
| Operating Temperature Range | 5º - 45º C (41º - 113º F) |
Specifications |
|
| Case Material | Metal |
| RF Frequency Range | 16MHz |
| Signal-to-Noise Ratio (A-weighted) | greater than 100 dBdB |
| Power Requirement | 12-16 VDC, 500 mA max |
| Controls | On/Off, Set, Up, Down, Sync |
| Antennas | Flexible TNC 1/2 Wave |
| Number of Channels | 32 Per Band, 8 Simultaneous |
| Diversity | True Antenna |
| Squelch | Tone code plus Amplitude |
| Receiver Type | Synthesized PLL |
| RF Sensitivity (12 dB SINAD) | less than 1.0uV |
| Audio Frequency Response | 80 Hz - 18kHz +/- 2dB |
| Balanced Line Level Output (RMS Adjustable) | 10 - 100mV |
| Distortion (@ 1 kHz, 40 kHz deviation) | less than 1.0, 0.4 typical% |
| Dynamic Range | greater than 95 dBdB |
| Power Supply | 12 VDC, 500 mA max |
| Polar Pattern | Cardioid |
| Battery Life | 14 Hours with (2) AA alkalines typical |
| RF Output | 8 mW Typical |
| Element | ULM18 Directional Microphone |
