RE3-BPNID
UHF wireless set containing no input device

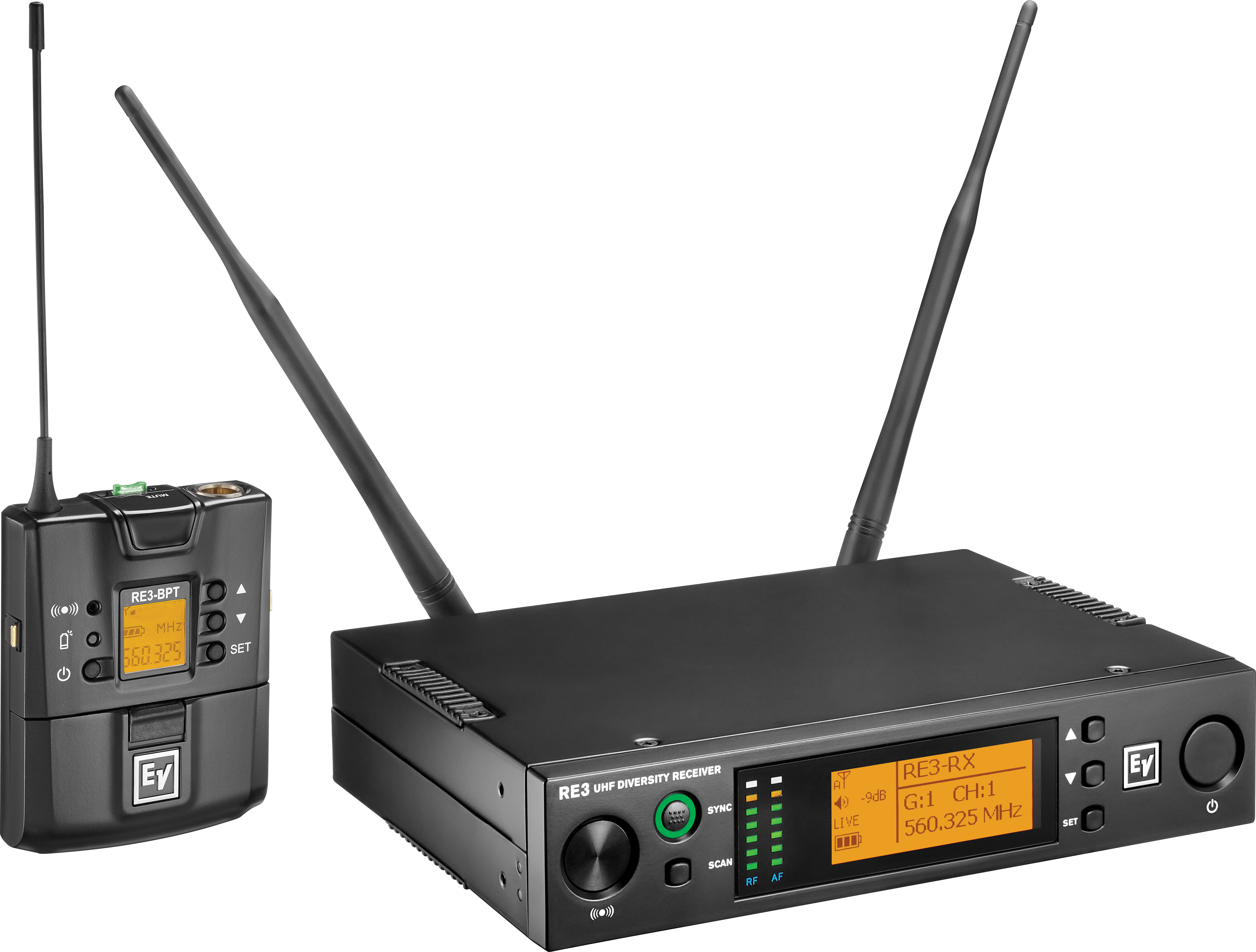

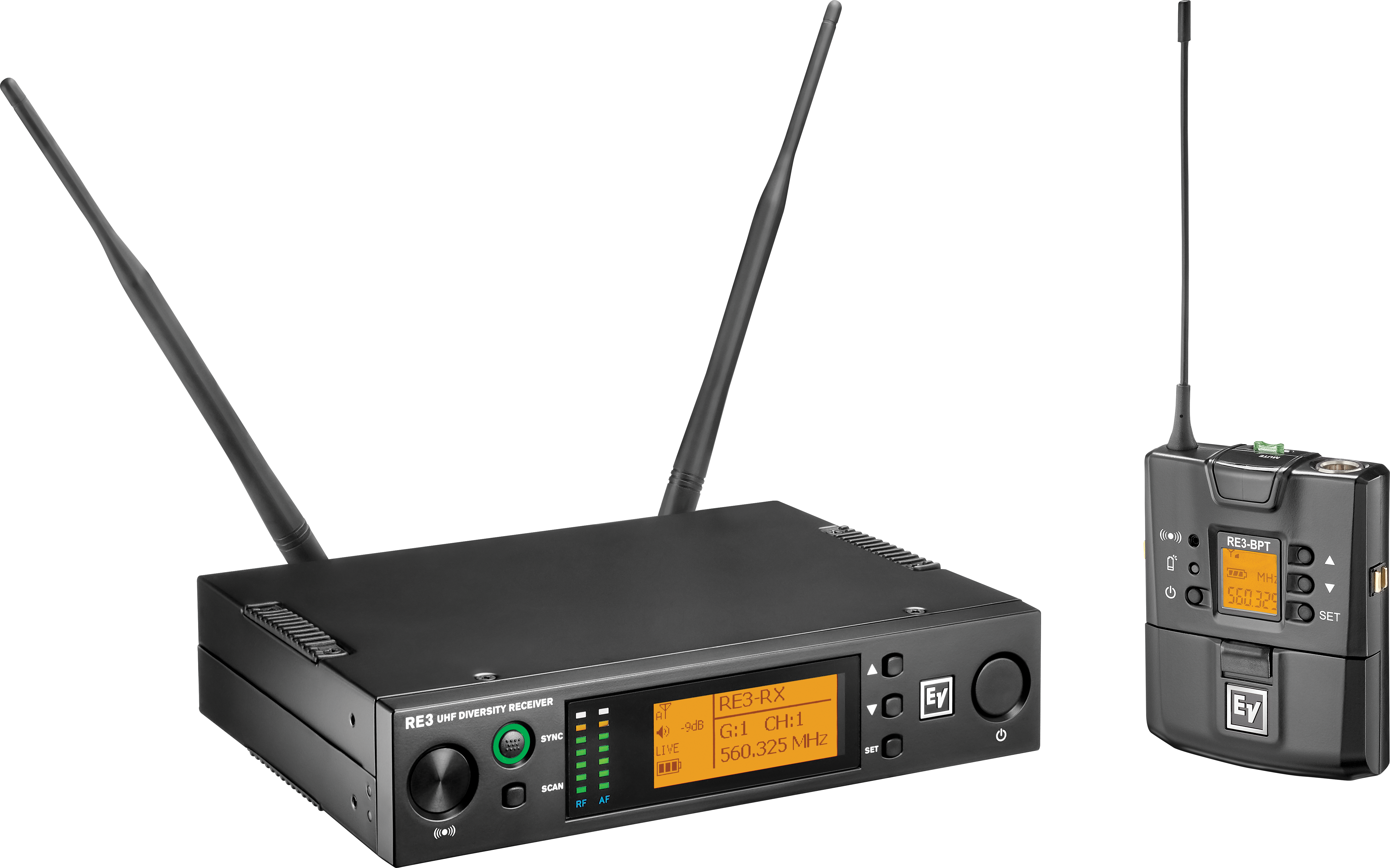

Bodypack UHF wireless set containing no input device for the bodypack transmitter. Serving as an ideal foundation set, it can be completed when coupled with any Electro-Voice lavalier, headworn, or instrument input device.
Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust bodypack transmitter and diversity receiver delivers rock-solid system performance.
Components of the set:
- Robust metal body
- Sync function for easy frequency setup
- Selectable low and high output power (band specific)
- Up to 36 MHz tuning bandwidth (band specific)
- Unique magnetic latch and lock for easy access to batteries
- Learn more
- Diversity reception minimizes dropouts
- Frequency scanning for selecting open frequencies
- Sync function links transmitter to receiver for easy setup
- Up to 36 MHz tuning bandwidth (band specific) for trouble-free operation
- Easy-to-read LCD display
- Learn more
Two receiver antennas
Universal power supply
Two AA batteries
Receiver rack mounting hardware
Owner’s manual
Documentation packet
Declaration of conformity
Universal power supply
Two AA batteries
Receiver rack mounting hardware
Owner’s manual
Documentation packet
Declaration of conformity
| BAND DETAILS | |||||
| Band name | 5L | 5H | 6M | 8M | T |
| Bandwidth limits (MHz) | 488 – 524 | 560 – 596 | 653 – 663 | 823 – 832 863 – 865 | 803 - 806 |
| Tuning bandwidth | 36 MHz | 36 MHz | 10 MHz | 11 MHz | 3 MHz |
| Selectable frequencies | 1440 | 1440 | 400 | 440 | 120 |
| Transmit output power (mW) | 10 and 50 | 10 and 50 | 10 and 20 | 10 | 10 and 50 |
| Coverage | Global | Global | Global | Select Europe | Thailand only |
