RE3-RE520

UHF wireless set featuring RE520 condenser supercardioid microphone

Handheld UHF wireless set featuring RE520 condenser supercardioid microphone head for vocal performance and presentations. The RE520’s sound is detailed, full, and vivid, with a tight and clear low end, natural and present midrange, and an exceptionally-detailed high end. The supercardioid pattern provides excellent acoustic isolation.

Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust handheld transmitter and diversity receiver delivers rock-solid system performance.

Components of the set:

RE3-HHT handheld UHF transmitter
RE520-RC3 microphone head
Microphone stand adapter
RE3-RX diversity UHF receiver
Two receiver antennas
Universal power supply
Two AA batteries
Receiver rack mounting hardware
Owner’s manual
Documentation packet
Declaration of conformity

BAND DETAILS
Band name5L5H6M8MT
Bandwidth limits (MHz)488 – 524560 – 596653 – 663823 – 832
863 – 865
803 - 806
Tuning bandwidth36 MHz36 MHz10 MHz11 MHz3 MHz
Selectable frequencies14401440400440120
Transmit output power (mW)10 and 5010 and 5010 and 201010 and 50
CoverageGlobalGlobalGlobalSelect EuropeThailand only

Videos

Downloads

Name Size Date
Electro-Voice RE420 & RE520 Road Test 164KB 11.19.2019
Name Language Size Date
ProSound Loudspeakers and Electronics Catalog EN 15.43MB 04.02.2019
Microphone Catalog 2020 EN 10.97MB 07.03.2020
Name Size Date
Environmental Compliance Document 148KB 10.03.2017
RE3 Family EC Declaration of Conformity 589KB 04.19.2019
Name Language Size Date
RE3-BPT Engineering Data Sheet EN 1.28MB 02.06.2019
RE3-HHT Engineering Data Sheet EN 955KB 02.05.2019
RE3-RX Engineering Data Sheet EN 1.22MB 02.05.2019
RE520-RC3 Engineering Data Sheet EN 6.19MB 06.19.2018
RE520-RC3 Engineering Data Sheet DE 5.5MB 04.20.2020
RE520-RC3 Engineering Data Sheet ES 5.61MB 12.17.2018
RE520-RC3 Engineering Data Sheet FR 5.57MB 12.17.2018
RE520-RC3 Engineering Data Sheet JA 5.65MB 01.16.2019
RE520-RC3 Engineering Data Sheet KO 5.72MB 12.17.2018
RE520-RC3 Engineering Data Sheet TH 5.58MB 12.17.2018
RE520-RC3 Engineering Data Sheet ZH 5.66MB 12.17.2018
Name Language Size Date
RE3 Flyer EN 1.68MB 02.07.2019
Name Language Size Date
RE3 UHF Wireless Installation manual EN 3.25MB 12.20.2018
RE3 UHF Wireless Installation manual DE 4MB 06.16.2020

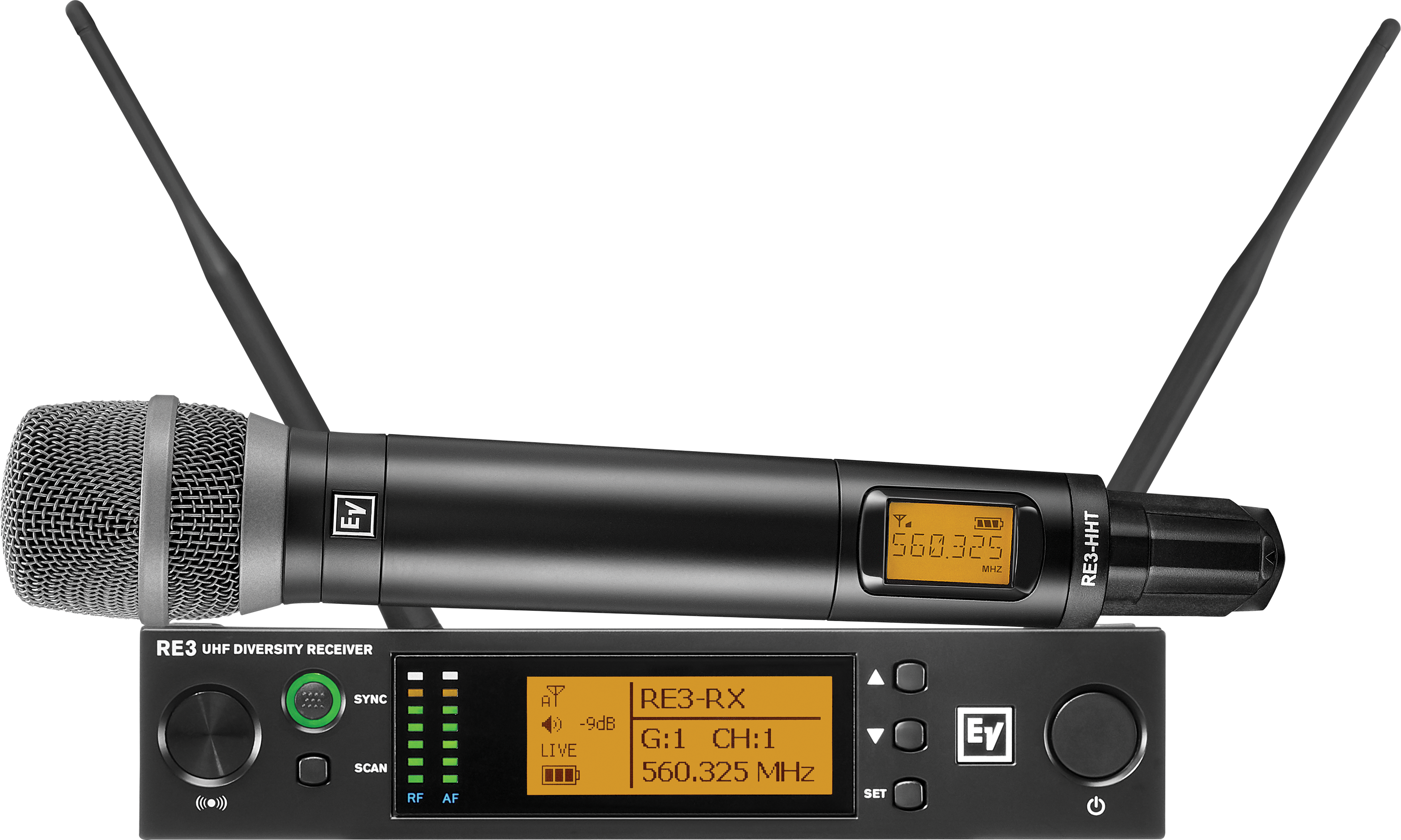

RE3 RE520 STRAIGHT-ON HHT-Vertical

RE3 RE520 STRAIGHT-ON HHT-Horizontal

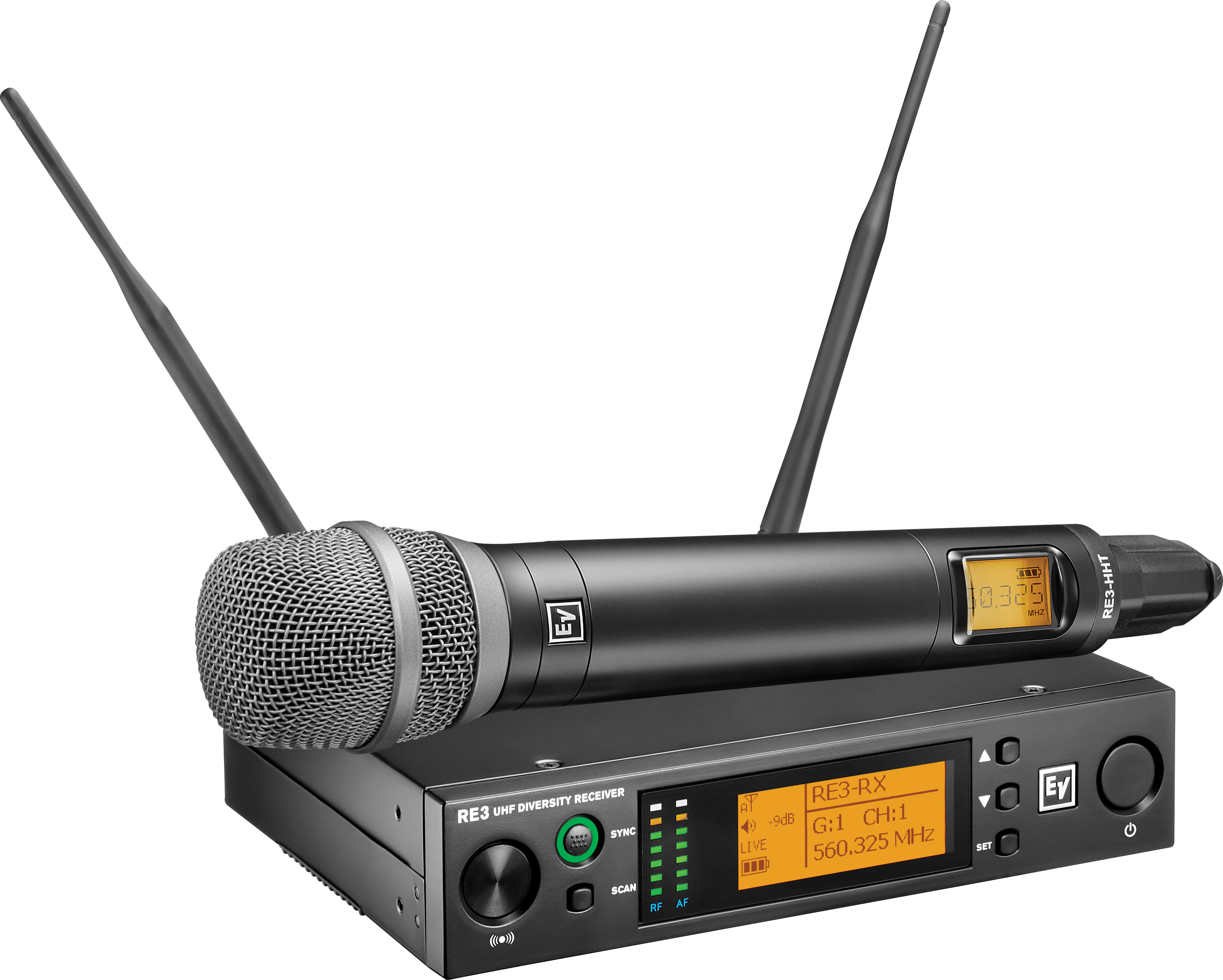

RE3-RE520 ANGLED HHT-Horizontal
