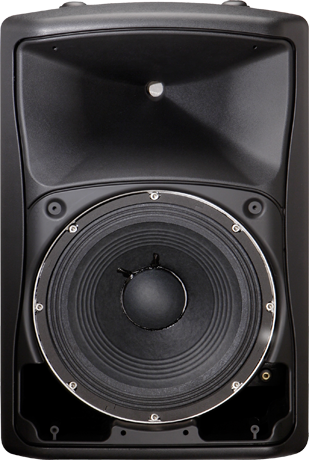

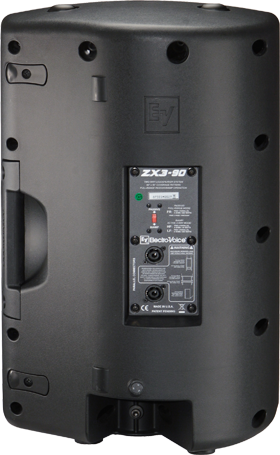

ZX3

12" passive loudspeaker

  • Versatile performance for mains, fills, or monitors
  • DVX3121A woofer with forced-air cooling
  • 2-inch ND2 titanium/neodymium HF driver
  • Passive crossover
  • Choice of 90º x 50º or 60º x 60º coverage horn
  • High sensitivity, 131 dB maximum SPL
  • Power handling: 600 W continuous, 2400 W peak
  • High-impact polypropylene enclosure
  • Compact monitor-friendly wedge shape
  • Up to four anchor-plate attachments
  • M8 mounting inserts (7)
  • Integrated handle
  • Available in black and white

Specifications

Frequency Range (-10 dB) 48 - 20000kHz
Weatherized Yes
Flying Yes

Minimum Impedance 6.2Ω
HF Transducer 2-inch ND2
Speaker Type Full-Range
Woofer Size 12inch
Powered or Passive Passive
Frequency Response (-3 dB)¹ 58 - 15000Hz
Max. SPL/1m (calc)² 131dB
Coverage (Nominal -6 dB) H 90/60°
LF Transducer 12-inch DVX3121A
Coverage (Nominal -6 dB) V 50/60°
System Power Handling (Continuous/Program/Peak) 600//2400Watts
Power Rating 2400W
LF Power Handling 500Watts
HF Power Handling 40Watts
Crossover Frequency 2000Hz
Enclosure Material High Impact Polystyrene Composite
Grille Polyester Powder Coated, 18GA Galvanized Steel
Sensitivity 1 W/1 m 97dB
Available Color Black or white
Height 613mm (24.13")
Recommended High-Pass Frequency 50Hz
Width 397mm (15.63")
Depth 362mm (14.25")
Internal Crossover Yes
Weight Net 19.8kg (43.65 lbs)
Family ZxZxA
Nominal Impedance
Input Connections 2 conductor SJO cable and gland nut
