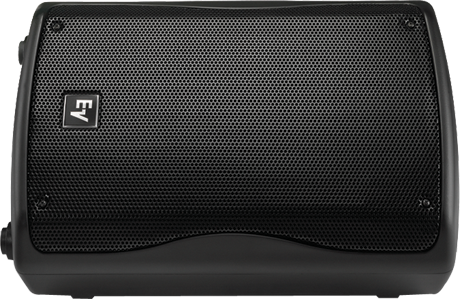

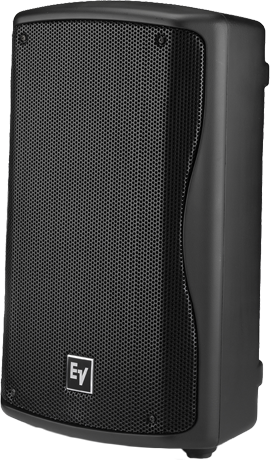

ZXA1
8" 2‑way powered full‑range loudspeaker
- Integrated 800 watt power amplifier
- Bi-amplified design with transducer protection
- EV8L 8” high-output LF transducer
- DH2005 1” exit true compression driver
- 90° x 50° coverage pattern
- Rotatable horn design
- 126 dB maximum SPL
- Selectable high-pass filter for use with subwoofers
- Line and microphone inputs
- Integral monitor angle on enclosure

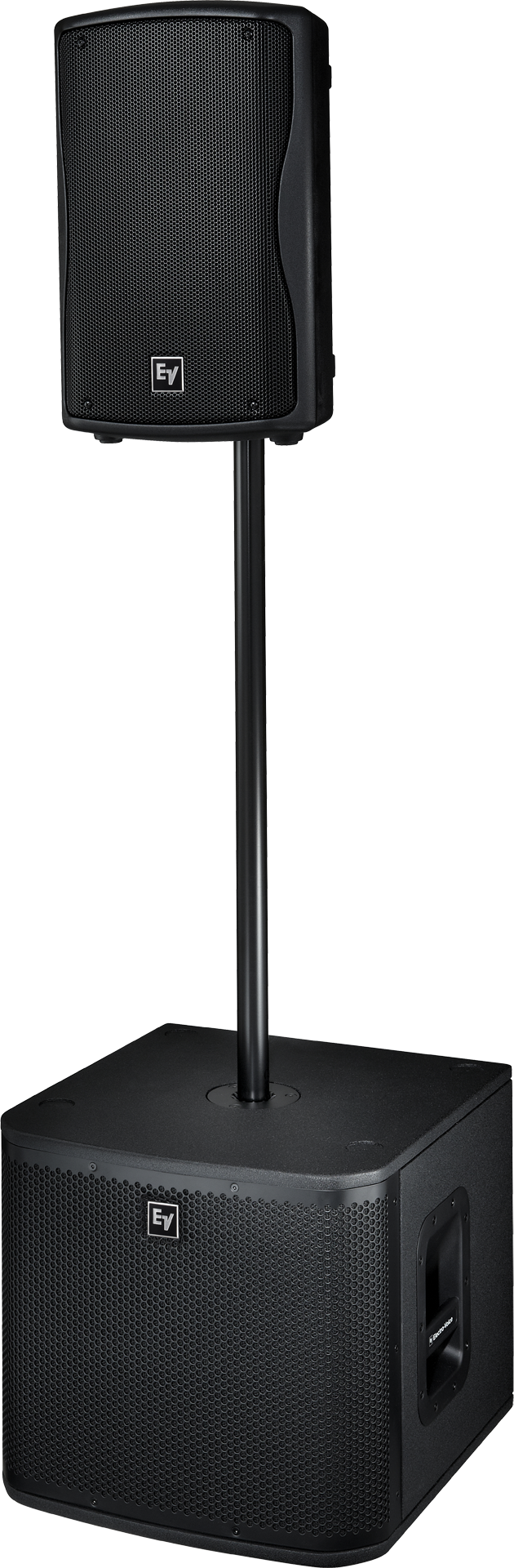

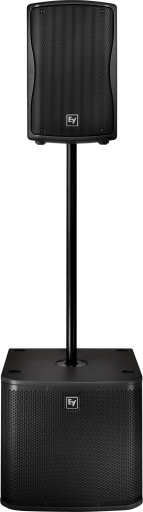

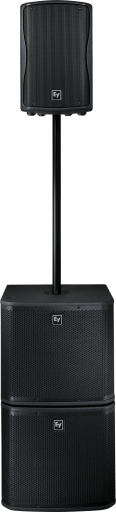

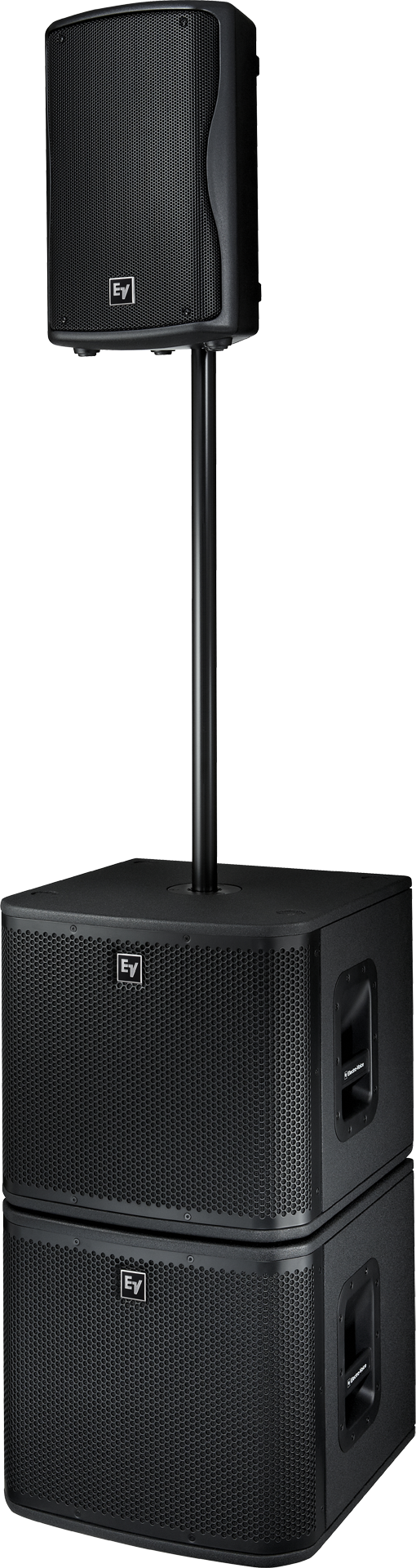

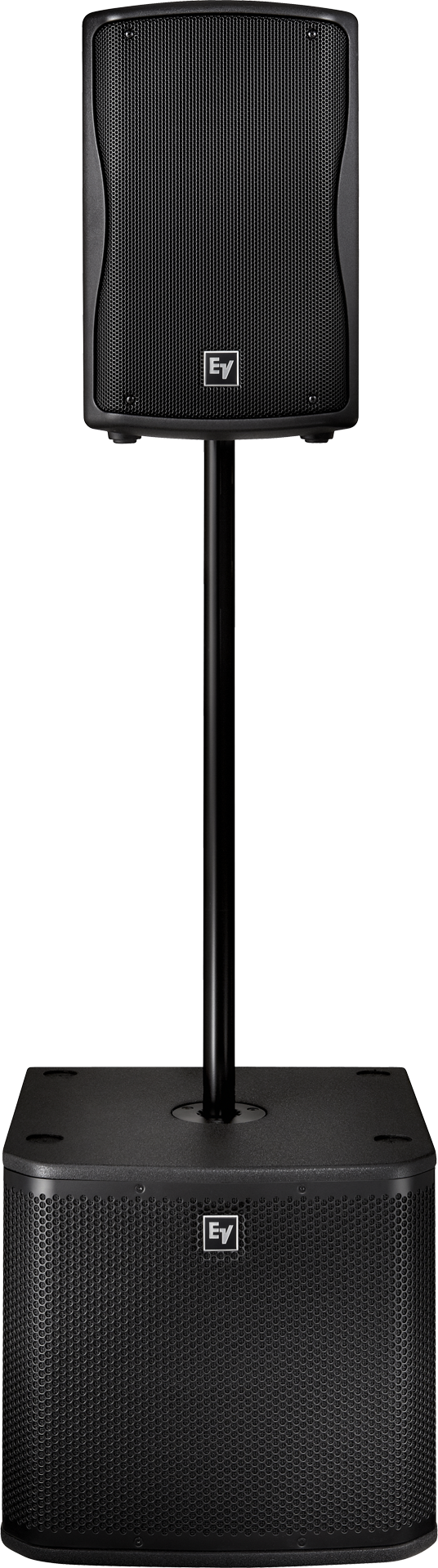

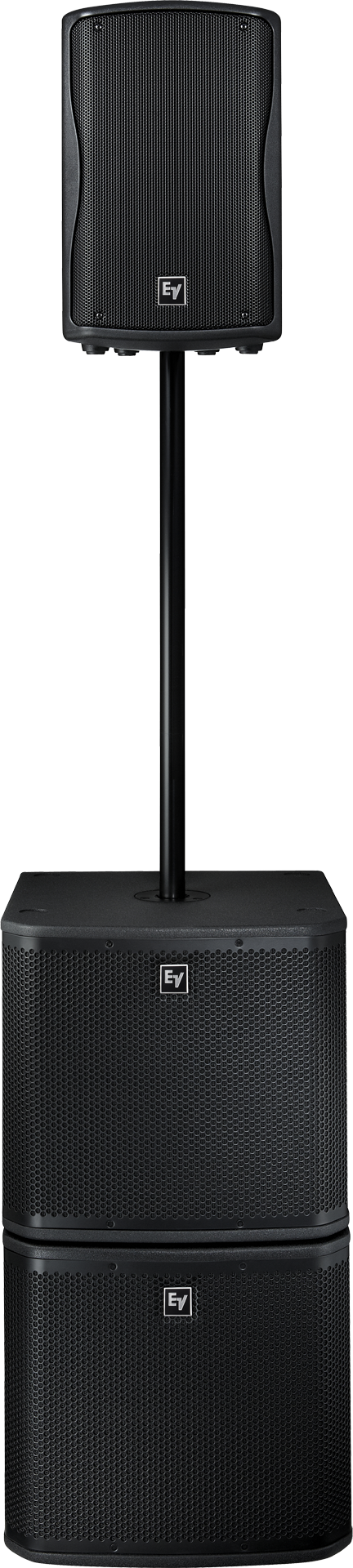

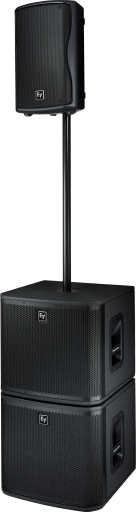

- Built-in pole mount
- Lightweight (< 20 lbs) with integral handle for easy carrying
Electro-Voice engineers have raised the bar for portable sound once again, adding to the award-winning ZX loudspeaker family with the new ZXA1 – the self-powered version of the best-selling ZX1 compact two-way loudspeaker. ZXA1 is powered by an 800 watt amplifier module derived from EV’s world-tour-class Tour Grade series – amplifiers with audio quality and reliability proven at the very highest levels.
Specifications
| Freq. Response (-3dB) | 60Hz-20kHz¹ |
| Freq. Range (-10dB) | 48Hz-20kHz¹ |
| Max. Measured SPL | 126dB¹, ³ |
Specifications | |
| Coverage (Horiz. x Vert.) | 90° x 50° |
| Power Rating | 800W |
| LF Transducer | (1) EV-8L, 204mm (8") Woofer |
| HF Transducer | DH-2005, 25mm (1") Exit Compression Driver |
| Crossover Frequency | 1.8kHz |

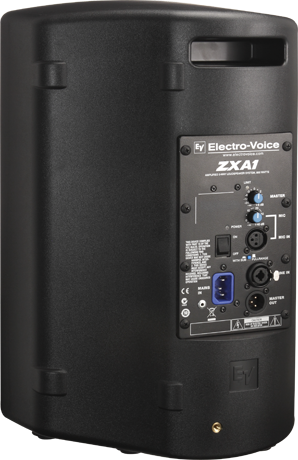

| Connectors | (1) XLR Mic Input with Gain Control, (1) XLR/TRS Combo Jack, (1) XLR Link Output |
| Enclosure Material | ABS |
| Grille | 18GA Steel with Black Powdercoat |
| Mains Requirements | 100V: 80V-110V, 0.7A⁴, 50-60Hz 120V: 95V-132V, 0.6A⁴, 50-60Hz 230V: 190V-264V, 0.4A⁴, 50-60Hz |
| Dimensions (H x W x D) | 457mm x 282mm x 264mm (17.99" x 11.10" x 10.39") |
| Net Weight | 8.6kg (19.0lbs) |
| Shipping Weight | 10.3kg (22.7lbs) |
