EVC 紧凑型固定安装扬声器

紧凑型固定安装扬声器

高度灵活

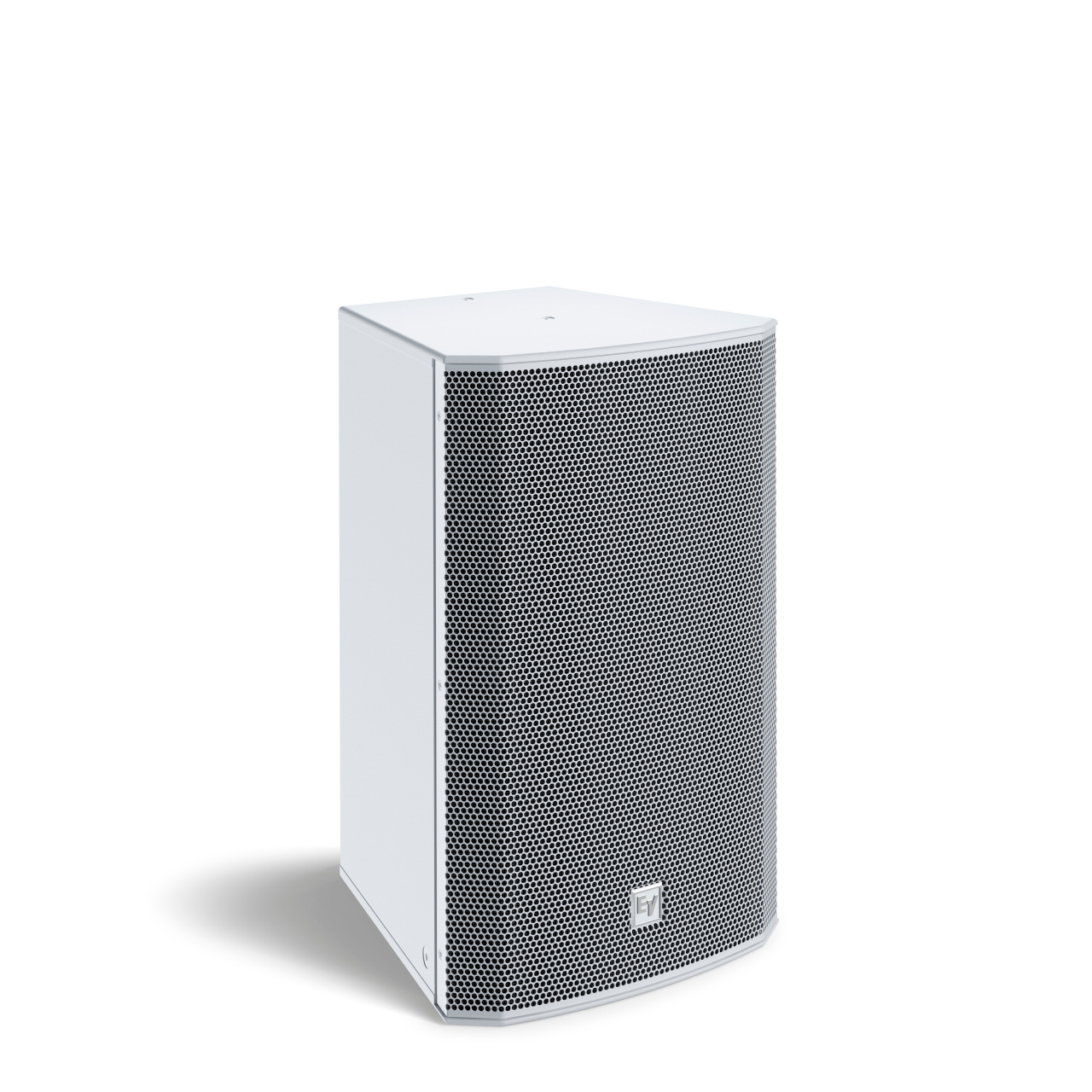

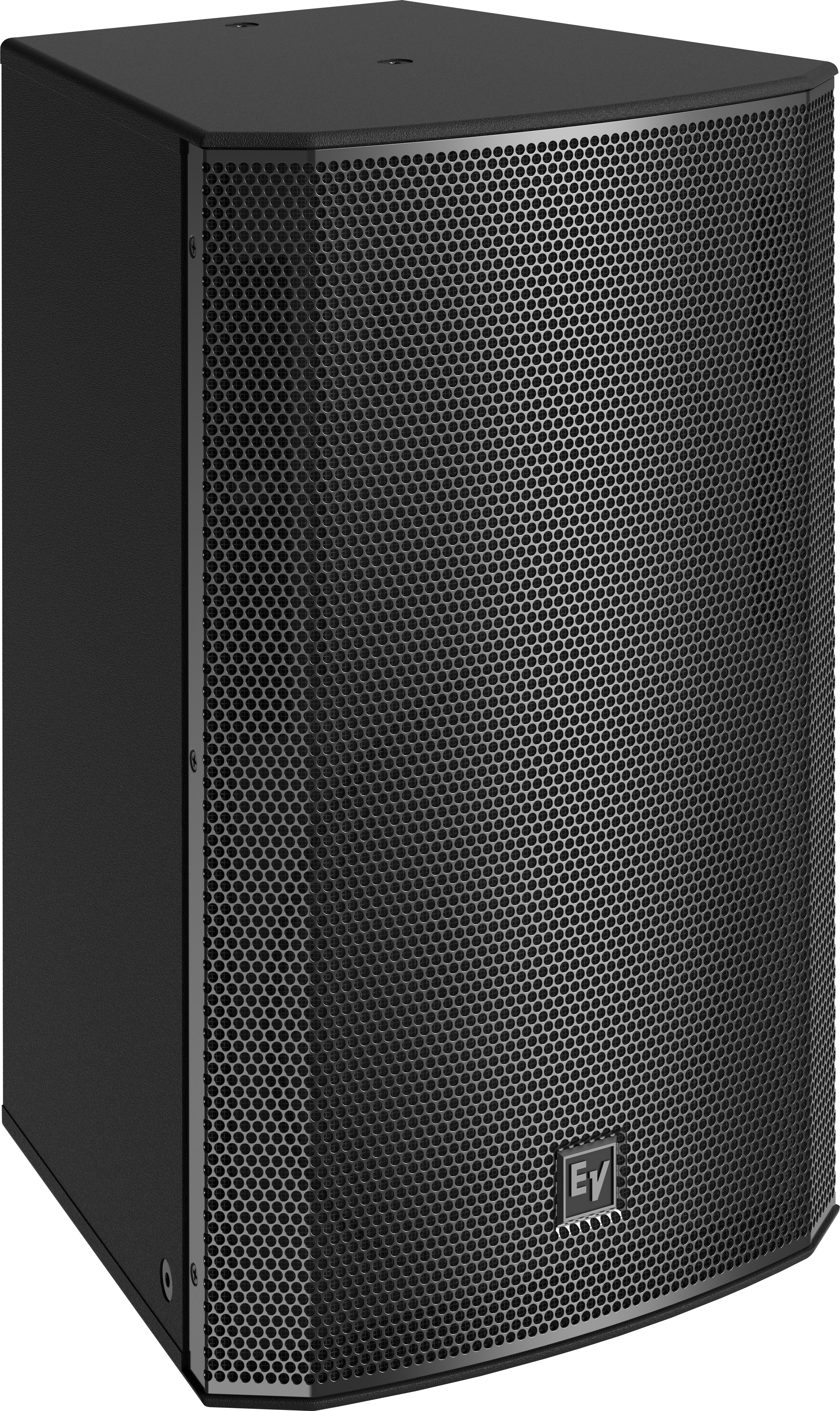

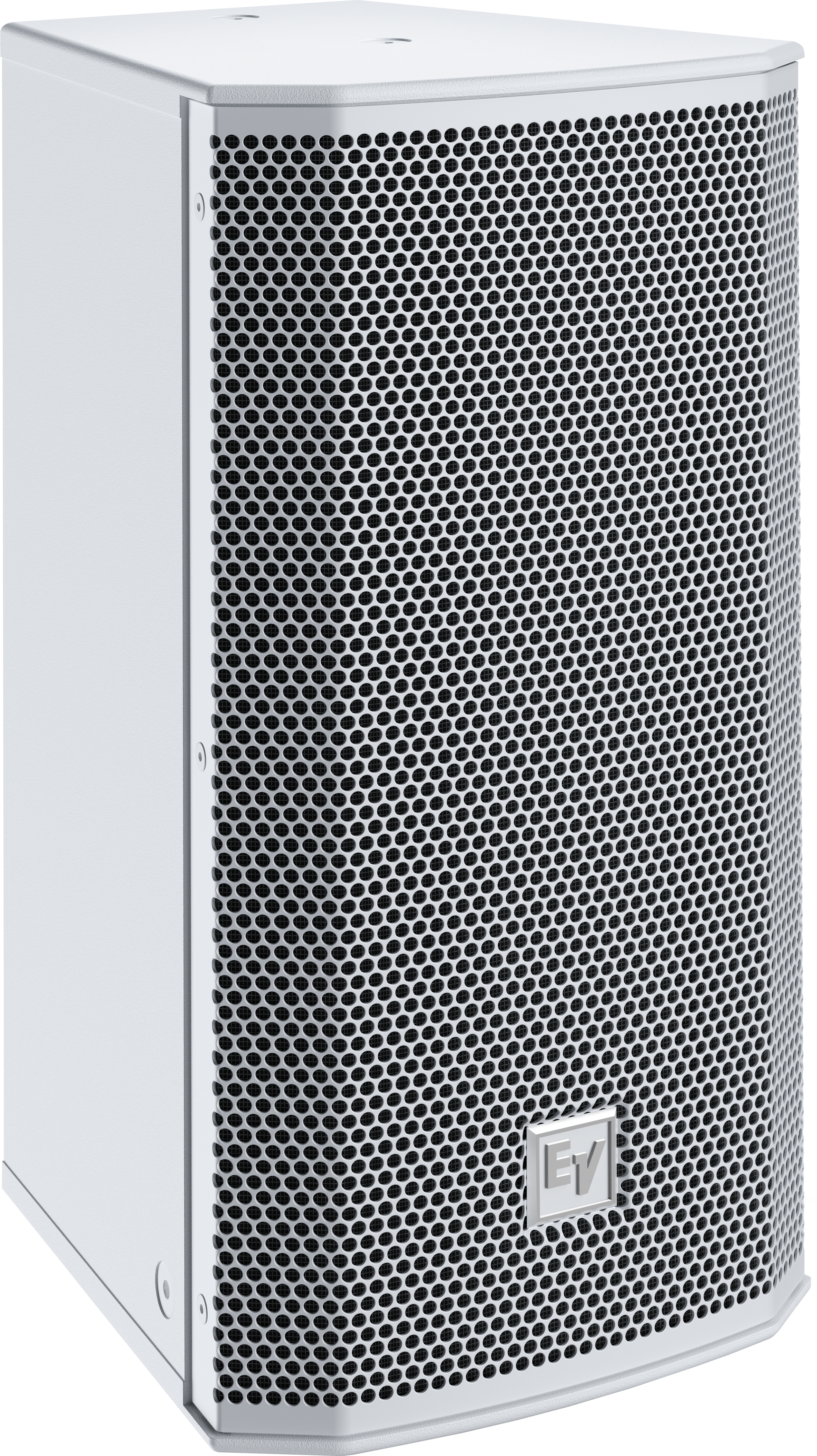

拥有黑白双色的五种基本型号，是各类室内外扩声应用环境的理想选择。
先进技术

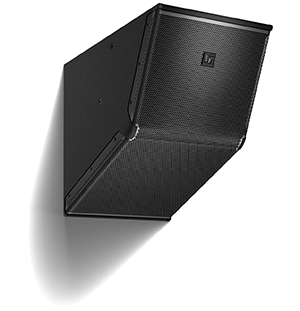

所有型号均可实现自动饱和度补偿；另有一款可变强度（VI）型号。
EV-Innovation家族成员
具有与家族相似的音色与外观，安装配件及输入面板均可匹配。
适用于教堂与企业场所的高清晰度
输出能力可满足小型俱乐部的需求

Electro-Voice旗下EV-Innovation家族提供全面固定安装扬声器解决方案，家族新成员EVC系列旨在以更可靠的性能、更优惠的价格为中小规模场所提供出色音效。

EVC系列旨在提供优于其它同类产品中的全方位表现，具有安装人员所需的所有格式和功能，并且价位均能依据预算或场地规模扩展系统。

了解更多

声学和美观方面均能匹配所有EV-Innovation家族现有系列产品——包括前置负载式（EVF,EVU）、号角式（EVH）、线形阵列（EVA）等型号——前置负载式EVC型号结构紧凑、性价比高、用途广泛。

EVC的两分频扬声器安装合理且价位远低于EVF，填补了家族产品空缺，同时其音效能与其他EV-Innovation型号形成互补。

自动饱和度补偿（ASC）——安装人员可使用EV的TK-150音频变压器最大化由功放传输到扬声器的音频信号，同时音质不会受损。ASC可以防止变压器饱和，保证音质与低频性能，同时保护系统电子装置。ASC为所有型号的标准配置。

产品

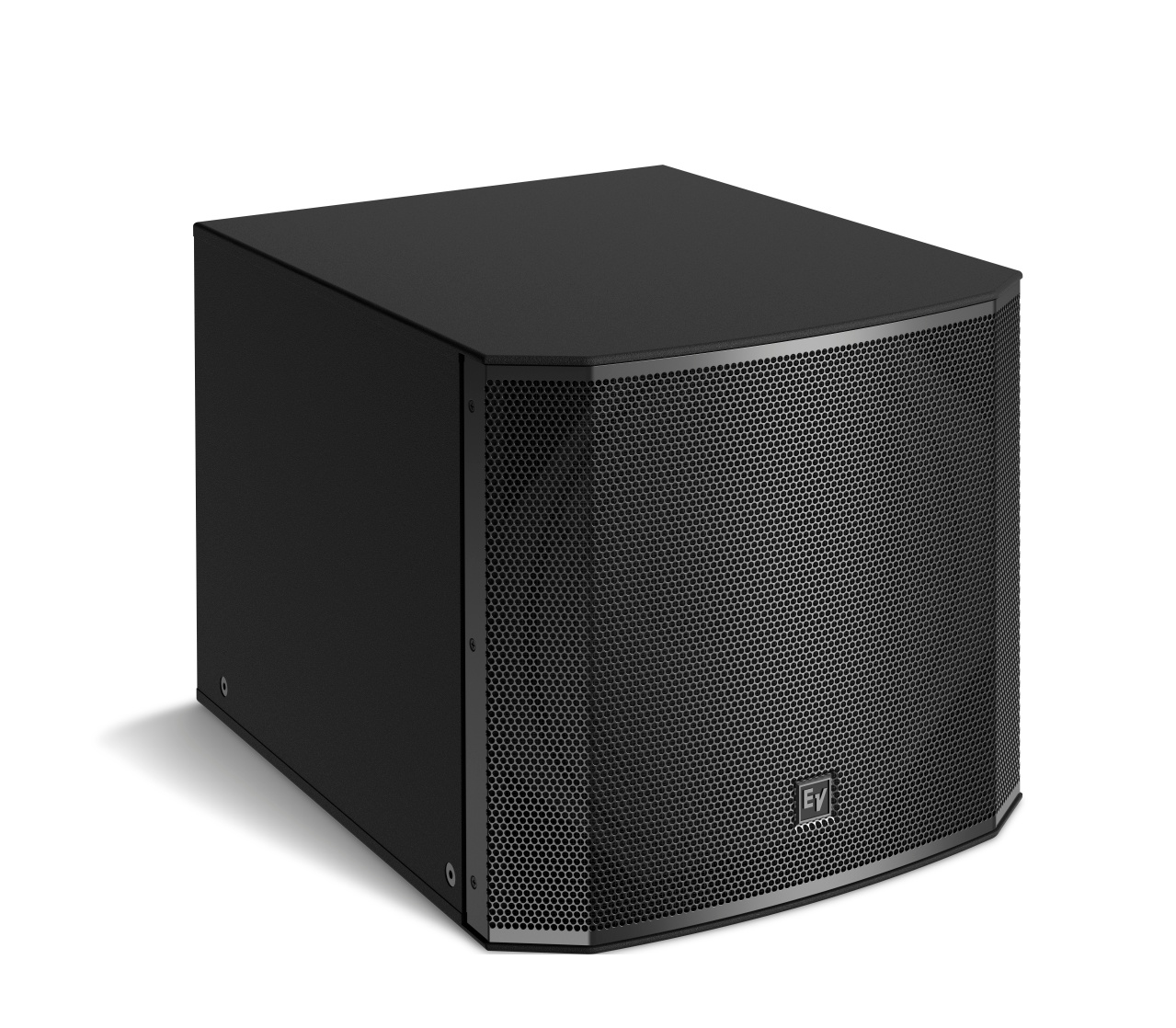

	EVC-1082-00 8" speaker 100x100	EVC-1082-96 8" speaker 90x60	EVC-1122-64 12" speaker 60x45	EVC-1122-95 12" speaker 90x55	EVC-1122-VI 12" speaker, vari-intense indoor	EVC-1122-VI EN54 12" speaker, vari-intense indoor en54	EVC-1152-64 15" speaker 60x45	EVC-1152-95 15" speaker 90x55	EVC-1181S 18" subwoofer
Max Calculated SPL	120	120	126	126	126		129	129	129
Rotatable coverage	100° x 100°	90° x 60°	60° x 45°	90° x 55°			60° x 45°	90° x 55°
频响范围（- 10分贝）	55Hz-25	55Hz-25	50Hz-25	50Hz-25	50Hz-25		50Hz-25	50Hz-25	30Hz-135
悬架	eight M10 Suspension Points, optional U Bracket or pan/tilt wall mount	eight M10 Suspension Points, optional U Bracket or pan/tilt wall mount	eight M10 Suspension Points, optional U Bracket or pan/tilt wall mount	eight M10 Suspension Points, optional U Bracket or pan/tilt wall mount	eight M10 Suspension Points, optional U Bracket or pan/tilt wall mount		eight M10 Suspension Points, optional U Bracket or pan/tilt wall mount	eight M10 Suspension Points, optional U Bracket or pan/tilt wall mount	four M10 inserts
最小阻抗	6	6	7	7	7		6.7	6.7	6.3
高频传感器	DH-2005	DH-2005	DH-3	DH-3	DH-3		DH-3	DH-3
Frequency Response (-3 dB)¹	75Hz-20k	75Hz-21k	70Hz-20k	70Hz-22k	70Hz-20k		70Hz-20k	70Hz-21k	38Hz-95k
低频传感器	EVS-2008	EVS-2008	EVS-12M	EVS-12M	EVS-12M		EVS-15M	EVS-15M	EVS-18L
Grille	18 GA cold-rolled steel with rotatable logo (18 GA stainless steel with hydrophobic cloth on PI models)	18 GA cold-rolled steel with rotatable logo (18 GA stainless steel with hydrophobic cloth on PI models)	18 GA cold-rolled steel with rotatable logo (18 GA stainless steel with hydrophobic cloth on PI models)	18 GA cold-rolled steel with rotatable logo (18 GA stainless steel with hydrophobic cloth on PI models)	18 GA cold-rolled steel with rotatable logo (18 GA stainless steel with hydrophobic cloth on PI models)		18 GA cold-rolled steel with rotatable logo (18 GA stainless steel with hydrophobic cloth on PI models)	18 GA cold-rolled steel with rotatable logo (18 GA stainless steel with hydrophobic cloth on PI models)	18 GA cold-rolled steel with rotatable logo (18 GA stainless steel with hydrophobic cloth on PI models)
净重	11.2	11.2	20.3	20.3	21.8		25	25	32.6
装船重量	12.7	12.7	22.7	22.7	24.4		27.7	27.7	36.5
Rec. high-pass frequency, 4th Order	50 Hz for 8Ω (50 Hz with TK-150 transformer)	50 Hz for 8Ω (50 Hz with TK-150 transformer)	45 Hz for 8Ω (50 Hz with TK-150 transformer)	45 Hz for 8Ω (50 Hz with TK-150 transformer)	45 Hz for 8Ω (50 Hz with TK-150 transformer)		40 Hz for 8Ω (50 Hz with TK-150 transformer)	40 Hz for 8Ω (50 Hz with TK-150 transformer)	35 Hz for 8Ω (40 Hz with TK-150 transformer)
Dimensions (H x W x D)	492 x 248 x 277	492 x 248 x 277	616 x 395 x 401	616 x 395 x 401	528 x 411 x 648		684 x 433 x 451	684 x 433 x 451	503 x 554 x 718
标称阻抗	8	8	8	8	8		8	8	8
Enclosure	15mm weather-resistant plywood with EV Coat	15mm weather-resistant plywood with EV Coat	15mm weather-resistant plywood with EV Coat	15mm weather-resistant plywood with EV Coat	15mm weather-resistant plywood with EV Coat		15mm weather-resistant plywood with EV Coat	15mm weather-resistant plywood with EV Coat	15mm weather-resistant plywood with EV Coat
轴向灵敏度(SPL, 1 W @ 1 m)	91	91	95	95	95		98	98	97
Color	黑色白色	黑色白色	黑色白色	Black or white	Black or white		黑色白色	黑色白色	黑色白色
Passive crossover frequency	1.8	1.8	1.6	1.6	1.6		1.6	1.6
功率（连续/峰值）	200/400/800	200/400/800	300/600/1200	300/600/1200	300/600/1200		350/700/1400	350/700/1400	400/800/1600
Connectors	Dual four-pin 10 AWG (6 mm) Phoenix/Euro Block screw-terminals	Dual four-pin 10 AWG (6 mm) Phoenix/Euro Block screw-terminals	Dual four-pin 10 AWG (6 mm) Phoenix/Euro Block screw-terminals	Dual four-pin 10 AWG (6 mm) Phoenix/ Euro Block screw-terminals	Dual four-pin 10 AWG (6 mm) Phoenix/Euro Block screw-terminals		Dual four-pin 10 AWG (6 mm) Phoenix/Euro Block screw-terminals	Dual four-pin 10 AWG (6 mm) Phoenix/Euro Block screw-terminals	Dual four-pin 10 AWG (6 mm) Phoenix/Euro Block screw-terminals
环境规格	IEC 60529, IP44 (IP55 for PI versions)	IEC 60529, IP44 (IP55 for PI versions)	IEC 60529, IP44 (IP55 for PI versions)	IEC 60529, IP44 (IP55 for PI versions)	IEC 60529, IP44 (IP55 for PI versions)		IEC 60529, IP44 (IP55 for PI versions)	IEC 60529, IP44 (IP55 for PI versions)	IEC 60529, IP44 (IP55 for PI versions)
	更多	更多	更多	更多	更多	更多	更多	更多	更多

Show more specs
