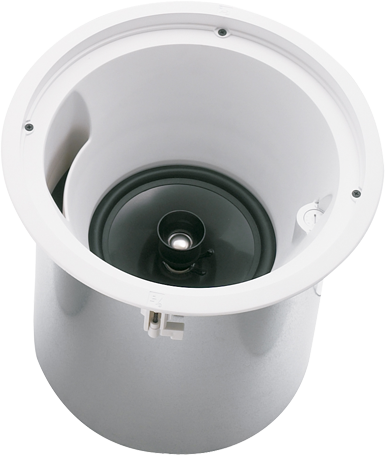

EVID C8.2HC

Evid 8“双路覆盖角控制吸顶系统

  • 适用于高天花及混响“问题”房间;独有的气门、波导式耦合;8“驱动器;四点安装系统;自带安装环和导轨;对于大多数安装,无需额外配件;设计正在申请专利

EVID C8.2HC是双路吸顶扬声器系统,可控制覆盖角,是高天花及混响“问题”房间的理想之选。独有的波导式耦合。8“驱动器使得声音格外清晰。

Specifications

Frequency Range (-10 dB)50 - 20000
WeatherizedNo
HF Transducer1-inch (25 mm) Ti Mylar Laminate Dome
Speaker TypePorted cabinet, internally damped, two-way (passive crossover included)
LF Transducer8-inch polypropylene cone plus waveguide
System Power Handling (Continuous/Program/Peak)100

Power Rating300
Enclosure MaterialSteel enclosure and UL94V-0 rated baffle and bezel
GrillePowder-coated steel
Sensitivity 1 W/1 m93
Available ColorWhite (paintable surface)
Height303
Weight Net6
Chassis Size203.2
Diameter (Max)320
Transformer Taps (Transformer Version Only)(7.5 - 70 V only), 15, 30, 60
TransformerYes
Input Formats8ω, 70 V, 100 V
Coverage (Nominal -6 dB)75
Mounting SystemsIntegrated 3-point toggle anchors
Regulatory ApprovalsUL1480; UL2043
