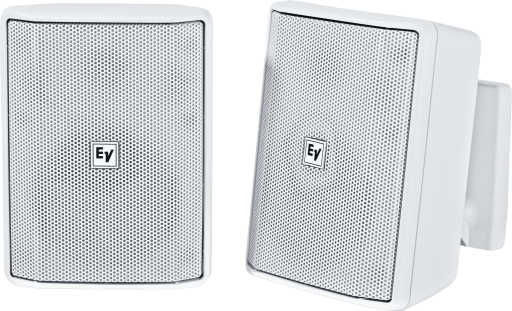

EVID-S4.2T
4” 面装定压扬声器(对)
- 内含创新的安装系统,安装快速简单且可靠;
- 精心设计,可用于室外环境(IP54),同时不影响性能;
- 远投4"(102毫米)的低音扬声器内置于防火级ABS塑料制成的箱体中,将低频性能拓展至75Hz;
Electro-Voice的EVID-S4.2T是一款高性能的两分频4" (102 mm) 全频墙面安装扬声器,具有宽阔且一致的覆盖,性能出色。专为背景/前景音乐、传呼及扩声应用设计,是餐馆、酒吧、露台、零售环境、健身俱乐部、酒店、主题公园、休闲场地等室内外场所的理想之选。EVID-S4.2T安装极为简便,防风雨性强,外观时尚精致,安装选项也很灵活,是各种表面安装应用的完美解决方案。内含Electro-Voice独创的安装系统,使得每次安装都快速简单,且十分可靠。该安装系统可水平旋转90度,垂直旋转45度,可以轻松地安装在墙壁和天花板上。安装系统已预先组装好,可直接使用,简化工作流程。EVID-S4.2T使用15W变压器,可选功率3.7W(限70V线路)、7.5W或15W(70V或100V线路)。可通过扬声器背面输入面板上的Euroblock接口选择线路。EVID-S4.2T经过精心设计,可抵御室外的极恶劣气候,同时不会损耗其室内应用性能。该全频扬声器的防风雨等级通过IP54认证,此外其箱体和面网也具有出色的抗日晒、盐分和水分性能。所有的EVID-S型号均可选黑色或白色,且可以轻松上漆以匹配装潢颜色。另外还有变压器版本,可适用于恒定电压系统。EVID系列墙面安装扬声器种类多样,可作为一个完整的系统在多种不同的墙面安装结构中运作,同时也可与EVID系列的其他天花板和墙面嵌装扬声器组合使用。
Specifications
Frequency Range (-10 dB) | 75 Hz – 20 k |
Weatherized | Yes |
HF Transducer | 0.75 inch (20 mm) |
产品规格 |
Frequency Response (-3 dB)¹ | 100 Hz – 20 k |
Max. SPL/1m (calc)² | 104.5 |
Coverage (Nominal -6 dB) H | 110 |
LF Transducer | 4 inch (102 mm) |
Coverage (Nominal -6 dB) V | 110 |
Power Rating | 60 |
Connector Type | Captive screws on wall bracket. Max. wire size 12AWG (2.5mm). |
Sensitivity 1 W/1 m | 86.5 |
Available Color | 黑色白色 |
Recommended High-Pass Frequency | 70 |
Depth | 118 |
Weight Net | 1.8 |
Shipping Weight | 5.4 |
Environmental Specs | IP54 (per IEC-60529) |
Power Handling (Continuous / Peak) | 15 W/60 |
Transformer | 70V/100V (15W) |
