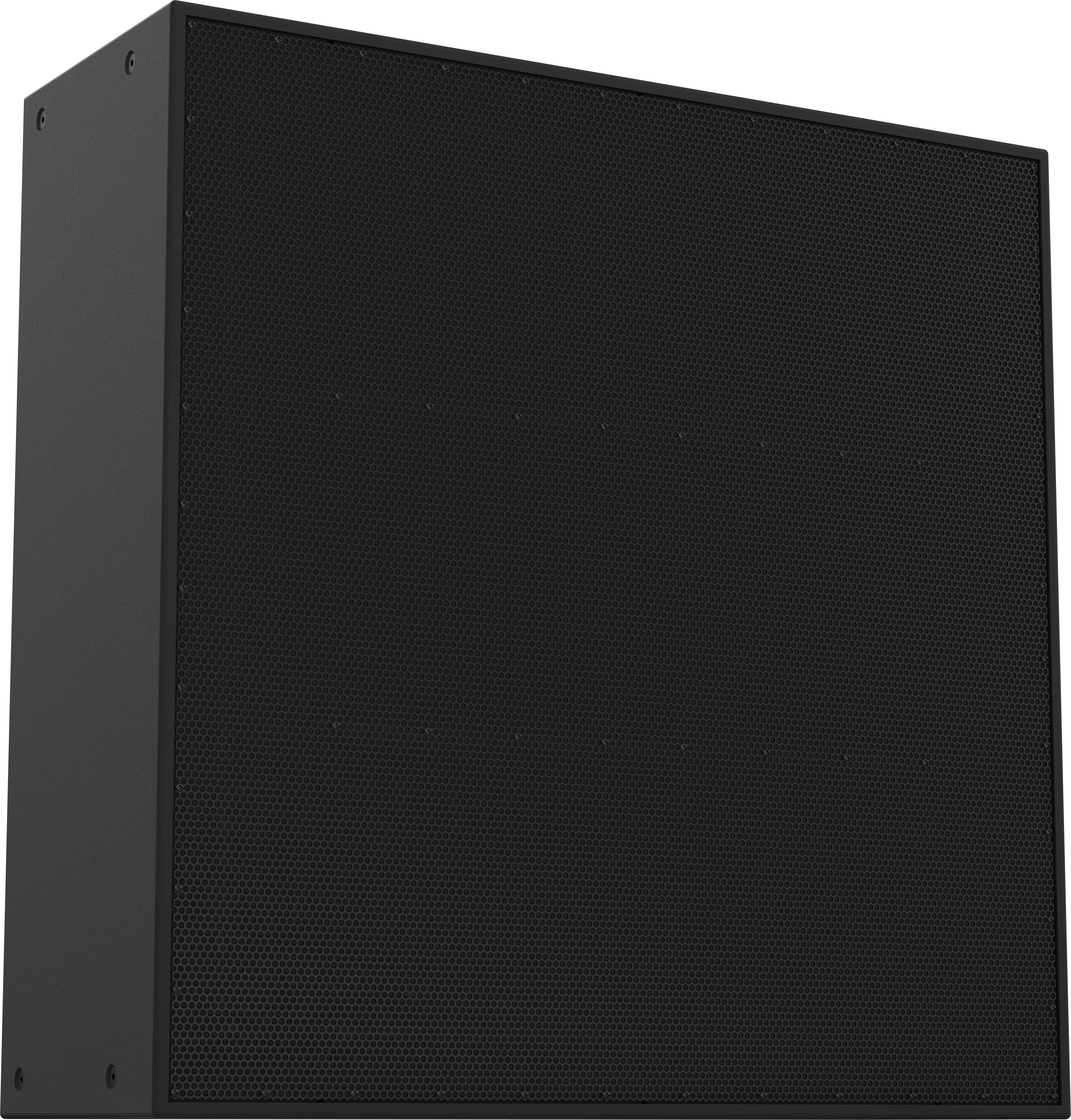

Each MTS model is equipped with four 15" woofers and dual coaxial mid/high frequency compression drivers. The system is capable of generating more than 151 dB peak SPL with exact directivity for very-long-throw applications.
MTS represents a truly holistic approach to loudspeaker design. Loudspeaker geometry, complementary amplifier matching, and digital processing are computer-optimized to ensure precisely distributed SPL that remains balanced and controlled throughout the entire coverage area – even at full output. Four slot-loaded, high efficiency low-frequency drivers are symmetrically coupled to the same full-range waveguide as the compression drivers to create a true point-source with substantial bass response, eliminating the need for additional subwoofers in many applications.
The MTS series includes sixteen unique models. These are based on two standard three-way configurations (MTS-4153) with 60° x 40° or 40° x 30° coverage, and two cardioid configurations (MTS-6154) that provide the same coverage patterns with enhanced low-frequency directional control. The 60° x 40° models can deliver extremely high SPLs: 151 dB peak (music) and 154 dB peak (speech) down to 55 Hz at -10 dB; the 40 x 30 models are capable of 152 dB peak (music) and 155 dB peak (speech) down to 50 Hz at -10 dB. Each version is available with black or white finish, and each is available in a partially weatherized (PW) version for sheltered use or in a fully weatherized (FW) version for full exposure to the elements. All MTS loudspeakers have an IP55 rating, indicating that they are highly impervious to dust and water ingress.
Downloads
Name | Language & Download |
---|---|
MTS-4153 43FWB Engineering Data Sheet | en |
MTS-4153 43FWW Engineering Data Sheet | en |
MTS-4153 43PWB Engineering Data Sheet | en |
MTS-4153 43PWW Engineering Data Sheet | en |
MTS-4153 64FWB Engineering Data Sheet | en |
MTS-4153 64FWW Engineering Data Sheet | en |
MTS-4153 64PWB Engineering Data Sheet | en |
MTS-4153 64PWW Engineering Data Sheet | en |
MTS-6154 43CFWB Engineering Data Sheet | en |
MTS-6154 43CFWW Engineering Data Sheet | en |
MTS-6154 43CPWB Engineering Data Sheet | en |
MTS-6154 43CPWW Engineering Data Sheet | en |
MTS-6154 64CFWB Engineering Data Sheet | en |
MTS-6154 64CFWW Engineering Data Sheet | en |
MTS-6154 64CPWB Engineering Data Sheet | en |
MTS-6154 64CPWW Engineering Data Sheet | en |
Name | Language & Download |
---|---|
MTS Series - Engineered to Amaze | Download |
